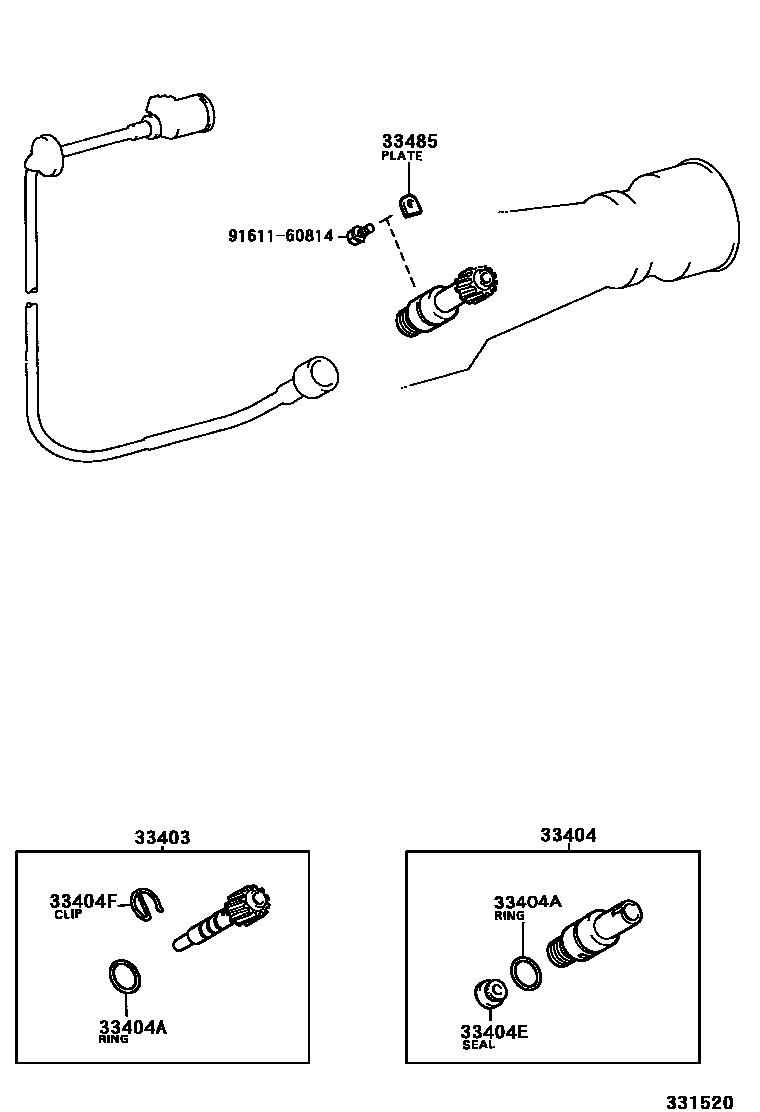

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1 0004 1

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29125iRZN200200106

N=32,MARK 32:10

main33403-29145iRN8#,90..V199408-199708

N=31,MARK 31:10

main33403-39295iLN80,85,RN85..(DSL,EFI)..GEN199108-199408

N=18,MARK 18:6

main33403-39305iRN85,90..5F..ARL;LN81,86,YN81,86..5F199108-199408

N=19,MARK 19:6

main33403-39315iLN80,85..GEN199108-199408

N=20,MARK 20:6

main33403-39315iLN80,85..GEN199108-199408

N=20,MARK 20:6,W(185R14C TIRE)

main33403-39315iYN81,86199208-199408

N=20,MARK 20:6,W(195R15 TIRE)

main33403-39325iYN80,85,90..TH199303-199408

N=21,MARK 21:6

main33403-39335iYN85..5F..GEN199108-199408

N=22,MARK 22:6,W(185R14C TIRE)

main33403-39335iYN85..ARL199208-199408

N=22,MARK 22:6

main33403-39355iRN8#,90..V199108-199408

N=31,MARK 31:10

main33482-26030iYN85..ARL198808-199008

W(6.50-14 TIRE)

main33482-26030iYN80,85..4F..(GEN,TH)198808-199108

main33482-29035iYN85..5F198808-199708

N=22,MARK 22:6,W(185R14C TIRE)

main33482-29035iYN85..ARL;RN85..LHD..IV3199408-199709

N=22,MARK 22:6

main33482-29045iYN80,85..4F199408-199909

N=19,MARK 19:5,W(185R14C TIRE)

main33482-29055iYN80,85..4F..(GEN,TH)198808-199303

N=17,MARK 17:5

main33482-29055iYN80,85..4F..GEN198808-199208

N=17,MARK 17:5,W(6.50-14 TIRE)

main33482-39025iRN85,90..5F..ARL;LN81,86,YN81,86..5F198808-200106

N=19,MARK 19:6

main33482-39035iYN85;RN85..EFI199408-199909

N=21,MARK 21:6

main33482-39035iYN81,86,87..GEN,V198808-199108

N=21,MARK 21:6,W(185R14C TIRE)

main33482-39045iYN85..5F..GEN;RN85..RHD..GEN;LN80,85,9#..5F..TH;RN85,YN92..LHD..CBR..GEN..CBU198808-199909

N=20,MARK 20:6

main33482-39045iLN80,85..MTM..GEN198808-199909

N=20,MARK 20:6,W(185R14C TIRE)

main33482-39045iYN81,86..V199408-199708

N=20,MARK 20:6,W(195R15 TIRE)

main33482-39085iYN80,85..4F..GEN198808-199408

N=18,MARK 18:5,W(185R14C TIRE)

main33482-39085iYN85..ARL198808-199208

N=18,MARK 18:5

main33482-39135iLN8#..MTM..GEN198808-199909

N=18,MARK 18:6

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-22010iRZN200199408-199708

main33404-35010iLN200198808-200106

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iLN8#,9#,YN8#,9#..MTM;RN85,90..5F..(ARL,GEN)198808-200106

main96711-24030iRN8#,90..V199408-199708

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLN8#,90,RN125,8#,90,YN8#,92..MTM198808-200106

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iLN8#,9#,RN125,8#,90,YN8#,9#..MTM198808-200106

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iLN8#,90,RN125,8#,90,YN8#,92..MTM198808-200106

9161160814

main91611-60814

7 parts on this diagram · 2 diagrams in section
