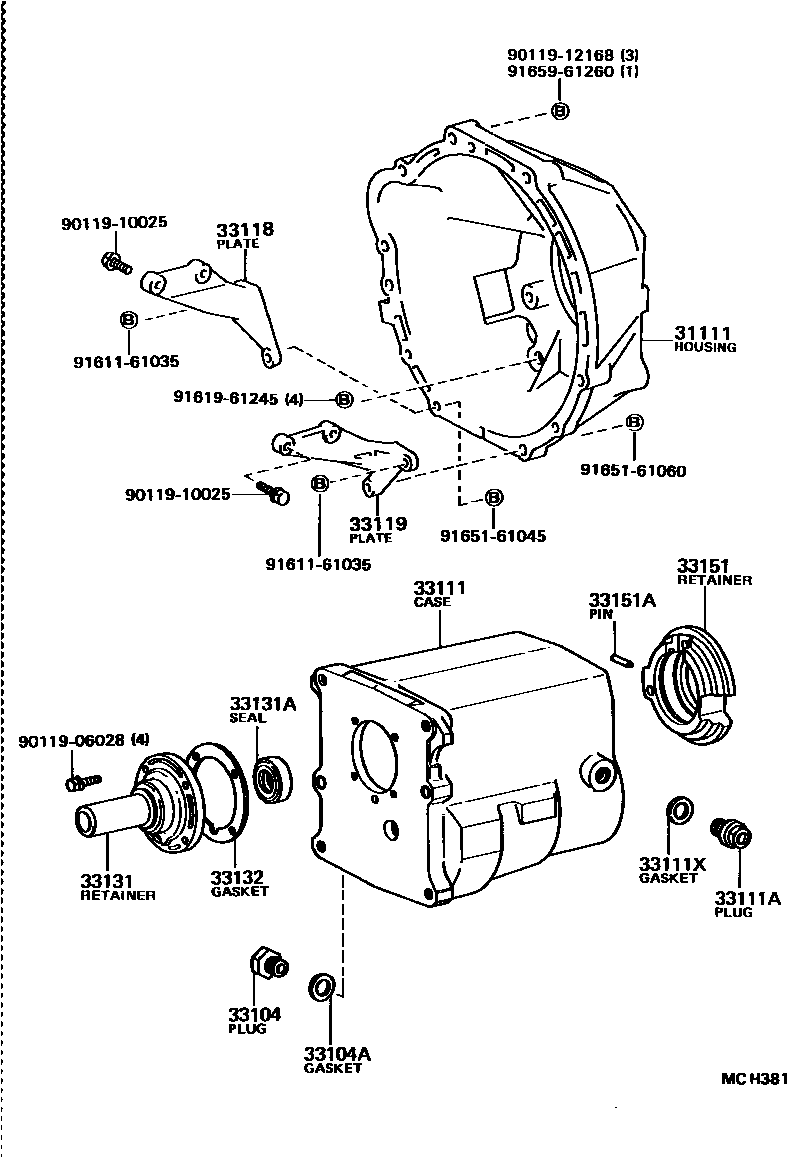

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1L# 0002 1G5# 0003 1G# 0006 1G# 0007 1W# 0008 1W# 0009 1G5# 0012 1W#

31111HOUSING, CLUTCH

main31111-0W050iLN91199701-199806

PHILLIPINES SPEC

sub31111-22114

main31111-20171iRN125,8#,90..MTM198808-199908

main31111-22112iLN8#,90..MTM198808-198912

sub31111-22113

main31111-22113iLN8#,90..MTM198912-199006

sub31111-22114

main31111-22114iLN200199006-200412

main31111-26032iRZN200200106-200412

main31111-28010iYN80,85..4F198808-199408

main31111-28011iYN80,85..4F199008-199108

sub31111-28010

main31111-30180iYN81,86,87,92;YN85..5F..(ARL,GEN)198808-199908

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iRZN200199408-200412

main90341-18057iLN8#,90,RN125,8#,90,YN8#,9#..MTM198808-200412

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iYN80..4F;YN85..4F..TH;YN85..ARL,GEN;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM198808-200412

33111CASE, MANUAL TRANSMISSION

main33101-30070iRN8#,90..V199108-199503

main33101-30071iRN8#,90..V199503-200412

main33101-35050iLN200198808-200412

sub33101-35051

main33111-35031iYN80,85..4F198808-199408

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iRN8#,90..V199108-199408

main90341-18006iLN8#,90,RN125,8#,90,YN8#,92..MTM198808-200106

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iLN86198808-200106

33118PLATE, STIFFENER, RH(MTM)

main33118-22030iRN8#,90..5F198808-199909

main33118-25020iLN8#,9#..MTM198808-200106

main33118-26011iRZN200200106

main33118-28010iYN8#,9#198808-199909

33119PLATE, STIFFENER, LH(MTM)

main33119-22022iRN8#,90..5F198808-199909

main33119-25020iLN200198808-200106

main33119-26021iRZN200200106

main33119-28010iYN8#,9#198808-199909

33131RETAINER, BEARING, FRONT(MTM)

main33131-20050iYN80,85..4F198808-199408

main33131-22021iRN8#..V199108-199110

main33131-26020iLN8#,90,RN125,YN81,86,9#..MTM;RN85,90,YN80,85..5F..(ARL,GEN,TH)198808-200412

main33131-30080iRN8#,90..V199110-200412

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30010iYN85..5F;LN8#,90,RN125,8#,90,YN81,86,87,92..MTM198808-199007

sub90311-30014

main90311-30014iLN8#,9#,RN8#,90,YN8#,9#..MTM199007-200412

main90311-30115iRN8#..V199108-199110

main90311-32106iYN80,85..4F198808-199408

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iRN85,90,YN85..5F..(ARL,GEN);LN8#,90,RN125,YN81,86,92..MTM198808-200412

main33132-30030iYN80,85..4F198808-199408

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iRN8#..V199108-199110

main33107-30020iRN8#,90..V199110-199708

main33151-26010iYN80,85..4F198808-199408

main33151-30051iRZN200200106-200412

main33151-35030iLN86198808-200412

33151APIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAINER)

main90254-05005iYN80,85..4F198808-199408

9011906028

main90119-06028

9011910025

main90119-10025

9011912168

main90119-12168

9161161035

main91611-61035

9161961245

main91619-61245

9165161045

main91651-61045

9165161060

main91651-61060

9165961260

main91659-61260

21 parts on this diagram · 8 diagrams in section
