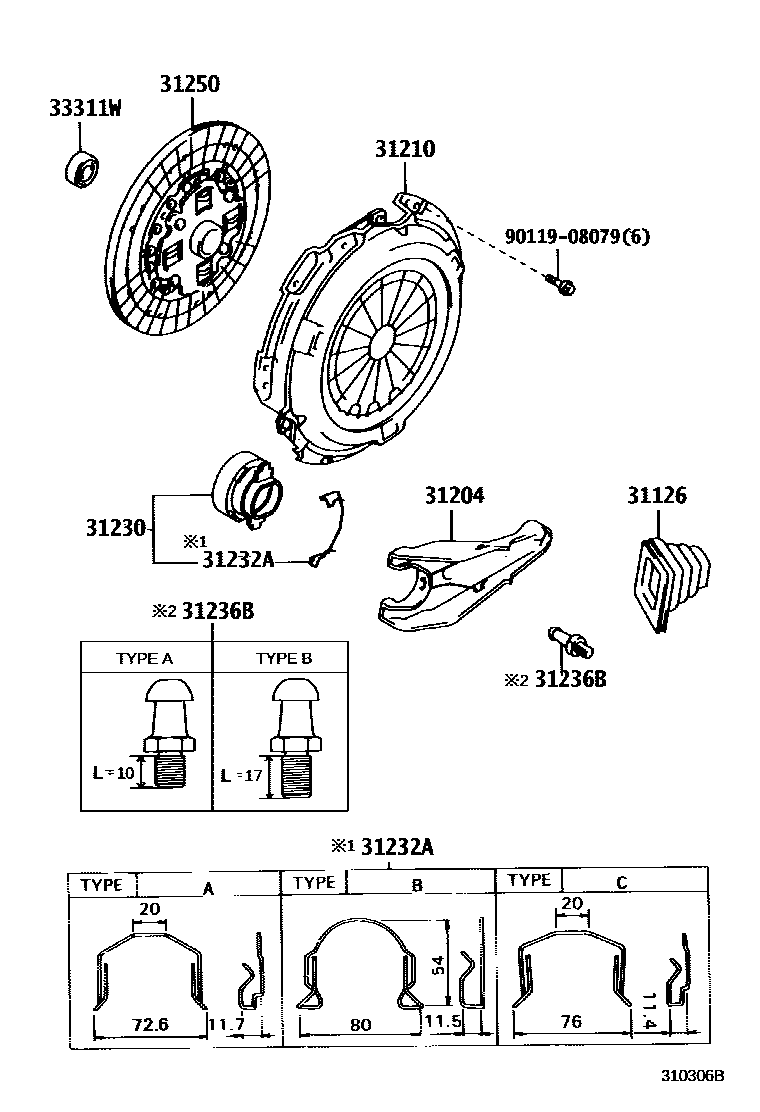

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-0W010iLN91199701-199806

PHILLIPINES SPEC

sub31126-20070

main31126-20060iYN80..4F;YN85..4F..TH;YN85..ARL,GEN;RN125,8#,90,YN81,86,87,92..MTM198808-199908

main31126-20070iLN8#,9#..MTM198808-200412

main31126-26020iRZN200200106-200412

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iYN80..4F;YN85..4F..TH;YN85..ARL,GEN;RN125,8#,90,YN81,86,87,92..MTM198808-200412

main31204-35050iLN86198808-200412

31210COVER ASSY, CLUTCH

main31210-22120iYN80,85,90198812-199909

sub31210-22121

main31210-22170iRN85..EFI199401-199503

sub31210-53040

main31210-26170iRZN200200407-200412

sub31210-26171

main31210-30240iRN125199208-199308

sub31210-30241

main31210-30250iLN80,85,90199110-199208

sub31210-30251

main31210-30251iLN80,85,90..MTM199208-199909

sub31210-35340

main31210-35080iYN80,85198808-198812

sub31210-22120

main31210-35090iLN80,85,90,YN81,86..MTM198808-199708

sub31210-22100

main31210-35100iLN81,86,91,YN87,92..5F198808-199911

sub31210-35101

main31210-35101iLN86199911-200005

sub31210-35102

main31210-35110iRN8#,90..5F..CBR198808-199909

sub31210-53040

main31210-35200iRZN200200106-200407

sub31210-26170

31230BEARING ASSY, CLUTCH RELEASE

main31230-35060iLN81,86,91..5F199008-200106

sub31230-35061

main31230-35061iLN200200106-200412

main31230-35070iLN80,85,90,RN125,8#,90..MTM198808-199908

sub31230-35071

main31230-35090iYN80..4F;YN85..4F..TH;YN85..ARL,GEN;YN81,86,87,92198808-199908

sub31230-35091

main31230-35091iRZN200200106-200412

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLN8#,9#,RN125,8#,90,YN8#,9#..MTM198808-200106

TYPE A:REFER TO ILLUSTRATION

main31232-35020iLN200,RZN200200106-200412

TYPE A:REFER ILLUST.

main31232-35030iLN8#,9#,RN125,8#,90..MTM199008-200106

TYPE B:REFER TO ILLUSTRATION

main31232-35030iLN200200302-200412

TYPE B:REFER ILLUST.

main31232-35040iYN80..4F;YN85..4F..TH;YN85..ARL,GEN;YN81,86,87,92198911-199908

TYPE C:REFER TO ILLUSTRATION

main31232-35040iRZN200200106-200412

TYPE C:REFER ILLUST.

31236BSUPPORT, RELEASE FORK

main31236-26010iLN200200110-200412

TYPE B

main31236-26010iRZN200200109-200412

main31236-30060iLN86198808-200109

main31236-30060iLN200200106-200110

TYPE A

31250DISC ASSY, CLUTCH

main31250-20240iYN8#,92199505-199702

sub31250-20241

main31250-20241iYN8#,92199702-199909

sub31250-20242

main31250-25122iYN8#,9#198808-199505

sub31250-20240

main31250-26230iRZN200200407-200412

sub31250-26231

main31250-35180iRN8#,90..MTM198808-198901

sub31250-14171

main31250-35200iLN80,85,90..MTM198808-199506

sub31250-35201

main31250-35201iLN80,85,90..MTM199506-199812

sub31250-35202

main31250-35202iLN85199812-199909

sub31250-35203

main31250-35220iLN81,86..5F199008-199505

sub31250-35221

main31250-35221iLN81,86,91..5F199505-199906

sub31250-35222

main31250-35222iLN86199906-199911

main31250-35234iRN85..EFI199401-199501

sub31250-35370

main31250-35270iRN8#,90..5F198901-199708

sub31250-35370

main31250-35320iRN125199208-199308

sub31250-35321

main31250-35370iRN85199709-199811

sub31250-35371

main31250-35371iRN85199811-199909

sub31250-35372

main31250-35400iRZN200200106-200407

sub31250-26230

main31250-35410iLN86199911-200005

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLN200198808-200412

sub90363-12024

main90363-12018iRZN200200106-200412

NSK

9011908079

main90119-08079

9 parts on this diagram · 1 diagram in section
