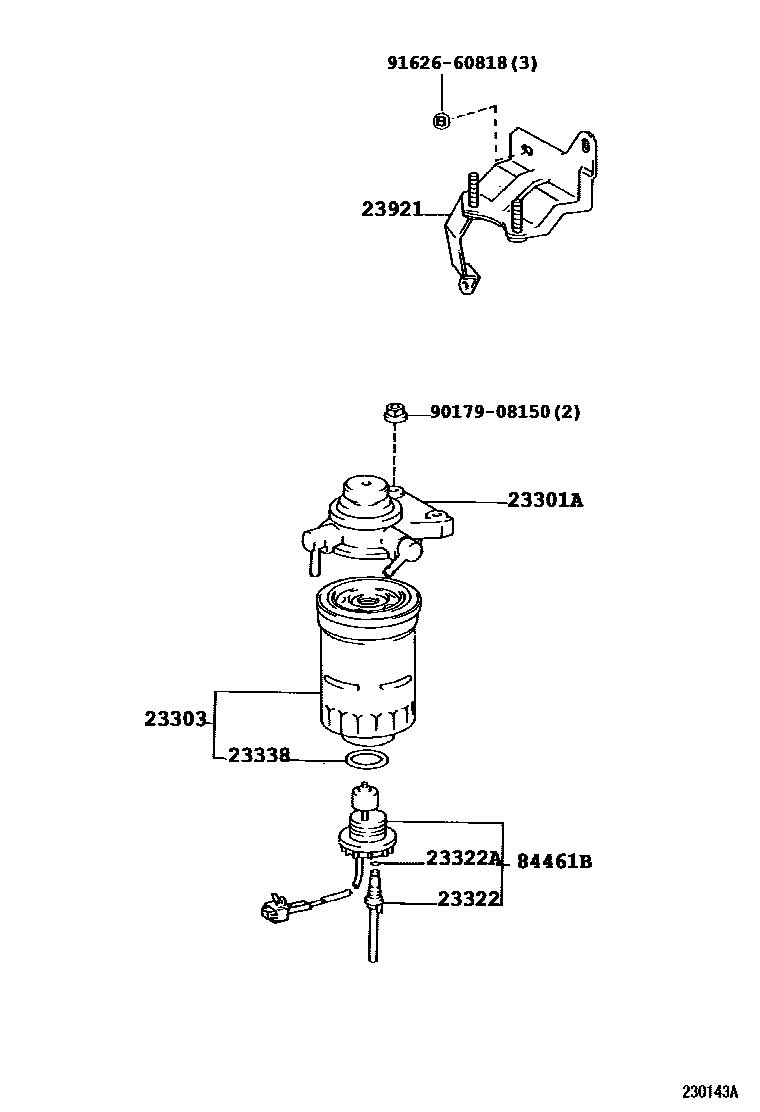

FUEL FILTER

0001 1 0002 1 0003 1 0004 1

23301ACAP ASSY, FUEL FILTER

main23301-54410i2L,3L..LN80,85,86..RHD..(ARL,GEN)198808-199909

main23301-54460i2L,3L..LN81,85,86,90..LHD198808-199905

main23301-54590i2L,3L..LN80,85,9#..RHD..TH199108-199806

main23380-5B230i5L..LN200200106

sub23380-5B231

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2L..LN85..LHD..TH;2L,3L..LN8#..ARL,GEN,V199108-199909

main23303-64020i2L,3L..LN8#,90198808-199201

sub23303-64010

main23390-64480i5L..LN200200106

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i2L,3L..LN8#,90198808-200412

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2L,3L..LN8#,90198808-200412

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2L,3L..LN8#,90198808-199909

23921SUPPORT, FUEL FILTER

main23921-35060i22R..RN8#,90..T1198808-199909

main23921-35100i22R..RN85..RHD..TW1198808-199812

main23921-35110i22R..RN125,85..LHD..(4D,TW1)198808-199909

main23921-54270i2L,3L..LN80,85,86..RHD..(ARL,GEN)198808-199909

main23921-54280i2L,3L..LN81,85,86,90..LHD198808-199704

sub23921-54281

main23921-54281i2L,3L..LN81,85,86..LHD199704-199905

main23921-72010i2Y,3Y,4Y..YN8#,9#198808-199909

84461BSWITCH, LEVEL WARNING

main84461-35050iLN81,85,86,90..LHD198808-200106

sub84461-35130

main84461-35060iLN80,85,90..RHD198808-199909

main84461-35080iLN80,85,9#..RHD..TH199108-199806

main84461-35130iLN200200106-200412

9017908150

main90179-08150

9162660818

main91626-60818

9 parts on this diagram · 4 diagrams in section
