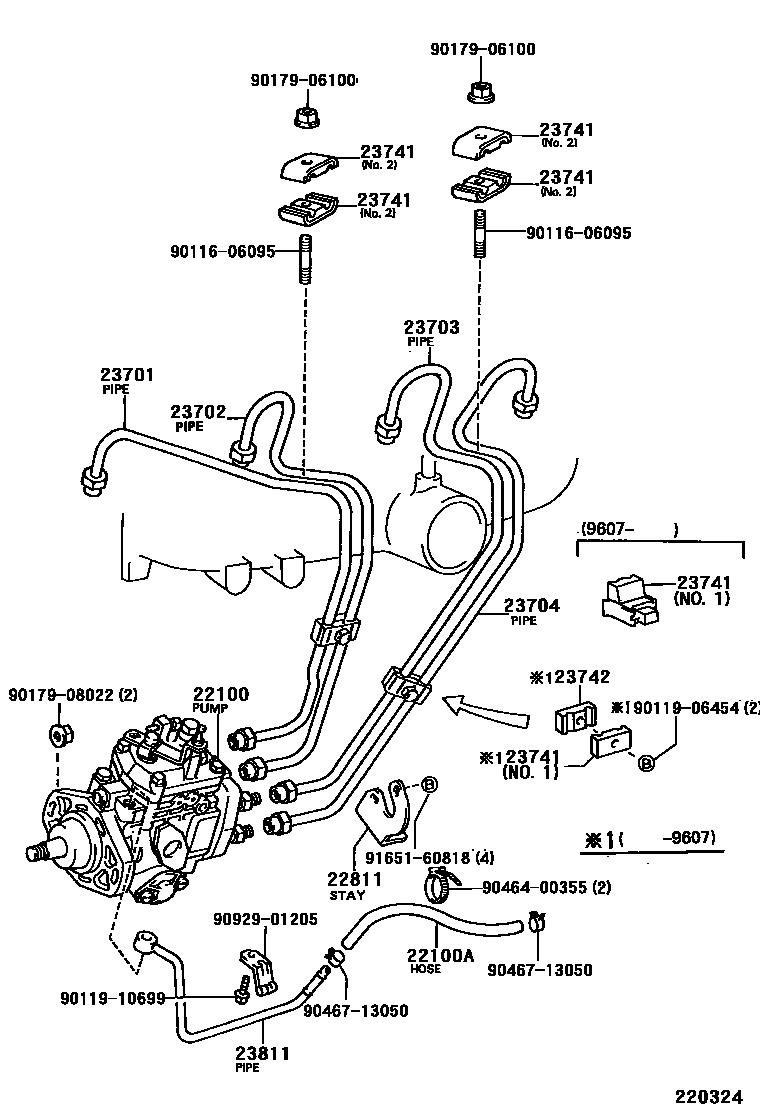

INJECTION PUMP ASSEMBLY

0001 1 0002 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54710i3L..LN86..GEN199703-199911

W/O(HIGH ALTITUDE COMPENSATOR) & W(TACHO METER)

main22100-54770i2L..LN80,85,90..MTM..GEN198808-199909

sub22100-54780

main22100-54770i2L..LN85..RHD..T1..GEN..IV3198808-199108

NEW ZEALAND SPEC

sub22100-54780

main22100-54780i2L..LN85..RHD..T1..IV3;2L..LN85..RHD..TW1..CBU199108-199909

W(TACHO METER) OR W(POWER STEERING) & NEW ZEALAND SPEC

main22100-54780i2L..LN80,85,90..MTM..GEN198808-199909

W(TACHO METER)

main22100-54780i2L..LN80,85,90..5F..(ARL,TH)198808-199806

main22100-54780i2L..LN85..LHD..GEN199208-199708

W(POWER STEERING) OR W(TACHO METER)

main22100-54790i2L..LN85..4FC..ARL198808-199108

main22100-54800i2L..LN80,85,90..MTM..GEN198808-199708

W(HIGH ALTITUDE COMPENSATOR)

sub22100-54810

main22100-54810i2L..LN80,85..GEN199108-199708

W(TACHO METER PICK UP & HIGH ALTITUDE COMPENSATOR)

main22100-54810i2L..LN80,85,90..MTM..GEN198808-199108

W(HIGH ALTITUDE COMPENSATOR & TACHO METER)

main22100-54820i2L..LN85..4FC..GEN198808-198904

W(HIGH ALTITUDE COMPENSATOR)

main22100-54820i2L..LN85..4FC..GEN198904-199108

main22100-54860i3L..LN81,86..5F199008-199708

main22100-54880i3L..LN86..5F..ARL199510-199708

main22100-5B030i3L..LN86..GEN199703-199911

W/O(HIGH ALTITUDE COMPENSATOR)

main22100-5B060i2L..LN85..RHD..4F;2L..LN85..RHD..TW1..GEN198808-199909

HONGKONG SPEC

main22100-5B120i3L..LN86..4FC199108-199511

main22100-5B121i3L..LN86..4FC199511-199708

main22100-5B430i2L..LN85..LHD..5F..GEN..CBU199508-199708

BRAZIL SPEC & W(TACHO METER)

main22100-5B500i2L..LN90..4FC199611-199806

main22100-5B510i3L..LN91199701-199704

main22100-5B530i2L..LN80,85,90..RHD..TH199510-199611

main22100-5B590i2L..LN80,85,90..RHD..5F..TH199611-199806

main22100-5B610i3L..LN86..GEN199703-199911

W(TACHO METER PICK UP & HIGH ALTITUDE COMPENSATOR)

main22100-5B770i2L..LN85..GEN199708-199909

W(TACHO METER PICK UP & HIGH ALTITUDE COMPENSATOR)

main22100-5B790i3L..LN91199704-199806

W(TACHO METER PICK UP SENSOR & AUTOMATIC COLD START DIVICE)

main22100-5B800i2L..LN85..GEN199708-199909

W(HIGH ALTITUDE COMPENSATOR)

main22100-5D130i3L..LN86199911-200106

W(TACHO METER PICK UP & HIGH ALTITUDE COMPENSATOR)

main22100-5D160i3L..LN86199911-200106

W/O(HIGH ALTITUDE COMPENSATOR)

sub22100-5D170

main22100-5D170i3L..LN86199911-200106

W/O(HIGH ALTITUDE COMPENSATOR) & W(TACHO METER)

main22100-5D200i5L..LN200200106-200412

W(HIGH ALTITUDE COMPENSATOR)

main22100-5D220i5L..LN200200106-200412

W/O(HIGH ALTITUDE COMPENSATOR)

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main90447-14062i2L..LN8#,90198808-199909

L=530

main90447-14063i2L,3L..LN81,85,86,90..LHD198810-200106

L=505

22811STAY, INJECTION PUMP, NO.1

main22811-54041i2L..LN85..LHD..TH;2L,3L..LN8#..ARL,GEN,V198808-199804

sub22811-54042

main22811-54042i2L,3L..LN8#,9#199804-200412

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54110i2L..LN8#,90198808-198908

sub23701-54140

main23701-54140i2L,3L..LN8#,9#198908-200412

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54110i2L..LN8#,90198808-198908

sub23702-54140

main23702-54140i5L..LN200198908-200412

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54090i2L..LN8#,90198808-198903

sub23703-54091

main23703-54091i2L..LN8#,90198903-198908

sub23703-54100

main23703-54100i2L,3L..LN8#,9#198908-200412

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54090i2L..LN8#,90198808-198908

sub23704-54100

main23704-54100i2L,3L..LN8#,9#198908-200412

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010i2L,3L..LN8#,90198808-199607

NO.1

main23741-54030i2L,3L..LN8#,9#199607-200106

NO.1

main23741-54030i5L..LN200200106-200412

main23741-56010i2L,3L..LN8#,9#198808-200106

NO.2

23742CLAMP, INJECTION PIPE, NO.2

main23742-54010i2L,3L..LN8#,90198808-199607

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54150i2L,3L..LN8#,90198808-199108

sub23811-54151

main23811-54151i2L,3L..LN8#,90199108-200412

9011606095

main90116-06095

9011906454

main90119-06454

9011910699

main90119-10699

9017906100

main90179-06100

9017908022

main90179-08022

9046400355

main90464-00355

9046713050

main90467-13050

9092901205

main90929-01205

9165160818

main91651-60818

19 parts on this diagram · 2 diagrams in section
