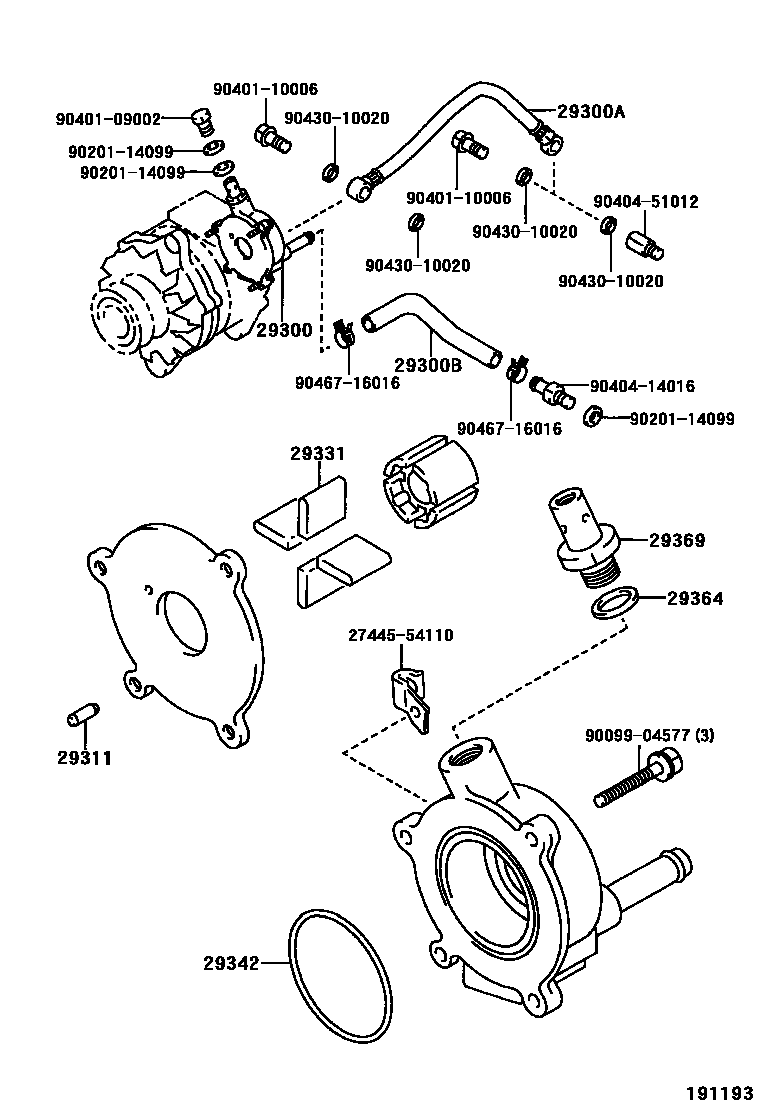

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-54090i2L,3L..LN8#,90198808-199101

main29300-54091i2L,3L..LN8#..ARL,GEN,V199101-200106

main29300-54180i5L..LN200200106

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02077i2L,3L..LN8#,9#198808-200106

main90923-02120i5L..LN200200106-200412

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54030i2L,3L..LN8#,9#198808-200106

main29611-54050i5L..LN200200106

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i2L,3L..LN8#,90198808-200106

29331BLADE, VACUUM PUMP, A

main29331-54130i5L..LN200200106

main29331-56070i2L,3L..LN8#..ARL,GEN,V198808-200106

29342PACKING, VACUUM PUMP

main96740-02063i2L,3L..LN8#,90198808-200106

29364WASHER, VACUUM PUMP

main29364-66010i2L,3L..LN8#,90198808-200106

29369VALVE SUB-ASSY, CHECK

main29369-56070i2L,3L..LN8#,90198808-200106

main29369-64030i5L..LN200200106

2744554110

main27445-54110

9009904577

main90099-04577

9020114099

main90201-14099

9040109002

main90401-09002

9040110006

main90401-10006

9040414016

main90404-14016

9040451012

main90404-51012

9043010020

main90430-10020

9046716016

main90467-16016

17 parts on this diagram · 2 diagrams in section
