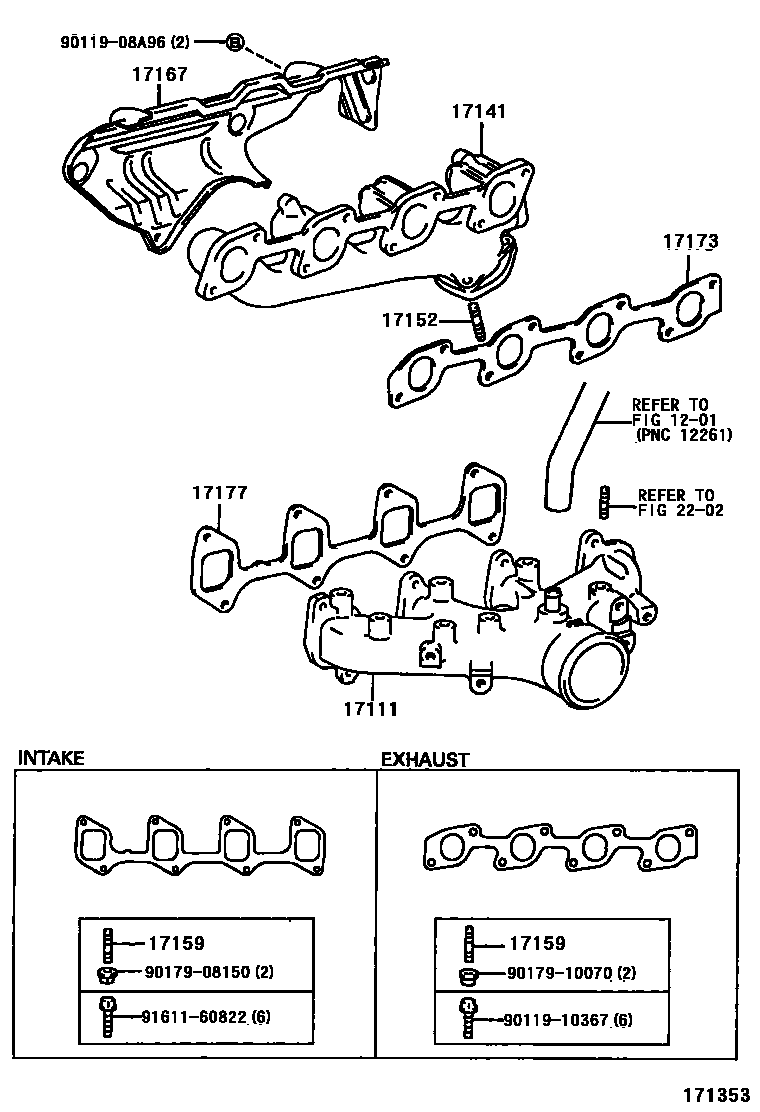

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1201

17111MANIFOLD, INTAKE

main17101-35050i22RE..RN85199401-199909

main17101-54110i2L,3L..LN8#..ARL,GEN,V198808-200106

main17111-35090i22R..RN85,90..RHD198808-199408

main17111-35091i22R..RN90..ARL199408-199708

main17111-35100i22R..RN125,8#,90..LHD198808-199408

main17111-35110i22R..RN8#;22R..RN90..V199408-199909

main17111-54112i5L..LN200200106-200206

main17111-54113i5L..LN200200206-200412

main17111-71010i2Y..YN85..ARL198808-199708

main17111-71020i2Y,3Y,4Y..YN8#,92..GEN,V198808-199909

main17111-75031i3RZFE..RZN200200106-200412

17141MANIFOLD, EXHAUST

main17141-35100i22RE..RN85;22R..RN90..ARL198808-199708

main17141-35130i22R..RN125,8#..V198808-199909

main17141-35150i22RE..RN85199408-199909

main17141-54110i2L,3L..LN8#,90198808-199602

main17141-54111i5L..LN200199602-200412

main17141-71020i2Y,3Y,4Y..YN8#,9#198808-199909

main17141-75080i3RZFE..RZN200200106-200412

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058i2Y,3Y,4Y..YN8#,92198808-198909

main90116-10087i22R#..RN125,8#,90198808-199909

main90116-10088i2L..LN8#,90198808-200412

main90116-10146i2Y,3Y,4Y..YN8#,9#199001-199909

main90116-10148i2Y,3Y,4Y..YN8#,92198909-199001

main90116-10149i3RZFE..RZN200200106-200412

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08172i22R#..RN125,8#,90198808-199909

INTAKE TO HEAD

main90116-08220i2L,3L..LN8#,90198808-200106

INTAKE SIDE

main90116-10063i2Y,3Y,4Y..YN8#,9#198808-199909

main90116-10064i22R#..RN125,8#,90198808-199909

EXHAUST MANIFOLD LWR

main90116-10067i22R#..RN125,8#,90198808-199909

EXHAUST MANIFOLD UPR

main90116-10141i2L,3L..LN8#,9#198808-200106

EXHAUST SIDE

main90116-10163i3RZFE..RZN200200106-200412

main92122-60825i22RE..RN85199401-199909

INTAKE TO SURGE TANK

main92132-60820i2L,3L..LN8#,90199204-199301

INTAKE SIDE

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-54090i2L,3L..LN8#,90198808-199508

main17167-54120i2L,3L..LN8#,9#199508-200412

main17167-71020i2Y,3Y,4Y..YN8#,9#198808-199909

main17167-75100i3RZFE..RZN200200106-200412

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-35120i22R#..RN125,8#,90198808-199909

main17173-54030i2L,3L..LN8#,9#198808-200412

main17173-75020i3RZFE..RZN200200106-200412

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-35040i22R..RN125,8#..V198808-199003

sub17177-35060

main17177-35050i22RE..RN85;22R..RN90..ARL198808-199909

main17177-35060i22R..RN125,8#..V199003-199909

main17177-54020i2L,3L..LN8#..ARL,GEN,V198808-199507

sub17177-54021

main17177-54021i5L..LN200199507-200412

main17177-75020i3RZFE..RZN200200106-200412

2202

9011908A96

main90119-08A96

9011910367

main90119-10367

9017908150

main90179-08150

9017910070

main90179-10070

9161160822

main91611-60822

14 parts on this diagram · 6 diagrams in section
