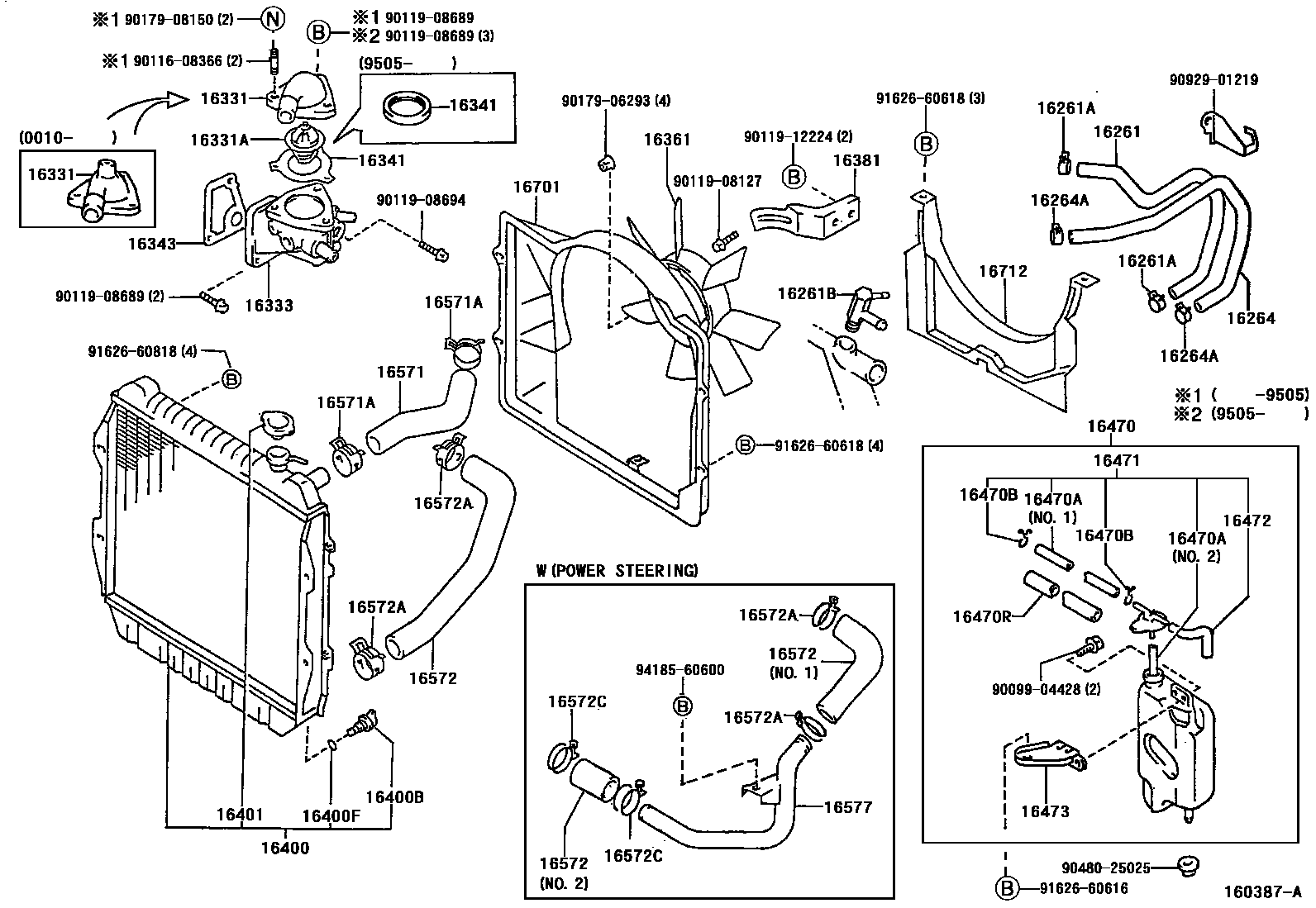

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16261HOSE, WATER BY-PASS

main16261-35030i22RE..RN85199401-199909

main16261-35060i22R..RN125,8#,90198808-199006

sub16261-35061

main16261-35061i22R..RN125,8#,90199006-199909

main16261-54080i2L,3L..LN80,85,9#..RHD..TH199608-199806

main16261-54121i3L..LN86199911-200412

main16261-75040i3RZFE..RZN200200106-200412

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-15022i3L..LN86199608-200412

main90467-20005i22R#..RN125,8#,90198808-199909

sub96134-41900

main96135-51300i3RZFE..RZN200200106-200412

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-53040i22R..RN125,8#,90198808-199305

sub90404-53070

main90404-53070i22R..RN125,8#,90199305-199909

main90404-54037i5L..LN200199608-200412

main90407-53007i22RE..RN85199401-199909

16264HOSE, WATER BY-PASS, NO.2

main16264-54070i2L,3L..LN80,85,9#..RHD..TH199608-199806

main16264-54121i5L..LN200199911-200412

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-15022i2L,3L..LN80,85,9#..RHD..TH199608-200412

16331OUTLET, WATER

main16331-0W010i3RZFE..RZN200200106-200412

main16331-35041i22RE..RN85199401-199909

main16331-35050i22R..RN125,8#,90198808-199009

sub16331-35051

main16331-35051i22R..RN125,8#,90199009-199909

main16331-54090i2L..LN85..LHD..TH;2L,3L..LN80,85,86..ARL,GEN198808-200010

main16331-54150i3L..LN81,86..V199008-199708

main16331-54210i5L..LN200200010-200412

main16331-71010i2Y,3Y,4Y..YN8#,9#198808-199909

16331ATHERMOSTAT

main16340-54010i2L,3L..LN8#..ARL,GEN,V199505-200105

*WAX 88-100,KUZEH

main16340-54010i5L..LN200200105-200412

*WAX 88-100

main16340-54040i2L..LN85..LHD..TH;2L,3L..LN8#..ARL,GEN,V199505-200105

*WAX 82-95,THAILAND SPEC

main90916-03046i2Y,3Y,4Y..YN8#,9#199201-199909

*WAX 82-95

main90916-03069i2Y,3Y,4Y..YN8#,92198808-199201

*WAX 82-95

sub90916-03046

main90916-03072i2L,3L..LN8#,90199108-199303

*WAX 88-100

sub90916-03099

main90916-03078i22R#..RN125,8#,90198808-199909

*WAX 88-100

main90916-03099i2L,3L..LN8#,90198808-199505

*WAX 88-100

main90916-03120i3RZFE..RZN200200106-200412

*WAX 82-95

16333HOUSING, WATER OUTLET

main16303-54040i2L..LN8#,90198808-198906

sub16333-54121

main16333-54113i5L..LN200199608-200412

main16333-54121i2L,3L..LN8#,90..ARL,GEN,V198906-199108

sub16333-54122

main16333-54122i2L,3L..LN8#..ARL,GEN,V199108-199505

main16333-54123i2L..LN85..LHD..TH;2L,3L..LN8#..ARL,GEN,V199505-199911

16341GASKET, WATER OUTLET

main16341-05020i5L..LN200200301-200412

(L)

main16341-35010i2L..LN85..SR5;2L..LN85..LHD..TH;2L,3L..LN80,85,86..ARL,GEN198808-200301

main16341-35010i5L..LN200200301-200412

(J)

main16341-54030i2L,3L..LN8#,90198808-199110

sub16341-54040

main16341-54040i2L,3L..LN8#,90199110-199505

main16341-71010i2Y,3Y,4Y..YN8#,92198808-198912

sub16341-71011

main16341-71011i2Y,3Y,4Y..YN8#,9#198912-199706

main16341-73010i2Y,3Y,4Y..YN8#,92199707-199909

main16341-75020i3RZFE..RZN200200106-200412

16343GASKET, WATER OUTLET HOUSING

main16343-54030i2L,3L..LN8#,90198808-199110

sub16343-54040

main16343-54040i5L..LN200199110-200412

16361FAN

main16361-38010i22R#..RN125,8#,90198808-199909

main16361-44032i2Y,3Y,4Y..YN8#,9#..GEN,TH,V198808-199909

main16361-54020i2L..LN85..5F..ARL198808-199108

main16361-54040i2L..LN85..GEN,TH;2L..LN85..4FC..ARL;2L,3L..LN80,81,86,9#198808-200106

main16361-54131i5L..LN200200106-200412

main16361-73010i4Y..YN87,92198808-199708

W(AIR CONDITIONER)

main16361-75020i3RZFE..RZN200200106-200412

sub16361-75021

16381BAR, FAN BELT ADJUSTING

main16381-35010i22R..RN125,8#,90198808-199408

main16381-35021i22R#..RN8#,90199401-199909

main16381-54060i2L,3L..LN8#,9#198808-199809

T=3.2

sub16381-54061

main16381-54061i2L,3L..LN8#199809-200105

T=4.5

main16381-54061i3L..LN86200105-200106

main16381-54121i5L..LN200200106-200412

main16381-71010i2Y,3Y,4Y..YN8#,9#198808-199504

main16381-73011i2Y,3Y,4Y..YN8#,92..ARL,GEN,V199408-199909

main16381-75050i3RZFE..RZN200200106-200412

16400RADIATOR ASSY

main16400-35330i22R..RN85,90..RHD..5F198808-199812

main16400-35350i4Y..YN87,92;2Y..YN85..ARL198808-199909

main16400-35370i22R..RN8#,90..LHD198808-199909

main16400-35510i22R..RN85,90..4FC198808-199708

main16400-35520i22R..RN125198907-199308

sub16400-35530

main16400-54610i2L..LN8#,90..MTM198808-199604

sub16400-5B470

main16400-54620i2L..LN85..4FC..CBU198808-199108

main16400-54880i2L..LN85..TW1..4FC198908-199108

W(POWER STEERING)

main16400-5B010i2L..LN85..RHD..IV3;2L..LN85,90..RHD..TH199108-199604

W(POWER STEERING)

sub16400-5B480

main16400-5B010i2L..LN85,90..RHD..TH199108-199604

NEW ZEALAND SPEC

sub16400-5B480

main16400-5B010i2L,3L..LN85,86..5F..ARL199008-199604

sub16400-5B480

main16400-5B010i2L..LN85..RHD..4F199403-199604

HONGKONG SPEC

sub16400-5B480

main16400-5B020i2L,3L..LN85,86..4FC..IV3199008-199604

sub16400-5B490

main16400-5B470i2L,3L..LN8#,9#..MTM..(GEN,TH,V)199604-200106

main16400-5B480i2L..LN85..RHD..4F199604-199909

HONGKONG SPEC

sub16400-5B490

main16400-5B480i2L..LN85..RHD..IV3;2L..LN85..RHD..TW1..CBU;2L,3L..LN85,86,90..RHD..5F..(ARL,TH)199604-199909

W(POWER STEERING)

sub16400-5B490

main16400-5B490i2L,3L..LN86,90..4FC199604-199806

main16400-71081i2Y..YN80,85,90..GEN,TH198808-199909

main16400-73370i4Y..YN87,92198808-199708

W(AIR CONDITIONER)

sub16400-73380

main16410-0C060i3RZFE..RZN200200106

16400BPLUG, RADIATOR DRAIN COCK

main90910-09054i2L..LN8#,90198808-200106

main90910-09099i2L..LN90..4FC;2L,3L..LN85,86..ARL199008-199806

main90910-09099i2L..LN85..RHD..T1..IV3;2L..LN85..RHD..TW1..CBU199108-199403

NEW ZEALAND SPEC

main90910-09099i2L..LN85..RHD..T1..IV3;2L..LN85..RHD..TW1..CBU199108-199909

W(POWER STEERING)

main90910-09099i2L..LN85..RHD..4F199403-199909

HONGKONG SPEC

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96711-19007i22R#..RN125,8#,90198808-200106

16401CAP SUB-ASSY, RADIATOR

main16401-05140i5L..LN200200106

sub16401-5B630

main16401-63010i2L,3L..LN8#,9#198808-200106

16470TANK ASSY, RADIATOR RESERVE

main16470-35100i22R#..RN125,8#,90199108-199909

main16470-54120i2L,3L..LN8#;2L..LN90..5F198808-200106

main16470-54250i3L..LN91;2L..LN90..4FC199611-199806

main16470-72030i22R..RN125,8#,90198808-199108

sub16470-35100

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i2Y,3Y,4Y..YN8#,9#198808-199909

L=600(*H,L=220),NO.1,NO.2

main90445-12078i2L,3L..LN8#,90198808-199302

L=600(*H,L=260),NO.1,NO.2

main90445-12078i22R#..RN125,8#,90198808-199909

L=600(*H,L=350),NO.1,NO.2

main90445-12078i2L,3L..LN8#;2L..LN90..5F199302-200106

L=600(*H,L=220)

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2Y,3Y,4Y..YN8#,9#198808-200106

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main16483-55020i2L,3L..LN8#;2L..LN90..5F199108-200106

16471CAP SUB-ASSY, RESERVE TANK

main16405-54180i2L,3L..LN8#,9#198808-200106

main16405-71010i22R#..RN125,8#,90198808-199909

16472HOSE, BREATHER

main85338-71030i22R#..RN125,8#,90198808-200106

16473SUPPORT(FOR RADIATOR RESERVE TANK)

main16473-35100i22R#..RN125,8#,90199108-199909

main16473-54240i2L,3L..LN8#,9#198808-200105

16571HOSE, RADIATOR, INLET

main16571-35070i22R..RN125,8#,90198808-199909

main16571-35180i22RE..RN85199401-199909

main16571-54270i2L,3L..LN8#,9#198808-200106

main16571-54590i5L..LN200200106

main16571-71030i2Y,3Y,4Y..YN8#,9#198808-199909

main16571-75220i3RZFE..RZN200200106

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37003i2L,3L..LN8#,9#198808-200106

main90467-37005i5L..LN200200106

16572HOSE, RADIATOR, OUTLET

main16572-35030i22R..RN85,90..5F..ARL198808-199108

main16572-35060i22R..RN80;22R..RN85..5F..V;22R..RN85,90..4F,4FC198808-199108

main16572-35100i22R..RN125198907-199108

main16572-35120i22RE..RN85;22R..RN85,90..RHD..5F199108-199909

main16572-35140i22R..RN8#,90..LHD;22R..RN85,90..4FC199108-199909

main16572-35160i22R..RN125199108-199308

main16572-54250i2L..LN8#,90198808-200106

main16572-54390i2L..LN85,90..RHD..TH199108-199403

NEW ZEALAND SPEC,NO.1

main16572-54390i2L..LN85..RHD..T1..IV3;2L..LN85..RHD..TW1..CBU199108-199909

W(POWER STEERING),NO.1

main16572-54390i2L..LN85..RHD..4F199403-199909

HOMGKONG SPEC,NO.1

main16572-54390i2L..LN85..RHD..4F199008-199909

NO.1

main16572-54690i5L..LN200200106

main16572-71031i2Y,3Y,4Y..YN8#,9#198808-199909

main16572-75130i3RZFE..RZN200200106

main16573-54100i2L..LN85..RHD..IV3;2L..LN85,90..RHD..TH199108-199909

W(POWER STEERING),NO.2

main16573-54100i2L..LN85..RHD..TW1..CBU199108-199403

NEW ZEALAND SPEC,NO.2

main16573-54100i2L,3L..LN85,86..ARL199008-199909

NO.2

main16573-54100i3L..LN86..ARL;2L..LN90..4FC;2L..LN85..RHD..TW1..CBU199403-199909

HOMGKONG SPEC,NO.2

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37001i2Y,3Y,4Y..YN8#,92198808-198809

TYPE A

sub90467-37003

main90467-37002i22R..RN125,8#,90199001-199108

sub90467-37005

main90467-37002i2L,3L..LN8#,9#198808-199705

RADIATOR SIDE

sub90467-37005

main90467-37002i2L,3L..LN8#,9#198808-199705

TYPE B

sub90467-37005

main90467-37003i2Y,3Y,4Y..YN8#,9#198809-199909

TYPE A

main90467-37005i2L,3L..LN8#,9#199705-200106

RADIATOR SIDE

main90467-37005i5L..LN200200106

main90467-37005i2Y,3Y,4Y..YN8#,92199705-199909

TYPE B

main90467-38001i22R..RN125,8#,90198808-199909

sub90466-38001

main90467-41001i2L,3L..LN8#,9#198808-200106

ENGINE SIDE

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main90466-41008i5L..LN200200106-200412

main90467-37002i2L..LN85..RHD..4F199403-199705

HONGKONG SPEC

sub90467-37005

main90467-37002i2L,3L..LN86,9#..RHD;2L..LN85..RHD..5F..CBU198912-199705

sub90467-37005

main90467-37002i2L..LN85..RHD..T1..IV3;2L..LN85..RHD..TW1..CBU199108-199403

NEW ZEALAND SPEC & W(POWER STEERING)

sub90467-37005

main90467-37002i2L..LN85..TW1..IV3;2L,3L..LN85,86,90..RHD..(ARL,TH)199301-199705

W(POWER STEERING)

sub90467-37005

main90467-37005i2L,3L..LN85,86,9#..RHD199705-199909

16577PIPE, RADIATOR, NO.7

main16577-35030i22R..RN125,8#,90198808-199108

sub16577-35070

main16577-35070i22R#..RN125,8#,90199108-199909

main16577-54150i2L..LN85..TW1..IV3;2L,3L..LN85,86,90..RHD..(ARL,TH)199301-199812

W(POWER STEERING)

main16577-54150i2L..LN85..RHD..TW1..CBU199108-199403

NEW ZEALAND SPEC

main16577-54150i2L,3L..LN85,86,90..RHD..(ARL,TH)199008-199909

main16577-54150i2L..LN85..RHD..4F199403-199909

HONGKONG SPEC

16701SHROUD SUB-ASSY, FAN

main16711-35020i22RE..RN85;22R..RN85,90..RHD..5F198808-199909

main16711-35030i22R..RN80,90..V;22R..RN85..LHD..5F;22R..RN85,90..4F,4FC198808-199909

main16711-35060i22R..RN125198907-198908

main16711-35061i22R..RN125198908-199308

main16711-54260i2L..LN85..5F..ARL198808-199008

main16711-54270i2L,3L..LN85,9#..MTM198808-199909

main16711-54410i2L..LN85..5F..ARL199008-199108

main16711-54420i3L..LN86..ARL;2L..LN85,90..4FC..(ARL,TH)199008-199806

main16711-54420i2L..LN85..RHD..T1..IV3;2L..LN85..RHD..TW1..CBU199108-199301

NEW ZEALAND SPEC

main16711-54420i2L..LN85..RHD..T1..IV3;2L..LN85..RHD..TW1..CBU199108-199909

W(POWER STEERING)

main16711-54420i2L..LN85..RHD..IV3;2L..LN85,90..RHD..TH199301-199403

NEW ZEALAND SPEC & W(POWER STEERING)

main16711-54420i2L..LN85..RHD..4F199403-199909

HONGKONG SPEC

main16711-71030i4Y..YN87,92198808-199708

W(AIR CONDITIONER)

main16711-71030i2Y..YN80,85,90198808-199909

main16711-73060i3Y,4Y..YN81,86,87,92198808-199708

16712SHROUD, FAN, NO.2

main16712-35010i22R..RN125198907-198908

main16712-35011i22R..RN125198908-199308

main16712-54050i22R..RN8#,90..ARL,V;22R#..RN85..LHD..GEN198808-199909

main16712-54180i2L..LN85..5F..ARL198808-199008

main16712-54190i2L..LN85..RHD..IV3;2L..LN85..RHD..TW1..CBU199108-199909

W(AIR CONDITIONER)

main16712-54190i2L..LN85..4FC..ARL..CBU;2L,3L..LN8#,90..GEN,TH,V198808-200106

main16712-54190i2L..LN85..LHD..T1..5F..GEN199510-199708

TURKEY SPEC & W(AIR CONDITIONER)

main16712-54190i2L..LN85..LHD..T1..5F..GEN199510-199708

PERU SPEC & W(AIR CONDITIONER)

main16712-54280i2L..LN85..5F..ARL199008-199108

main16712-54290i2L..LN85..RHD..T1..5F..GEN..CBU199301-199909

W(POWER STEERING & AIR CONDITIONER)

main16712-54290i2L..LN85..RHD..4F199403-199909

HONGKONG SPEC & W(AIR CONDITIONER)

main16712-54290i3L..LN86..ARL;2L..LN85..RHD..IV3199008-199403

main16712-54290i2L,3L..LN85,9#..RHD..5F..TH199108-199806

W(POWER STEERING)

main16712-54290i2L..LN85..RHD..TW1..CBU199108-199403

NEW ZEALAND SPEC

9009904428

main90099-04428

9011608366

main90116-08366

9011908127

main90119-08127

9011908689

main90119-08689

9011908694

main90119-08694

9011912224

main90119-12224

9017906293

main90179-06293

9017908150

main90179-08150

9048025025

main90480-25025

9092901219

main90929-01219

9162660616

main91626-60616

9162660618

main91626-60618

9162660818

main91626-60818

9418560600

main94185-60600

45 parts on this diagram · 6 diagrams in section
