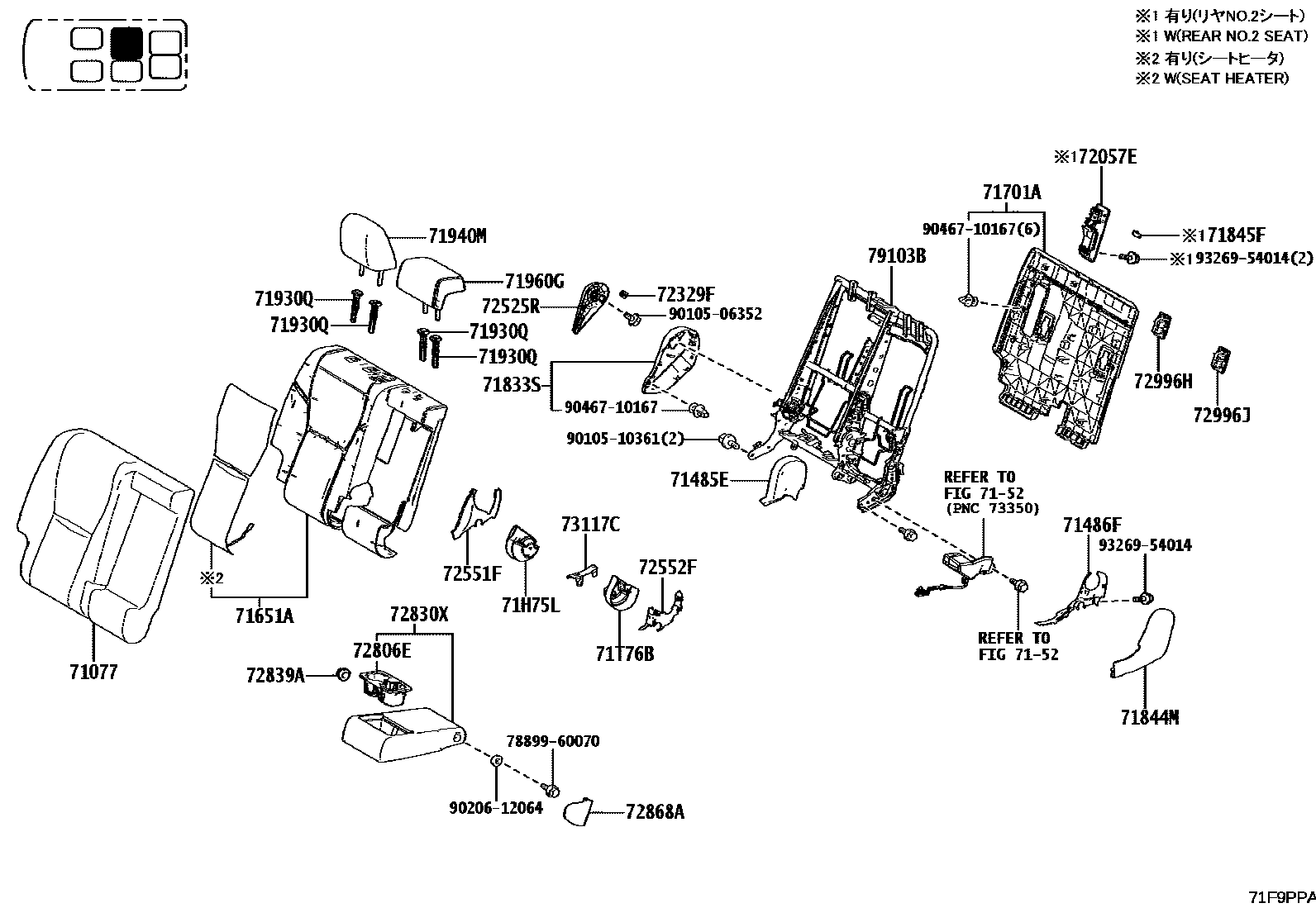

REAR SEAT & SEAT TRACK

71077COVER SUB-ASSY, REAR NO.1 SEATBACK, RH

main71077-35C60-C7i202412

REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL),LT. GREY,TRIM1#

main71077-35C60-C8i202412

REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL),BLACK,TRIM2#

main71077-35C70-C4i202412

TRD OFFROAD PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/MD. GRAY,TRIM1#

main71077-35C70-C4i202412

TRD SPORT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/MD. GRAY,TRIM1#

main71077-35D20-C5i202412

TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

main71077-35D20-C5i202412

TRD SPORT PACKAGE&TRD PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

main71077-35D30-C7i202412

LT. GREY,TRIM1#

main71077-35D30-C8i202412

BLACK,TRIM2#

71485ECOVER, REAR SEAT HINGE

main71485-60130-C0i202412

BLACK,TRIM1#,2#,4#

71486FCOVER, REAR SEAT HINGE, LH

main71486-60110-C0i202412

BLACK,TRIM1#,2#,4#

7152

71651APAD, REAR NO.1 SEATBACK, RH

main71651-60750i202412

71701ABOARD SUB-ASSY, REAR SEATBACK, RH

main71701-35010i202412

main71701-60350i202412

REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL)

71833SCOVER, REAR SEAT RECLINING, NO.1 RH

main71833-60360-C0i202412

BLACK,TRIM1#,2#,4#

71844MCOVER, REAR SEAT RECLINING, NO.2 LH

main71834-60360-C0i202412

BLACK,TRIM1#,2#,4#

71845FCAP, REAR SEAT COVER

main71845-60040-C0i202412

REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL),BLACK,TRIM1#,2#,4#

71930QSUPPORT ASSY, REAR SEAT HEADREST

main71930-28050-C0i202412

W(LOCK),BLACK,TRIM1#,2#

main71930-28050-C0i202412

W(LOCK),TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#,4#

main71930-28050-C0i202412

W(LOCK),TRD SPORT PACKAGE&TRD PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#,4#

main71931-28060-C0i202412

W/O(LOCK),BLACK,TRIM1#,2#

main71931-28060-C0i202412

W/O(LOCK),TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#,4#

main71931-28060-C0i202412

W/O(LOCK),TRD SPORT PACKAGE&TRD PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#,4#

71940MHEADREST ASSY, REAR SEAT

main71940-35720-B0i202412

LT. GREY,TRIM1#

main71940-35720-C0i202412

BLACK,TRIM2#

main71940-35730-C2i202412

TRD OFFROAD PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#

main71940-35730-C2i202412

TRD SPORT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM1#

main71940-35750-C1i202412

TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

main71940-35750-C1i202412

TRD SPORT PACKAGE&TRD PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

main71940-35750-E4i202412

TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),MD. BROWN,TRIM4#

main71940-35750-E4i202412

TRD SPORT PACKAGE&TRD PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),MD. BROWN,TRIM4#

71960GHEADREST ASSY, REAR NO.1 SEAT, CENTER

main71960-35250-C3i202412

TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

main71960-35250-C3i202412

TRD SPORT PACKAGE&TRD PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

main71960-35250-E3i202412

TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),MD. BROWN,TRIM4#

main71960-35250-E3i202412

TRD SPORT PACKAGE&TRD PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),MD. BROWN,TRIM4#

main71960-60A00-B6i202412

LT. GREY,TRIM10

main71960-60A00-C7i202412

BLACK,TRIM11,12,2#

71H75LCOVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEAT)

main71875-60310i202412

71T76BCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-60380i202412

72057ELEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1

main72057-60230-C0i202412

REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL),BLACK,TRIM1#,2#,4#

72329FCOVER, REAR SEAT ADJUSTER BOLT

main72329-60140-C0i202412

BLACK,TRIM1#,2#,4#

72525RHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-60161-C0i202412

BLACK,TRIM1#,2#,4#

72551FCOVER, RECLINING LINK, RH NO.1

main72551-60190-C0i202412

BLACK,TRIM1#,2#,4#

72552FCOVER, RECLINING LINK, LH NO.1

main72552-60170-C0i202412

BLACK,TRIM1#,2#,4#

72806EHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-78010-C0i202412

BLACK,TRIM1#,2#

main72806-78010-C0i202412

TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#,4#

main72806-78010-C0i202412

TRD SPORT PACKAGE&TRD PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#,4#

72830XARMREST ASSY, REAR SEAT, CENTER

main72830-35290-C5i202412

TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

main72830-35290-C5i202412

TRD SPORT PACKAGE&TRD PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

main72830-35290-E5i202412

TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/MD.BROWN,TRIM4#

main72830-35290-E5i202412

TRD SPORT PACKAGE&TRD PREMIUM PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/MD.BROWN,TRIM4#

main72830-60E00-21i202412

BLACK,TRIM11,12,2#

main72830-60E00-B6i202412

LT. GREY/BLACK,TRIM10

72839ASHIM, REAR SEAT ARMREST HINGE

main72839-22010i202412

72868ACOVER, CENTER ARMREST HINGE

main72868-60030-C0i202412

BLACK,TRIM1#,2#,4#

72996HCOVER, REAR SEATBACK

main72996-60280-C0i202412

BLACK,TRIM1#,2#,4#

72996JCOVER, REAR SEATBACK, NO.2

main72996-60290-C0i202412

BLACK,TRIM1#,2#,4#

73117CPROTECTOR, SEAT BELT WEBBING, RH

main73117-60010i202412

79103BFRAME SUB-ASSY, NO.1 SEATBACK, RH

main71017-35280i202412

main71017-60B70i202412

REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL)

7889960070BOLT, FRONT SEAT

main78899-60070

9010506352

main90105-06352

9010510361

main90105-10361

9020612064

main90206-12064

9046710167

main90467-10167

9326954014

main93269-54014

33 parts on this diagram · 9 diagrams in section
