BACK DOOR PANEL & GLASS

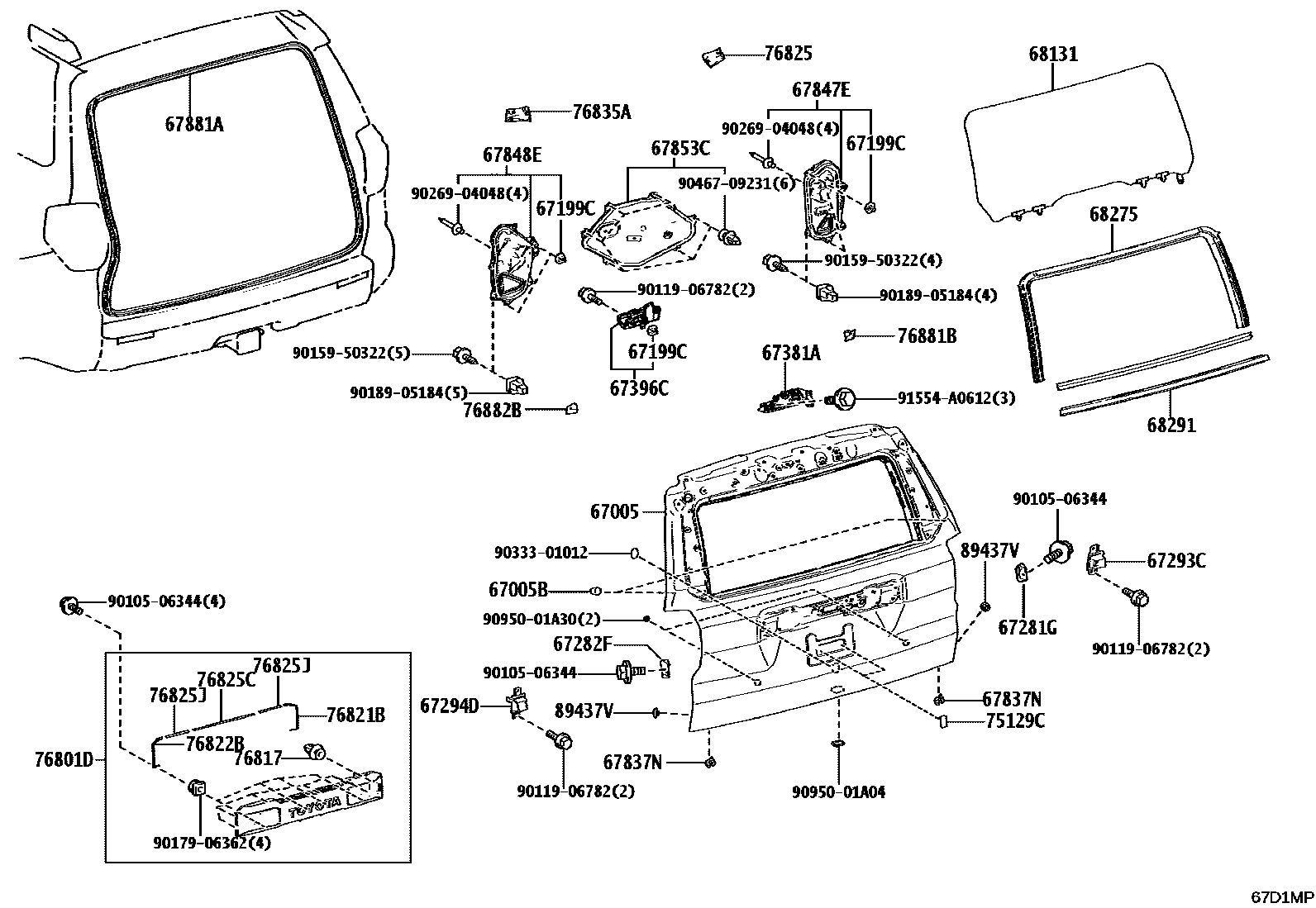

Parts diagram
67005PANEL SUB-ASSY, BACK DOOR
main67005-35480i202412
67005BCUSHION(FOR BACK DOOR PANEL)
main90541-09125i202412
67199CRETAINER, BACK DOOR INSIDE PANEL
main67199-35020i202412
67281GSTOPPER, BACK DOOR, LOWER RH
main67281-35040i202412
67282FSTOPPER, BACK DOOR, LWR LH
main67282-35010i202412
67293CCUSHION, BACK DOOR STOPPER
main67293-35040i202412
67294DCUSHION, BACK DOOR STOPPER, LH
main67294-35040i202412
67381ABRACKET, BACK WINDOW WIPER MOTOR, NO.1
main67381-35020i202412
67396CBRACKET, BACK DOOR INSIDE HANDLE
main67396-35900i202412
67837NSEAL, BACK DOOR DUST PROOF
main67837-30120i202412
67847ECOVER, BACK DOOR SERVICE HOLE, RH
main67847-35080i202412
67848ECOVER, BACK DOOR SERVICE HOLE, LH
main67848-35050i202412
67853CCOVER, BACK DOOR SERVICE HOLE, NO.3
main67853-35010i202412
67881AWEATHERSTRIP, BACK DOOR
main67881-35070i202412
68131GLASS, BACK DOOR
main68150-35470i202412
68275RUN, BACK DOOR GLASS
main68275-35040i202412
68291WEATHERSTRIP, BACK DOOR GLASS
main68292-35050i202412
75129CCUSHION, REAR LICENCE PLATE
main75129-30010i202412
76801DGARNISH SUB-ASSY, BACK DOOR, OUTSIDE
main76801-35640i202412
76817CLIP, BACK DOOR OUTSIDE GARNISH
main90467-09206i202412
76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH
main76821-35020i202412
76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH
main76822-35020i202412
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
main76825-35080i202412
76825CPROTECTOR, BACK DOOR OUTSIDE GARNISH
main76825-35090i202412
76825JPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2
main76825-35100i202412
76835APROTECTOR, BACK DOOR FINISH PANEL, NO.1
main76835-35010i202412
76881BPROTECTOR, BACK DOOR LOWER MOULDING, RH
main76881-35030i202412
76882BPROTECTOR, BACK DOOR LOWER MOULDING, LH
main76882-35030i202412
89437VCOVER, SENSOR
main89437-48030i202412
9010506344
9011906782
9015950322
9017906362
9018905184
9026904048
9033301012
9046709231
9095001A04
9095001A30
91554A0612

40 parts on this diagram · 2 diagrams in section
