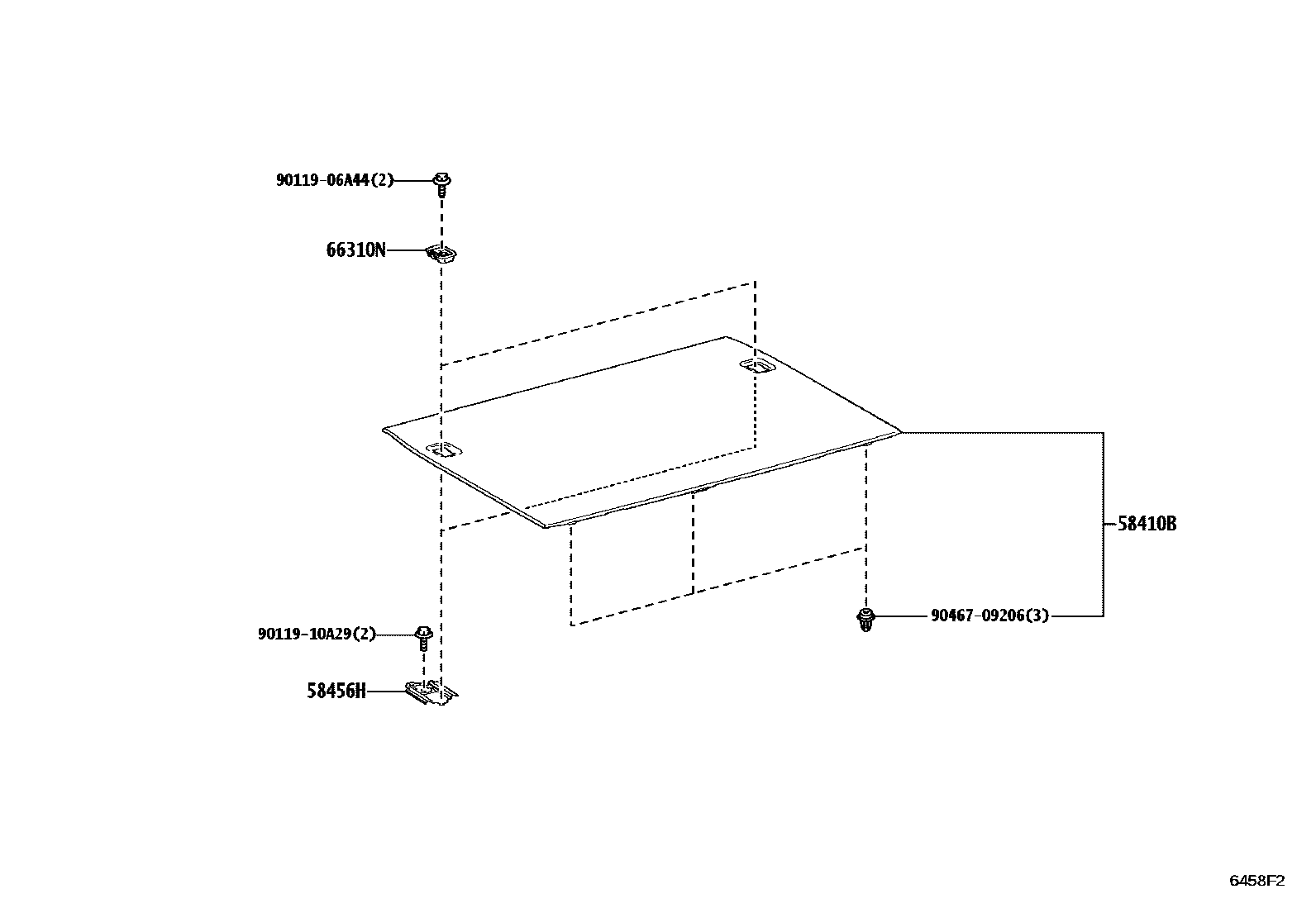

DECK BOARD & DECK TRIM COVER

0001 1W/O(REAR NO.2 SEAT) 0002 1W(REAR NO.2 SEAT)

58410BBOARD ASSY, DECK

main58410-60050-C2supersedes 58410-35030-C2iTZNA5#202412

REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL),BLACK,TRIM1#,2#,4#

58456HBRACKET, DECK FLOOR NO.2

main58456-35020×2iTZNA5#202412

66310NHOOK ASSY, ROPE

main66310-30011-C1×2iTZNA5#202412

BLACK,TRIM1#,2#,4#

9011906A44

main90119-06A44

9011910A29

main90119-10A29

9046709206

main90467-09206

6 parts on this diagram · 2 diagrams in section
