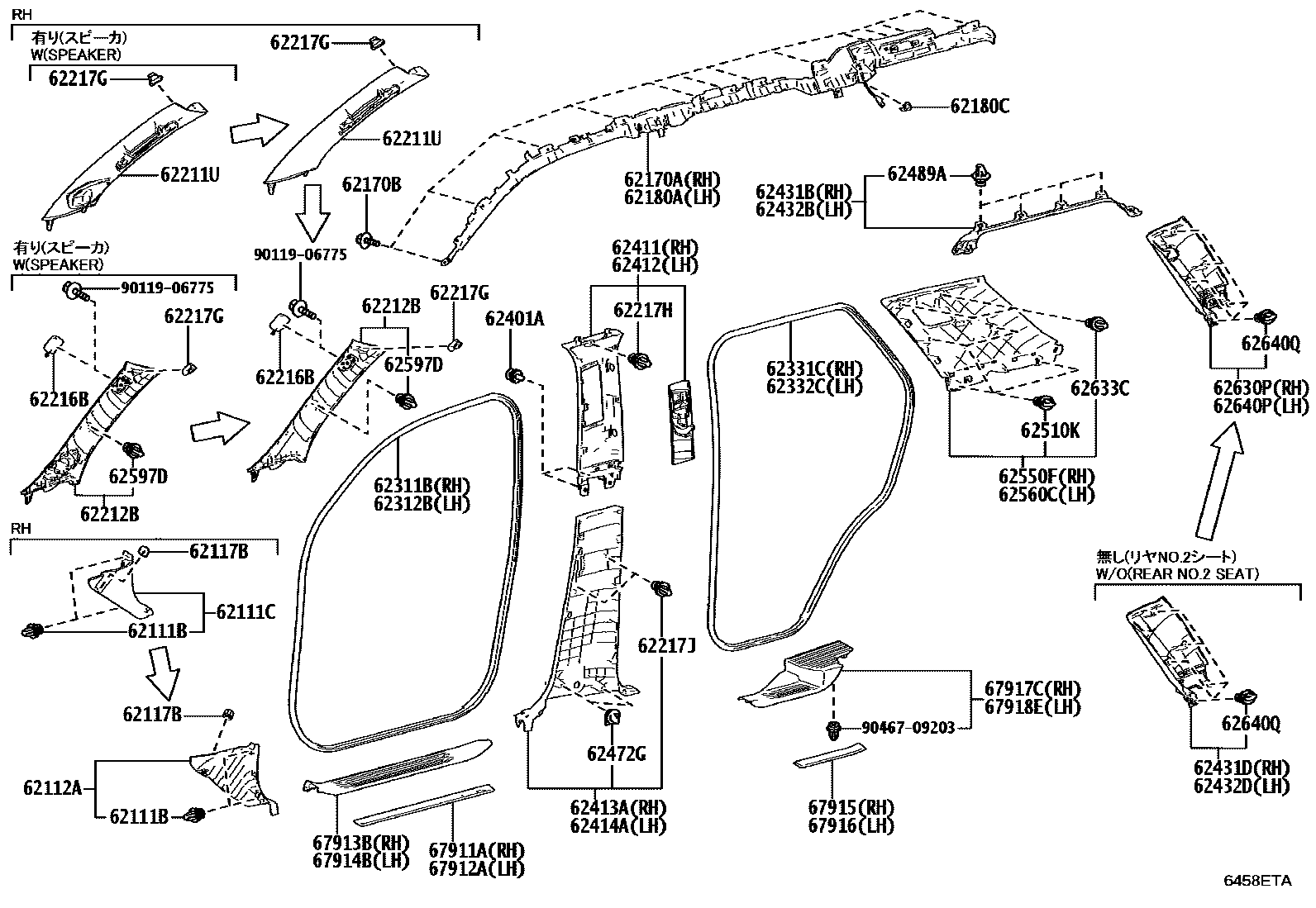

INSIDE TRIM BOARD

0001 1FRONT & CENTER 0002 1QUARTER, RH W/O(REAR NO.2 SEA0003 1QUARTER, RH W(REAR NO.2 SEAT)0004 1QUARTER, LH W/O(REAR NO.2 SEA0005 1QUARTER, LH W(REAR NO.2 SEAT)

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161iTZNA5#202412

62111CBOARD, COWL SIDE TRIM, RH

main62111-35080-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62112-35100-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iTZNA5#202412

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-35060iTZNA5#202412

62170BBOLT, W/WASHER

main91673-80616iTZNA5#202412

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-35070iTZNA5#202412

62180CCLIP, CURTAIN SHIELD AIRBAG

main82711-60780iTZNA5#202412

62211UGARNISH ASSY, FRONT PILLAR, RH

main62210-35040-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

main62210-35050-C0iTZNA5#202412

AUDIO-PREMIUM 14INCH,BLACK,TRIM2#,4#

62212BGARNISH ASSY, FRONT PILLAR, LH

main62220-35050-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

main62220-35060-C0iTZNA5#202412

AUDIO-PREMIUM 14INCH,BLACK,TRIM2#,4#

62216BCOVER, FRONT PILLAR GARNISH, NO.1 LH

main62216-35020-C0iTZNA55202412

BLACK,TRIM1#,2#,4#

main62216-35020-C0iTZNA55202412

BLACK,TRIM1#,2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-35030iTZNA5#202412

62217HCLIP, CENTER PILLER GARNISH

main90467-10167iTZNA5#202412

62217JCLIP, CENTER PILLER GARNISH

main90467-09232iTZNA5#202412

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-35030iTZNA5#202412

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-35040iTZNA5#202412

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-35040iTZNA5#202412

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-35040iTZNA5#202412

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10216iTZNA5#202412

62411GARNISH, CENTER PILLAR, RH

main62410-35020-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

62412GARNISH, CENTER PILLAR, LH

main62420-35020-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-35030-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-35030-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

62431BGARNISH, ROOF SIDE RAIL, NO.1 RH

main62430-35040-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

62431DGARNISH, QUARTER PANEL, RH

main62570-35040-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

62432BGARNISH, ROOF SIDE RAIL, NO.1 LH

main62440-35030-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

62432DGARNISH, QUARTER PANEL, LH

main62580-35050-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-09212iTZNA5#202412

62489ACLIP, ROOF SIDE INNER GARNISH

main90467-09245iTZNA5#202412

62510KCLIP(FOR QUARTER TRIM FRONT PANEL)

main90467-09245iTZNA5#202412

62550FGARNISH ASSY, REAR WINDOW SIDE, RH

main62550-35070-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

62560CGARNISH ASSY, REAR WINDOW SIDE, LH

main62560-35070-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

62597DCLIP

main90467-10161iTZNA5#202412

62630PPANEL ASSY, QUARTER TRIM, REAR RH

main62570-35060-C0iTZNA5#202412

REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL),BLACK,TRIM1#,2#,4#

62633CCLIP (FOR QUARTER TRIM GARNISH)

main90467-10161iTZNA5#202412

62640PPANEL ASSY, QUARTER TRIM, REAR LH

main62580-35070-C0iTZNA5#202412

REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL),BLACK,TRIM1#,2#,4#

62640QCLIP (FOR QUARTER TRIM REAR PANEL)

main90467-09245iTZNA5#202412

67911APLATE, REAR DOOR SCUFF, RH

main67911-35020-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-35020-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-35050-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-35050-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-35010-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-35010-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-35040-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

67918EPLATE, REAR DOOR SCUFF, LH

main67918-35040-C0iTZNA5#202412

BLACK,TRIM1#,2#,4#

9011906775

main90119-06775

9046709203

main90467-09203

47 parts on this diagram · 5 diagrams in section
