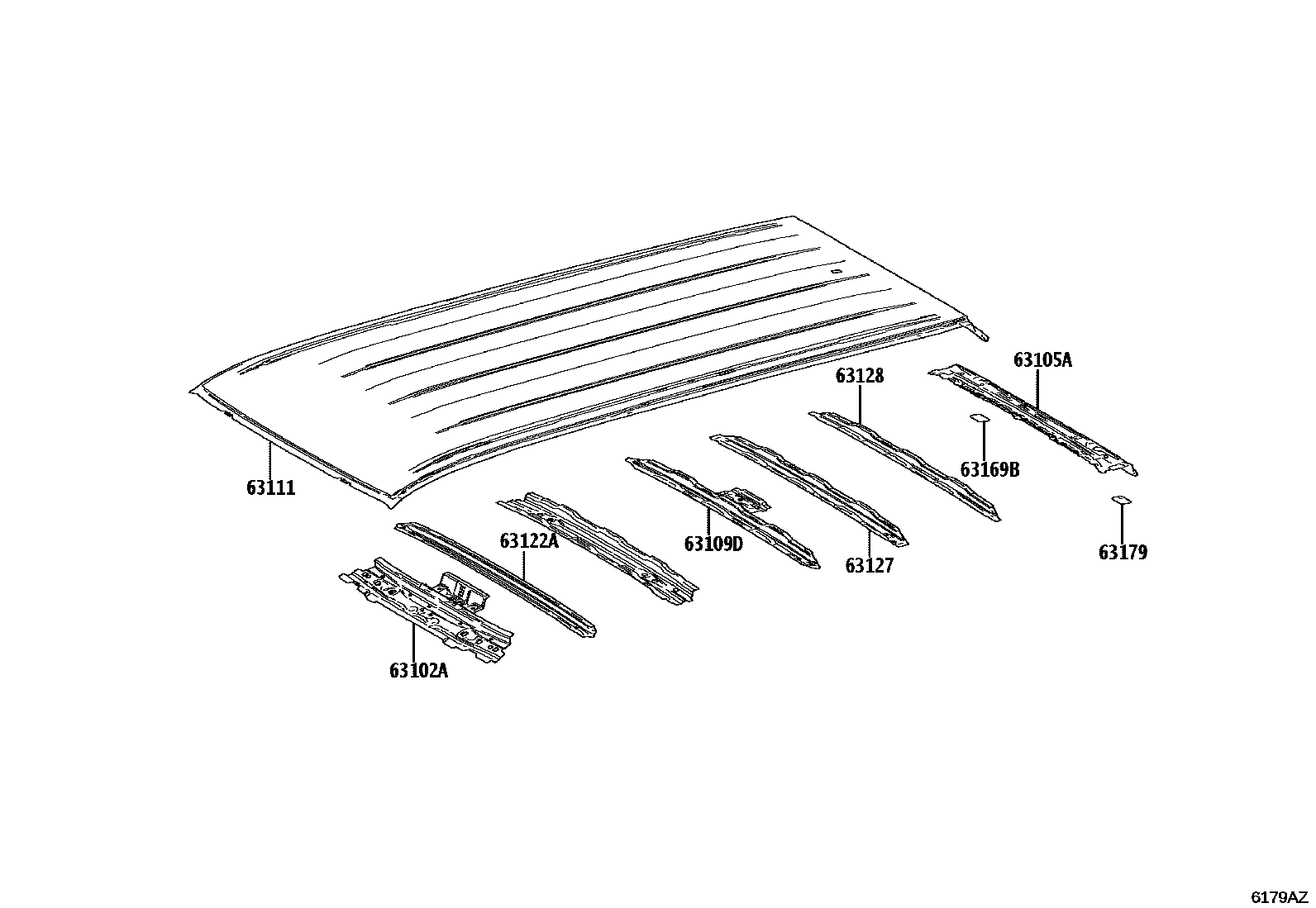

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL(NORMAL ROOF) 0002 1ROOF PANEL(MOON ROOF) 0003 1SLIDING ROOF 0004 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-35900iTZNA5#202412

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-35110iTZNA5#202412

63109DFRAME SUB-ASSY, ROOF

main63109-35010iTZNA5#202412

63111PANEL, ROOF

main63111-35350supersedes 63111-35340iTZNA5#202412

MOON ROOF-WITH

63122AREINFORCEMENT, ROOF PANEL, FRONT

main63122-35060iTZNA5#202412

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-35020iTZNA5#202412

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-35010iTZNA5#202412

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-48010iTZNA5#202412

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-48010iTZNA5#202412

9 parts on this diagram · 4 diagrams in section
