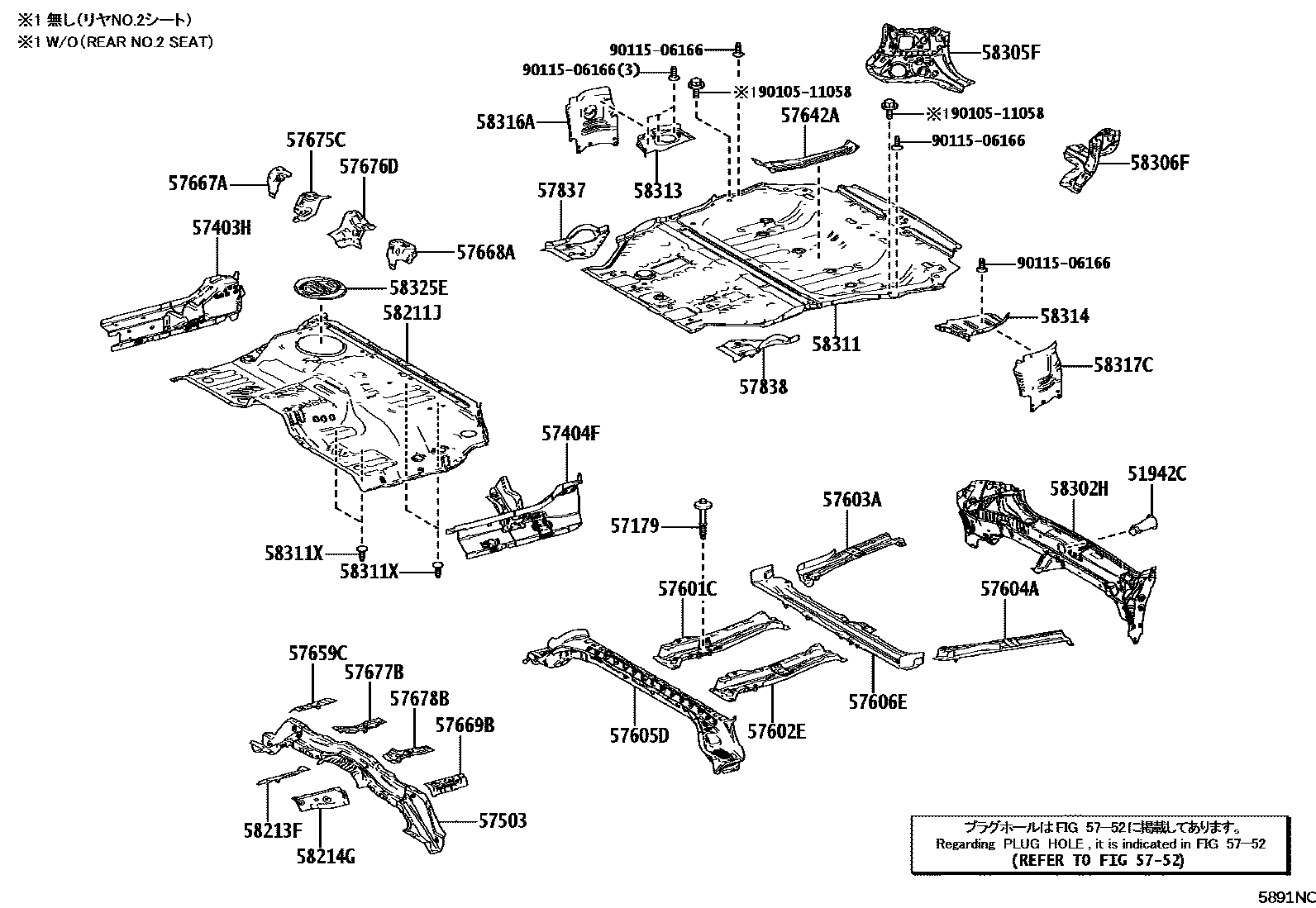

REAR FLOOR PANEL & REAR FLOOR MEMBER
51942CGUIDE, SPARE WHEEL CRANK HANDLE
57179BOLT, FLOOR CROSSMEMBER
57403HRAIL SUB-ASSY, FLOOR SIDE, RH
57404FRAIL SUB-ASSY, FLOOR SIDE, LH
57503BRACE SUB-ASSY, CENTER FLOOR CROSSMEMBER
5752
57601CMEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602EMEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57605DMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57642AREINFORCEMENT, REAR FLOOR SIDE MEMBER, INNER LH
57659CMEMBER, REAR FLOOR CROSS, NO.8
57667AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4
57668AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.5
57669BMEMBER, REAR FLOOR CROSS, NO.9
57675CREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.1 RH
57676DREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.1 LH
57677BREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.6 RH
57678BREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.6 LH
57837REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3
57838REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4
58211JPAN, CENTER FLOOR
58213FREINFORCEMENT, CENTER FLOOR PANEL
58214GREINFORCEMENT, CENTER FLOOR PANEL, LH
58302HPANEL SUB-ASSY, LOWER BACK
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58311PAN, REAR FLOOR
REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL)
58311XBOLT, REAR FLOOR WELD
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH
58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58325ECOVER, REAR FLOOR SERVICE HOLE
9010511058
main90105-11058
9011506166
main90115-06166
38 parts on this diagram · 1 diagram in section
