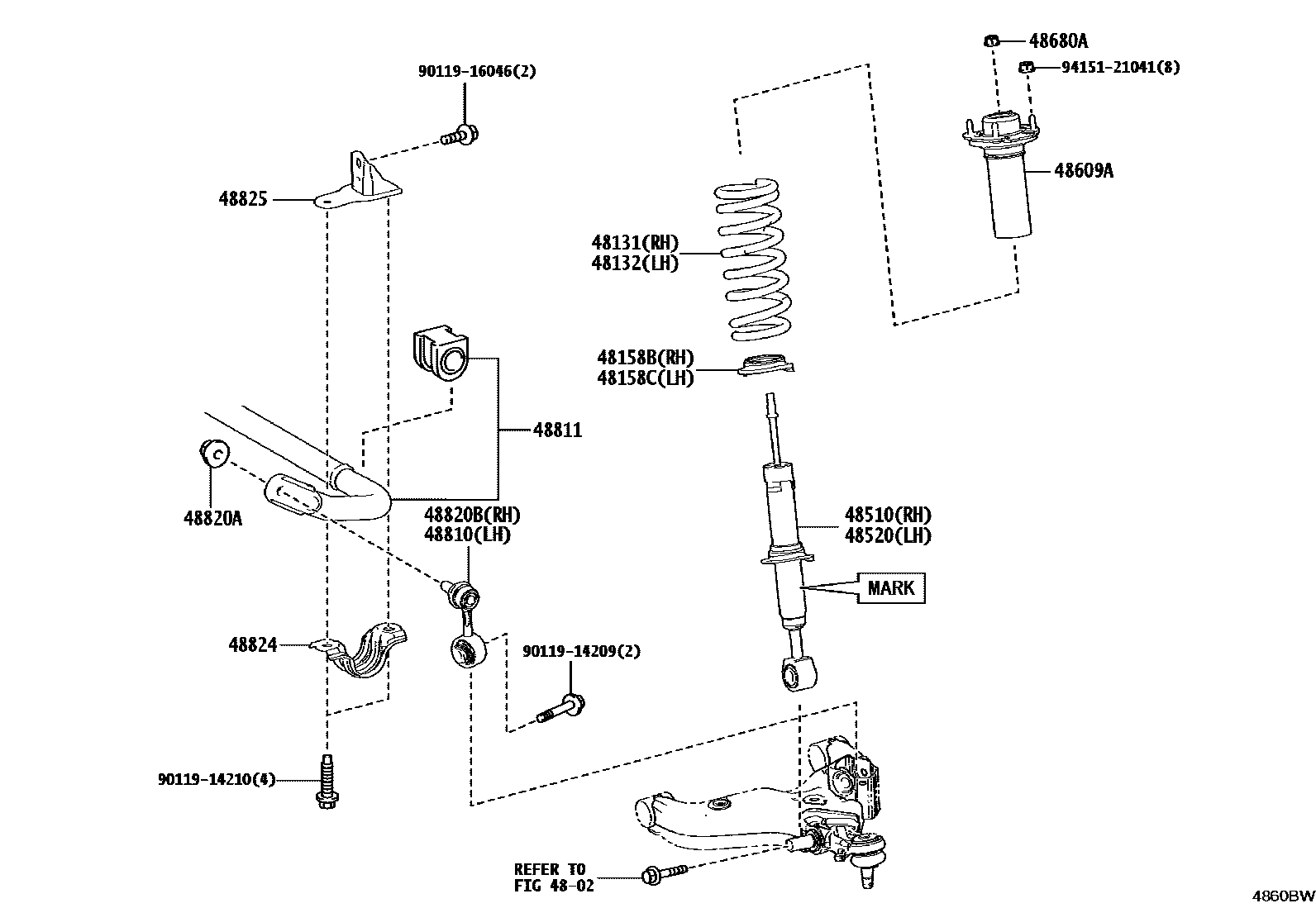

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL)
TRD SPORT PACKAGE
REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL)
CURACAO SPEC&REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL)
LATIN AMERICA SPEC&REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL)
ARUBA SPEC&REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL)
CHILE SPEC&REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL)
HAITI SPEC&REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL)
CURACAO SPEC
LATIN AMERICA SPEC
ARUBA SPEC
CHILE SPEC
HAITI SPEC
48132SPRING, FRONT COIL, LH
REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL)
TRD SPORT PACKAGE
REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL)
CURACAO SPEC&REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL)
LATIN AMERICA SPEC&REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL)
ARUBA SPEC&REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL)
CHILE SPEC&REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL)
HAITI SPEC&REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL)
CURACAO SPEC
LATIN AMERICA SPEC
ARUBA SPEC
CHILE SPEC
HAITI SPEC
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
TRD OFFROAD PACKAGE
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
TRD OFFROAD PACKAGE
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-35600
MARK 48510-35610,TRD SPORT PACKAGE
MARK 48510-35560
MARK 48510-35570,TRD SPORT PACKAGE
MARK 48510-35580,LIMITED PACKAGE
MARK 48510-0W110,TRD OFFROAD PACKAGE
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-35600
MARK 48510-35610,TRD SPORT PACKAGE
MARK 48510-35560
MARK 48510-35570,TRD SPORT PACKAGE
MARK 48510-35580,LIMITED PACKAGE
MARK 48510-0W110,TRD OFFROAD PACKAGE
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
BELIZE SPEC&LIMITED PACKAGE
CURACAO SPEC&LIMITED PACKAGE
LATIN AMERICA SPEC&LIMITED PACKAGE
SAIPAN SPEC&TRD OFFROAD PACKAGE
ARUBA SPEC&LIMITED PACKAGE
CHILE SPEC&LIMITED PACKAGE
HAITI SPEC&LIMITED PACKAGE
LIMITED PACKAGE
TRD OFFROAD PACKAGE
TRD SPORT PACKAGE
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824BRACKET, STABILIZER, FRONT
48825BRACKET, STABILIZER, NO.2
9011914209
main90119-14209
9011914210
main90119-14210
9011916046
main90119-16046
9415121041
main94151-21041
19 parts on this diagram · 2 diagrams in section
