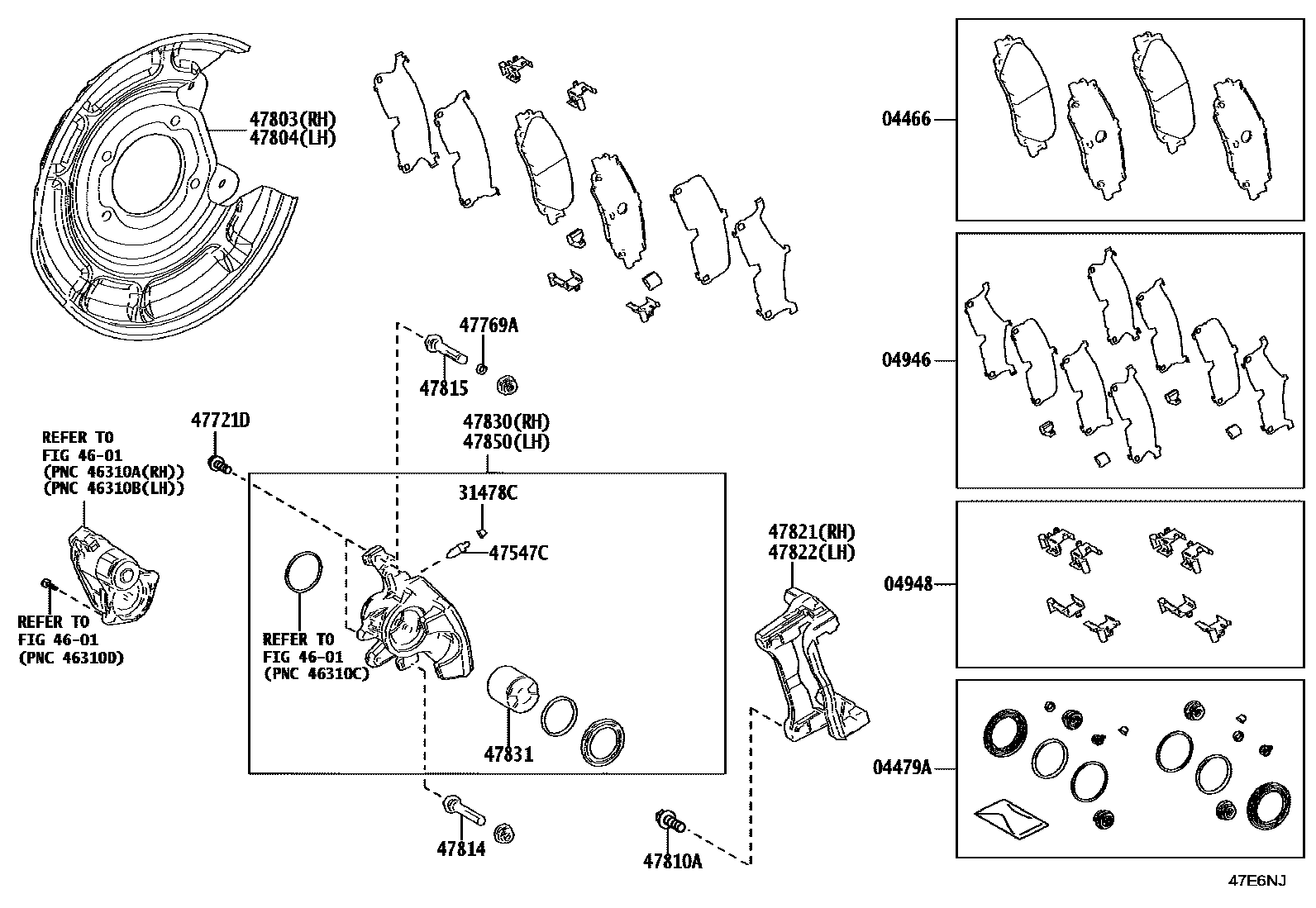

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-57010i¥8,000202412

MARK ADVICS VC107

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-60280i¥2,130202412

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-60150i¥1,780202412

04948FITTING KIT, DISC BRAKE, REAR

main04948-60050i¥1,390202412

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010i¥160202412

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12010i¥180202412

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA606i¥270202412

*10-1.00PX20-9

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-0E070i¥240202412

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-60012i¥15,900202412

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-60012i¥15,900202412

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-14169i¥240202412

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-60130i¥510202412

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-60130i¥510202412

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-60130i¥5,200202412

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-60120i¥5,200202412

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-60150i¥26,100202412

47831PISTON, REAR DISC BRAKE

main47831-60130i¥1,180202412

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-60150i¥26,100202412

19 parts on this diagram · 1 diagram in section
