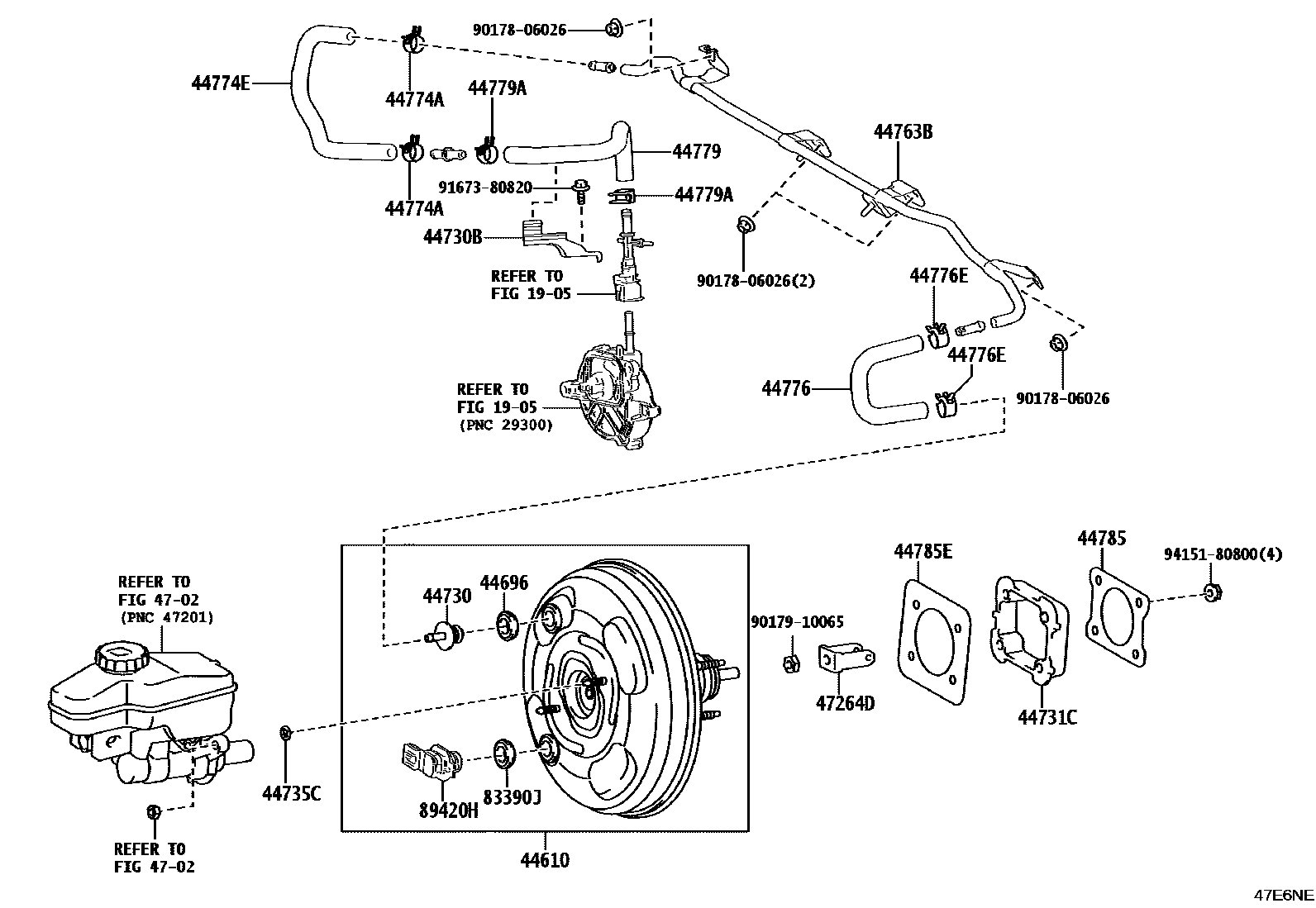

BRAKE BOOSTER & VACUUM TUBE
1905
44610BOOSTER ASSY, BRAKE
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730BCLAMP, VACUUM HOSE
44731CBRACKET, BRAKE BOOSTER
44735CRING, BOOSTER BRACKET STOPPER
44763BTUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)
44774EHOSE, UNION TO CONNECTOR TUBE
44776HOSE, BRAKE BOOSTER
44776ECLIP(FOR BRAKE BOOSTER HOSE)
44779HOSE, UNION TO CONNECTOR
44779ACLIP(FOR UNION TO CONNECTOR HOSE)
44785GASKET, BRAKE BOOSTER
44785EGASKET, BRAKE BOOSTER, NO.2
4702
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
83390JGROMMET, VACUUM WARNING SWITCH
89420HSENSOR ASSY, VACUUM
9017806026
main90178-06026
9017910065
main90179-10065
9167380820
main91673-80820
9415180800
main94151-80800
24 parts on this diagram · 1 diagram in section
