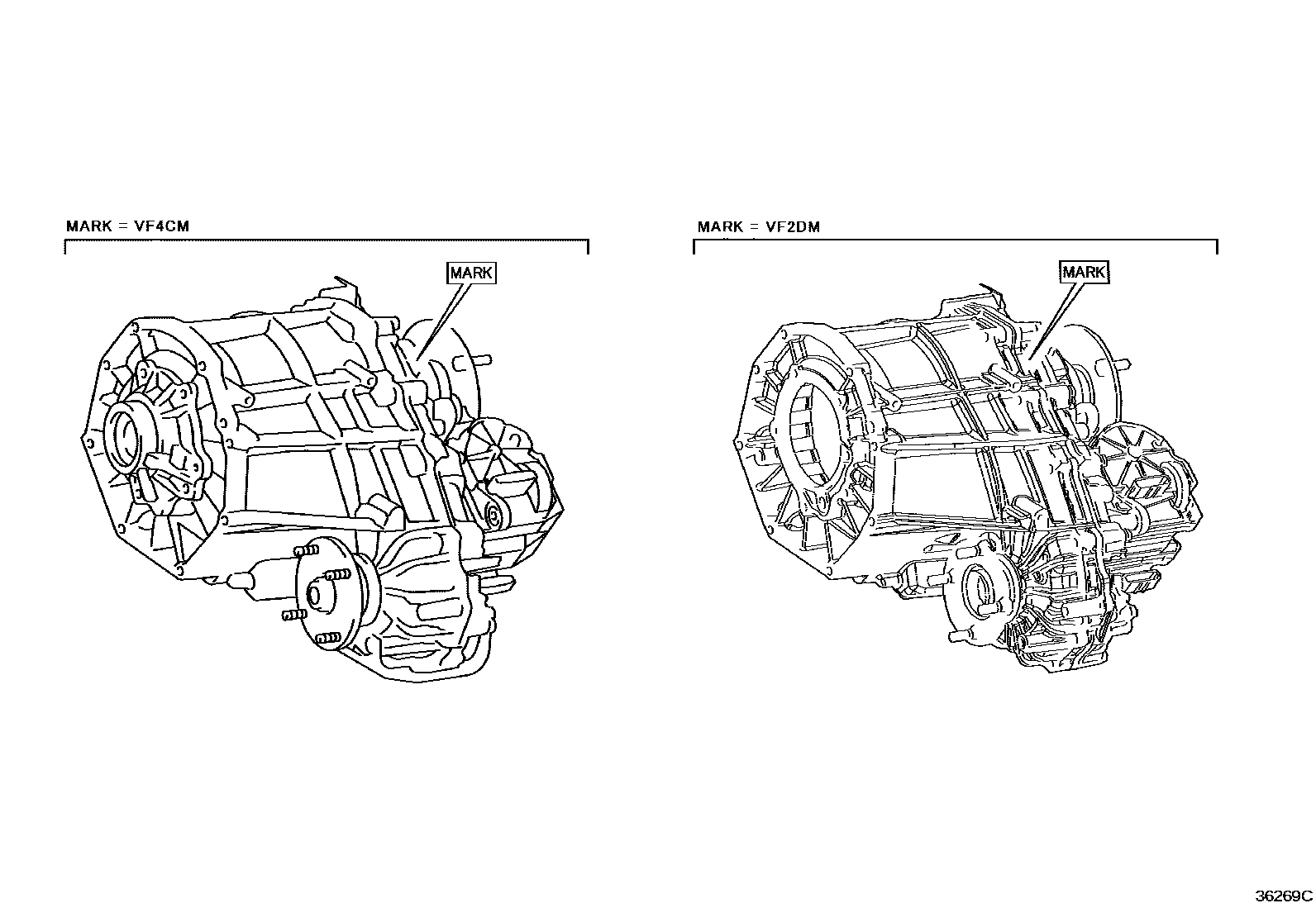

TRANSFER GEAR
33371DSPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER)
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36205SPROCKET SUB-ASSY, TRANSFER DRIVE
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36209RING SET, TRANSFER SYNCHRONIZER
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36210ABEARING (FOR TRANSFER INPUT SHAFT)
MARK=VF2DM
36211SHAFT, TRANSFER INPUT
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
T=1.45,MARK 1,MARK=VF2DM
T=1.50,MARK 2,MARK=VF2DM
T=1.55,MARK 3,MARK=VF2DM
T=1.60,MARK 4,MARK=VF2DM
T=1.65,MARK 5,MARK=VF2DM
36213STOPPER, TRANSFER INPUT GEAR
MARK=VF2DM
36213ABALL (FOR TRANSFER INPUT GEAR STOPPER)
MARK=VF2DM
36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)
T=2.10-2.15,MARK=VF2DM
T=2.15-2.20,MARK=VF2DM
T=2.20-2.25,MARK=VF2DM
T=2.25-2.30,MARK=VF2DM
T=2.30-2.35,MARK=VF2DM
T=2.35-2.40,MARK=VF2DM
T=2.40-2.45,MARK=VF2DM
T=2.45-2.50,MARK=VF2DM
T=2.50-2.55,MARK=VF2DM
T=2.55-2.60,MARK=VF2DM
T=2.60-2.65,MARK=VF2DM
T=2.65-2.70,MARK=VF2DM
T=2.70-2.75,MARK=VF2DM
T=2.75-2.80,MARK=VF2DM
T=2.80-2.85,MARK=VF2DM
T=2.85-2.90,MARK=VF2DM
T=2.90-2.95,MARK=VF2DM
T=2.95-3.00,MARK=VF2DM
T=3.00-3.05,MARK=VF2DM
36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1
MARK=VF2DM
36227AGEAR, TRANSFER OIL PUMP
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36231SHAFT, TRANSFER OUTPUT, REAR
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36231ASPACER (FOR TRANSFER OUTPUT SHAFT)
T=4.0,MARK=VF2DM
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
MARK=VF2DM
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
T=1.65,MARK=VF2DM
T=1.65,LIMITED PACKAGE,MARK=VF2DM
T=1.4,MARK=VF2DM
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36236SLEEVE, FRONT DRIVE CLUTCH
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36237HUB, TRANSFER CLUTCH
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36237ARING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)
T=2.10-2.15,MARK A,MARK=VF2DM
T=2.10-2.15,MARK A,LIMITED PACKAGE,MARK=VF2DM
T=2.15-2.20,MARK B,MARK=VF2DM
T=2.20-2.25,MARK C,MARK=VF2DM
T=2.25-2.30,MARK D,MARK=VF2DM
T=2.30-2.35,MARK E,MARK=VF2DM
T=2.35-2.40,MARK F,MARK=VF2DM
T=2.40-2.45,MARK G,MARK=VF2DM
T=2.45-2.50,MARK H,MARK=VF2DM
T=2.50-2.55,MARK J,MARK=VF2DM
T=2.00-2.05,MARK K,MARK=VF2DM
T=2.05-2.10,MARK L,MARK=VF2DM
36239HUB, TRANSFER DRIVE CLUTCH
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36248KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1
LIMITED PACKAGE
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36256SPACER, TRANSFER OUTPUT SHAFT, NO.2
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36270GEAR ASSY, TRANSFER LOW PLANETARY
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)
NO.1,MARK=VF2DM
NO.2,MARK=VF2DM
36270BRING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)
36270CRING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)
MARK=VF2DM
36270FGEAR ASSY, TRANSFER LOW PLANETARY, NO.2
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36273GEAR, TRANSFER LOW PLANETARY RING
MARK=VF2DM
36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36278WASHER, MANUAL TRANSFER PLANETARY CARRIER
T=0.91-1.09,MARK=VF2DM
36284PIECE, TRANSFER LOW PLANETARY GEAR SPLINE
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36288RACE, TRANSFER THRUST BEARING, NO.1
MARK=VF2DM
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36292SPROCKET, TRANSFER DRIVEN
MARK=VF2DM
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
NO.2,MARK=VF2DM
LIMITED PACKAGE,NO.2,MARK=VF2DM
NO.1,MARK=VF2DM
36293CHAIN, TRANSFER FRONT DRIVE
MARK=VF2DM
38 parts on this diagram · 2 diagrams in section
