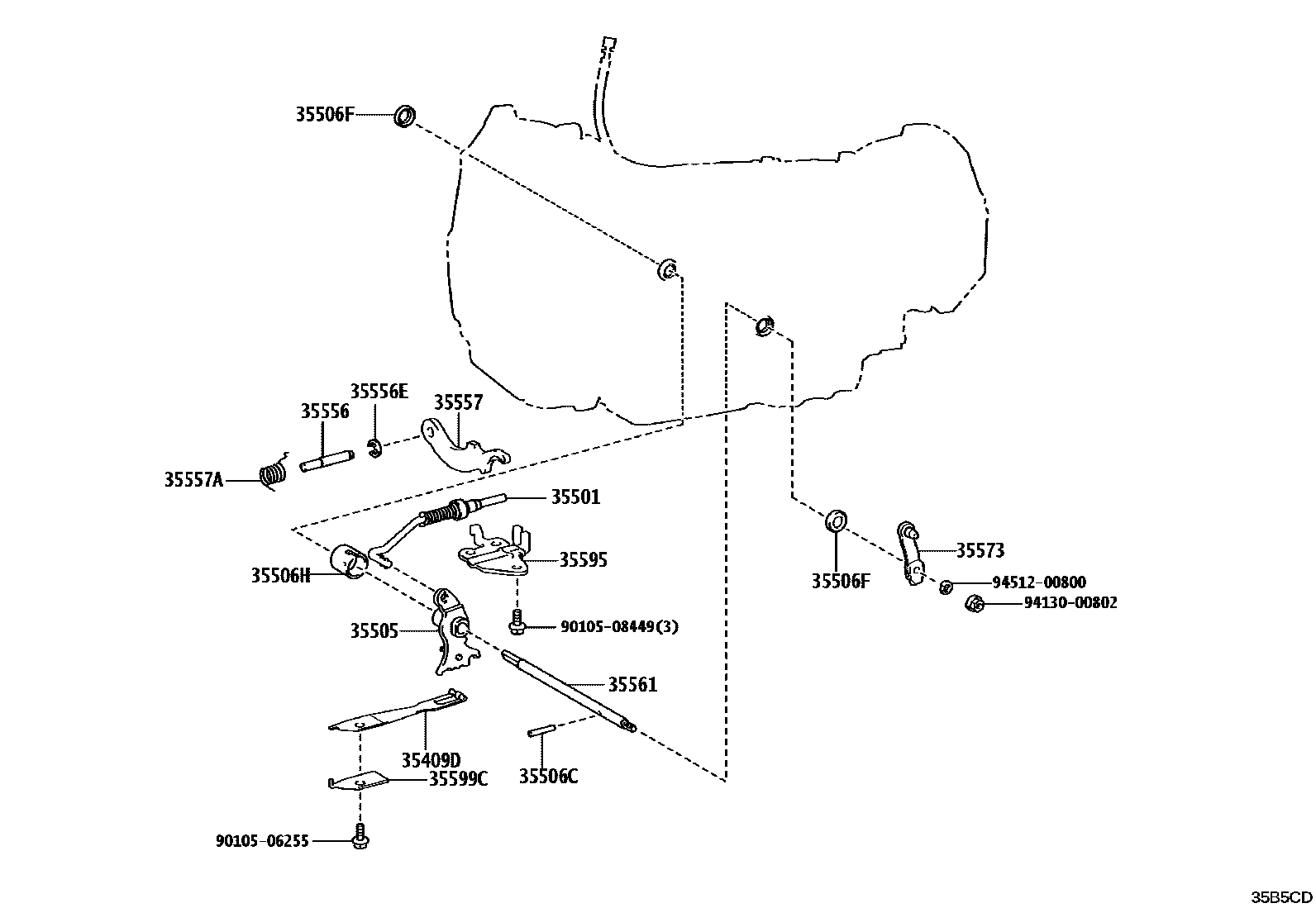

THROTTLE LINK & VALVE LEVER (ATM)
35409DSPRING SUB-ASSY, MANUAL DETENT
35501ROD SUB-ASSY, PARKING LOCK
35505LEVER SUB-ASSY, MANUAL VALVE
35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)
35556SHAFT, PARKING LOCK PAWL
35556ERING, E (FOR PARKING LOCK PAWL SHAFT)
35557PAWL, PARKING LOCK
35557ASPRING, TORSION (FOR PARKING LOCK PAWL)
35561SHAFT, MANUAL VALVE LEVER
35573LEVER, TRANSMISSION CONTROL SHAFT, LH
35595BRACKET, PARKING LOCK PAWL
35599CCOVER, MANUAL DETENT SPRING
9010506255
main90105-06255
9010508449
main90105-08449
9413000802
main94130-00802
9451200800
main94512-00800
18 parts on this diagram · 1 diagram in section
