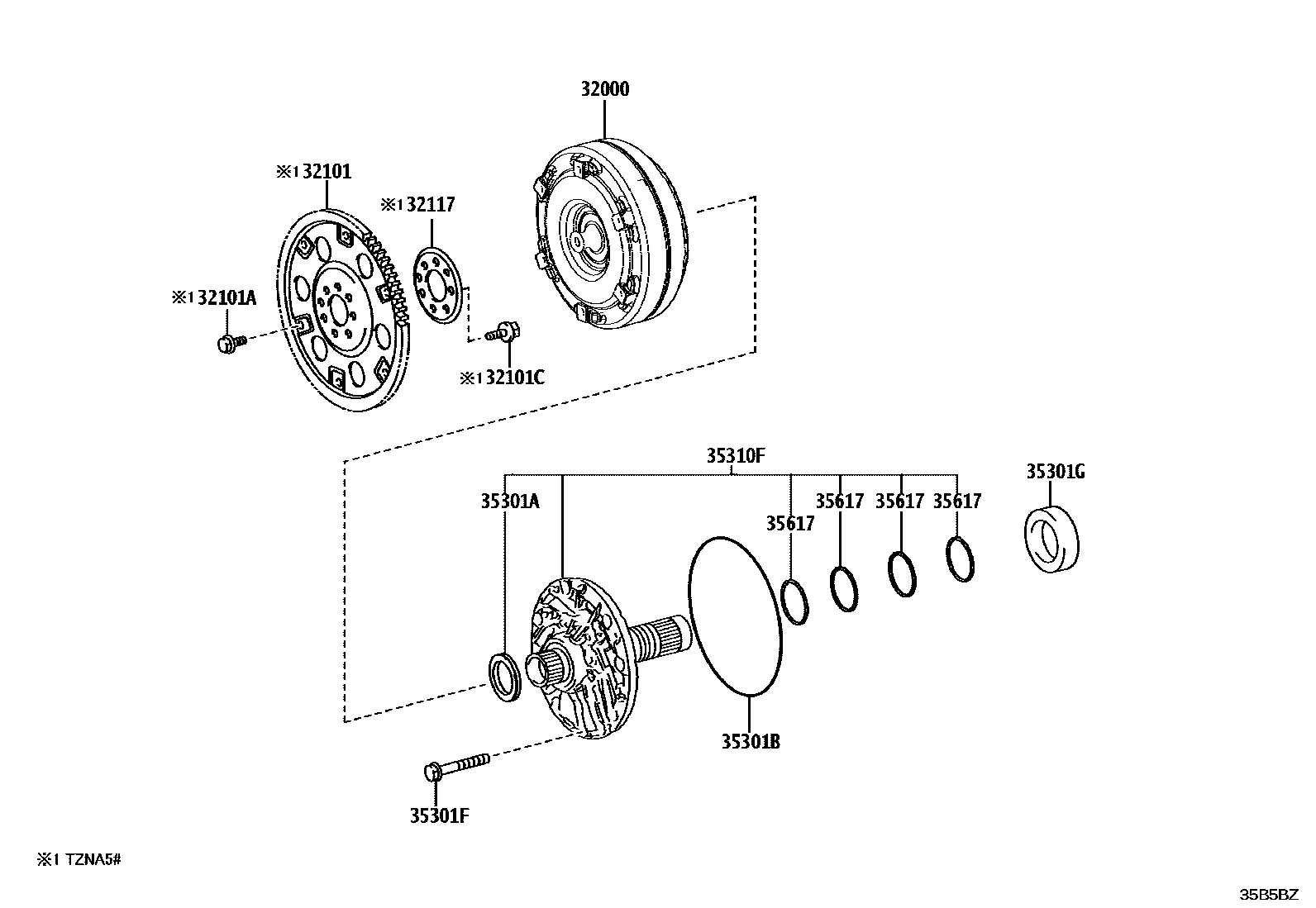

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-60420iTZNA5#202412

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-60120iTZNA5#202412

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90119-09026iTZNA5#202412

*9-1.25PX12.8-9,BLACK

main90119-09027×5iTZNA5#202412

*9-1.25PX12.8-8.8,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404×8iTZNA5#202412

*12-1.25PX20.3-14.3

32117SPACER, DRIVE PLATE, REAR

main32117-33010iTZNA5#202412

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-43014iTZNA5#202412

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-60010iTZNA5#202412

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091×10iTZNA5#202412

*8-1.25PX35-35

35301GBEARING,NEEDLE ROLLER

main90364-49008iTZNA5#202412

35310FPUMP ASSY, FRONT OIL

main35310-60140iTZNA5#202412

35617RING, CLUTCH DRUM OIL SEAL

main35617-60130×4iTZNA5#202412

11 parts on this diagram · 1 diagram in section
