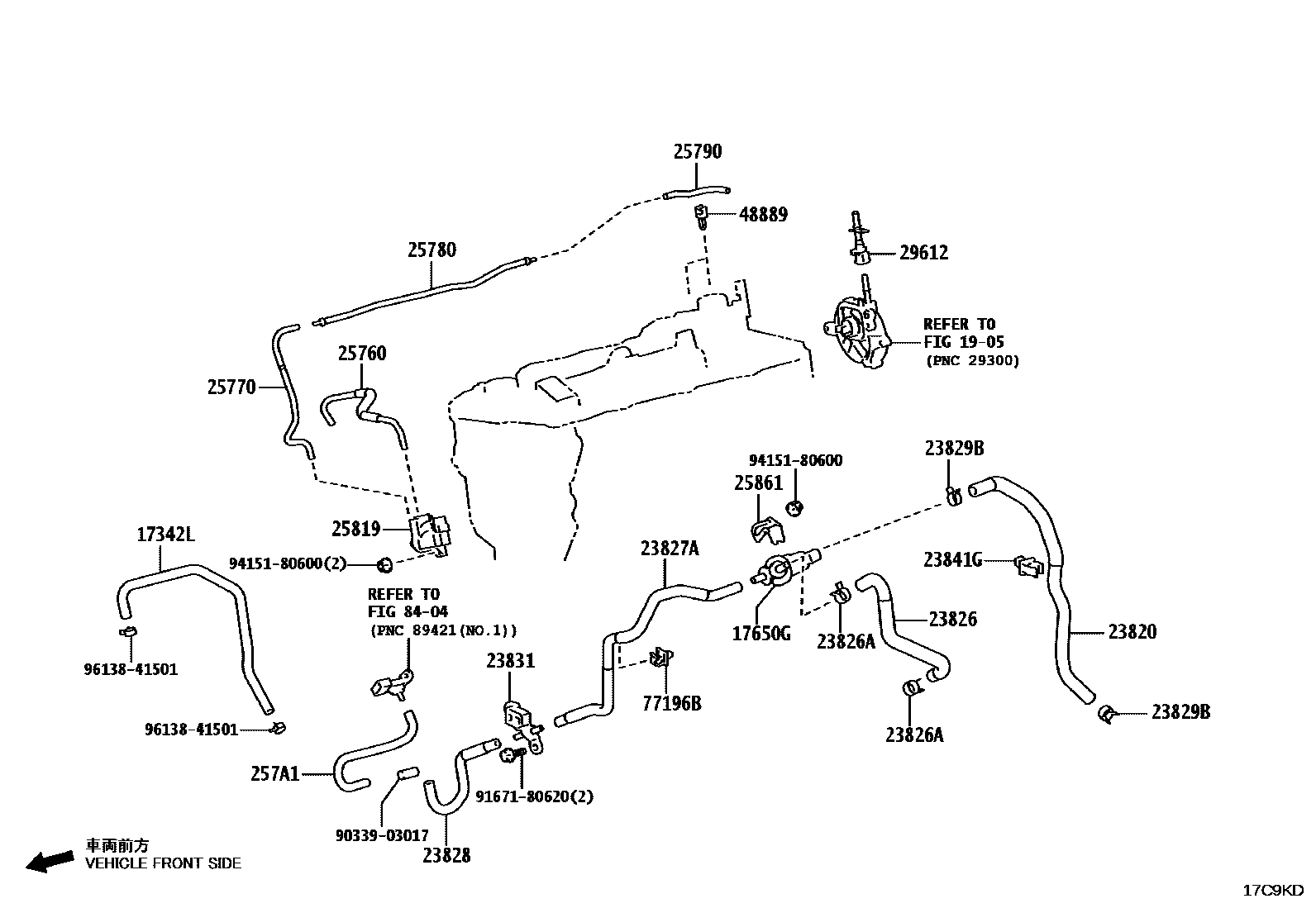

VACUUM PIPING
17342LHOSE, AIR, NO.2
17650GVALVE, DUTY VACUUM SWITCHING
1905
23820HOSE ASSY, FUEL VAPOR FEED
23826HOSE, FUEL VAPOR FEED, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
23827AHOSE, FUEL VAPOR FEED, NO.2
23828HOSE, FUEL VAPOR FEED, NO.3
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
23831CONNECTOR, FUEL VAPOR FEED, NO.1
23841GCLAMP, FUEL HOSE
25760HOSE ASSY, VACUUM TRANSMITTING
25770HOSE ASSY, VACUUM TRANSMITTING, NO.2
25780HOSE ASSY, VACUUM TRANSMITTING, NO.3
25790HOSE ASSY, VACUUM TRANSMITTING, NO.4
257A1HOSE, VACUUM TRANSMITTING, NO.5
25819VALVE ASSY, VACUUM REGULATING
25861BRACKET, VACUUM SWITCHING VALVE
29612CONNECTOR, VACUUM PUMP
48889CLAMP, STABILIZER CONTROL TUBE
77196BCLAMP, EVAPORATION VENT TUBE, NO.1
8404
9033903017
main90339-03017
9167180620
main91671-80620
9415180600
main94151-80600
9613841501
main96138-41501
26 parts on this diagram · 1 diagram in section
