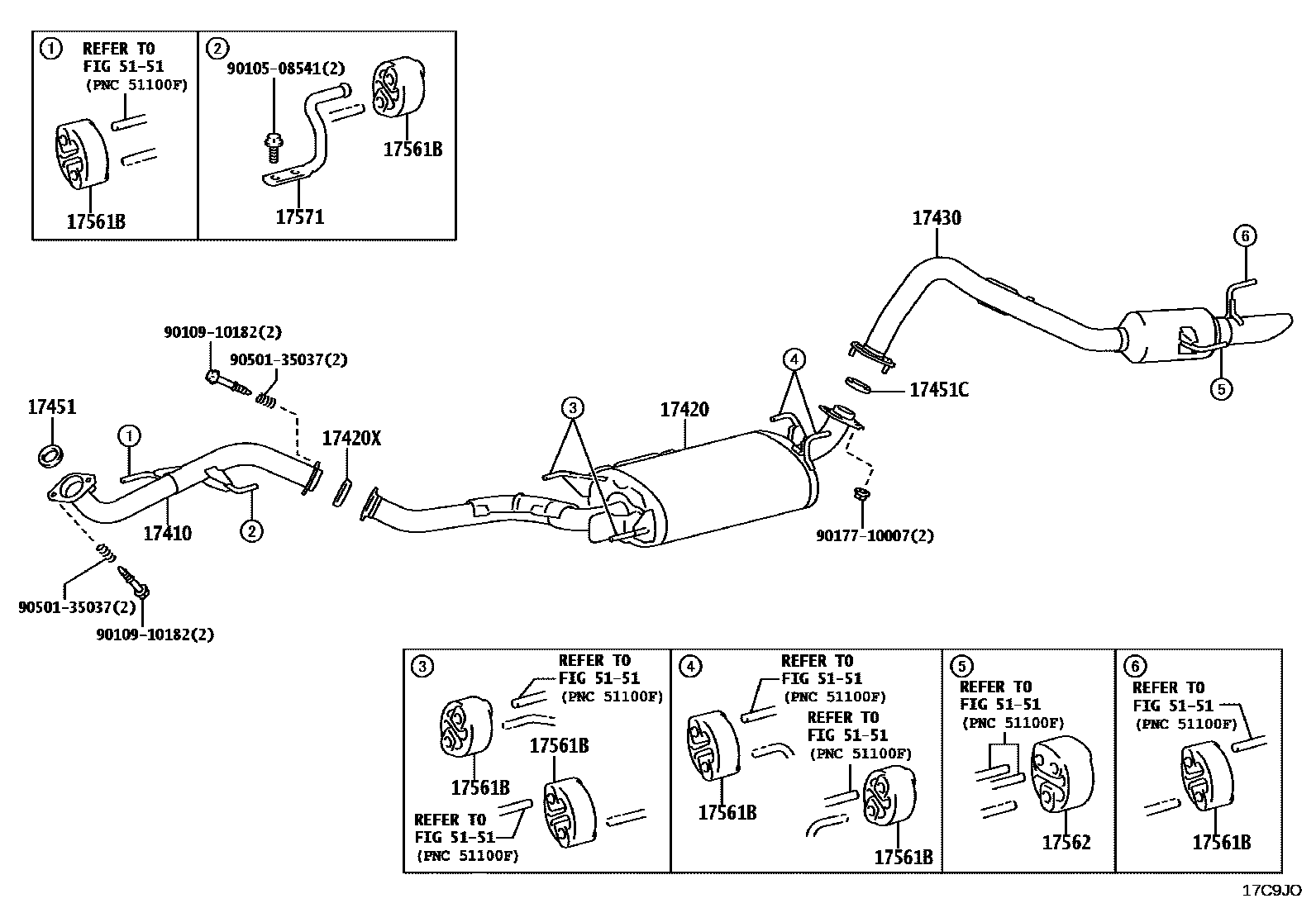

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17451CGASKET, EXHAUST PIPE, NO.3
17561BSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
5151
9010508541
main90105-08541
9010910182
main90109-10182
9017710007
main90177-10007
9050135037
main90501-35037
14 parts on this diagram · 1 diagram in section
