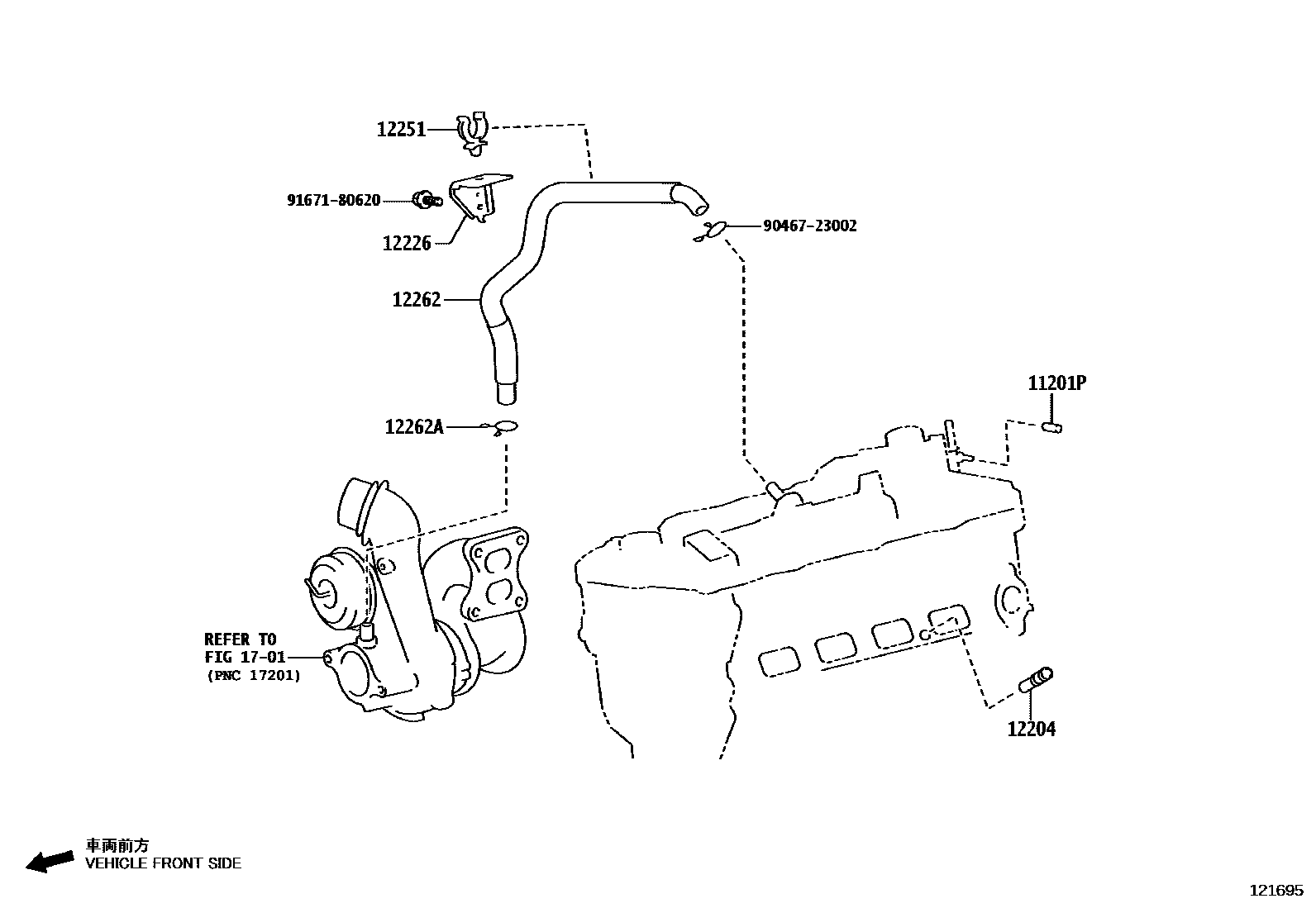

VENTILATION HOSE

0001 1W/O(PCV PRESSURE SENSOR) 0002 1W(PCV PRESSURE SENSOR)

11201PPLUG(FOR CYLINDER HEAD COVER)

main90339-03017iT24..TZNA5#202412

12204VALVE SUB-ASSY, VENTILATION

main12204-25030iT24..TZNA5#202412

12226BRACKET, VENTILATION HOSE

main12226-25020iT24..TZNA5#202412

12251CLAMP, VENTILATION TUBE

main12251-25010iT24..TZNA5#202412

12262HOSE, VENTILATION, NO.2

main12262-25140iT24..TZNA5#202412

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004iT24..TZNA5#202412

1701

9046723002

main90467-23002

9167180620

main91671-80620

9 parts on this diagram · 2 diagrams in section
