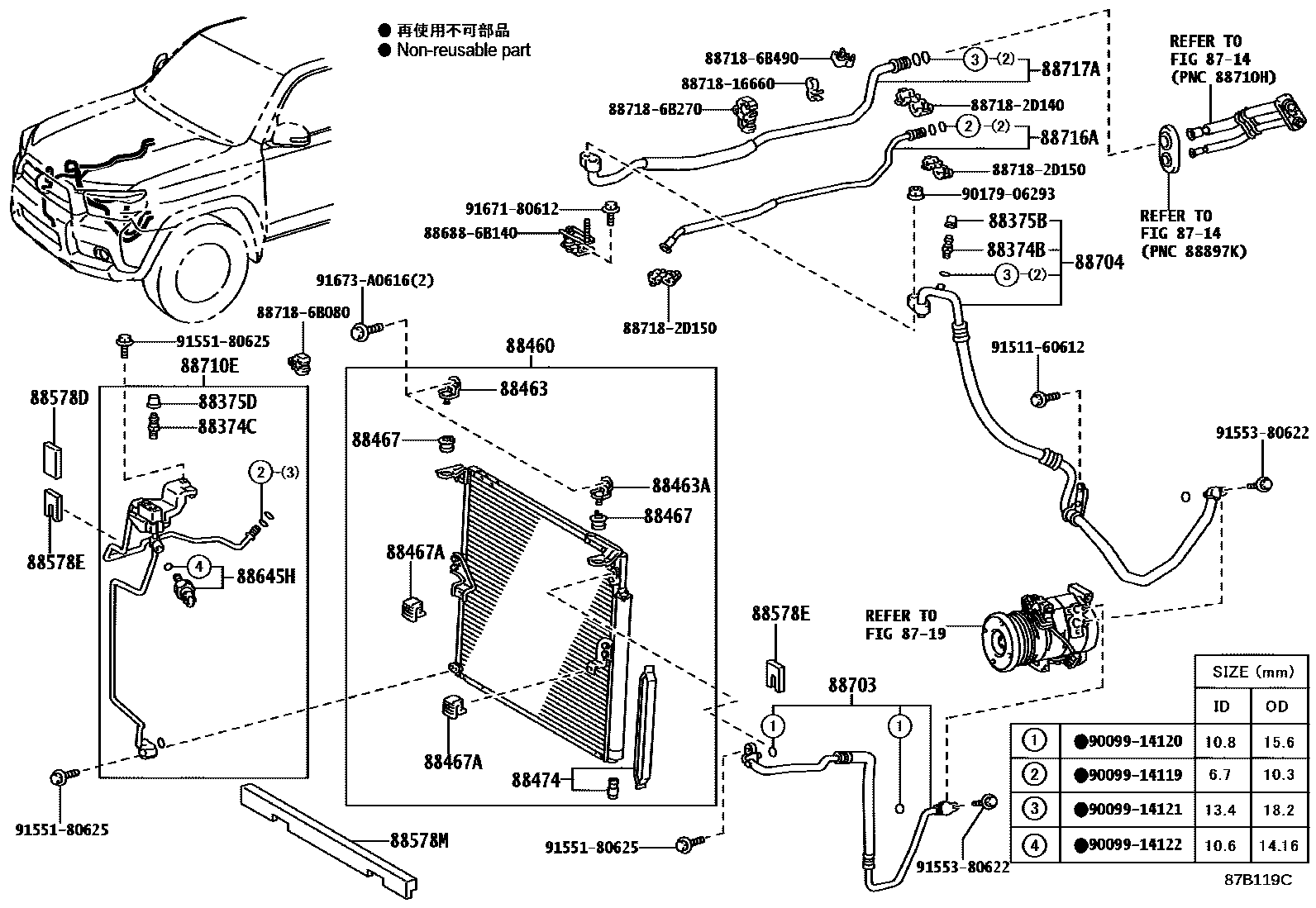

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iTRN28#200908-201908

88374CVALVE, SERVICE, NO.2

main88374-30010iTRN28#200908-201908

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iTRN28#200908-202008

main88375-30310iGRN28#202008

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iTRN28#200908-202008

main88375-30320iGRN28#202008

88460CONDENSER ASSY, COOLER

main88460-60430iGRN28#200908-202008

main88460-60440iTRN28#200911-201108

main88460-60480iGRN28#202008

88463BRACKET, COOLER CONDENSER, NO.1

main88463-60010iTRN28#200908-201908

88463ABRACKET, COOLER CONDENSER, NO.2

main88463-60020iTRN28#200908-201908

88467CUSHION, COOLER CONDENSER, NO.1

main88467-28050iTRN28#200908-201908

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-35080iTRN28#200908-201908

88474DRYER, COOLER

main88474-17010iTRN28#200908-201908

88578DPACKING, COOLER PIPE, NO.1

main88578-60460iGRN28#,TRN28#200908-201108

sub88578-60461

main88578-60461iGRN28#201109-201412

sub88578-60550

main88578-60550iGRN28#201501-201908

88578EPACKING, COOLER PIPE, NO.2

main88578-60470iGRN28#,TRN28#200908-201108

main88578-60471iGRN28#201109-201412

sub88578-60540

main88578-60540iGRN28#201501-201908

88578MPACKING, COOLING PIPE, NO.3

main88578-60480iTRN28#200908-201908

88645HSWITCH, PRESSURE NO.1

main88645-26030iTRN28#200908-202008

main88645-60060iGRN28#202008

88703HOSE SUB-ASSY, DISCHARGE

main88703-35090iGRN28#202008

main88703-60230iGRN28#200908-202007

sub88703-60231

main88703-60250iTRN28#200911-201108

88704HOSE SUB-ASSY, SUCTION

main88704-35090iGRN28#202008

main88704-60450iGRN28#200908-202007

sub88704-60451

main88704-60470iTRN28#200911-201108

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-35750iTRN28#200908-201608

main88710-60B10iGRN28#201608-202008

main88710-60G90iGRN28#202008

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-6C530iTRN28#200908-202008

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-6B220iTRN28#200908-202008

886886B140BRACKET, COOLER DIAPHRAGM

main88688-6B140

8871816660PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-16660

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

887186B080PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-6B080

887186B270PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-6B270

887186B490PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-6B490

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9017906293

main90179-06293

9151160612

main91511-60612

9155180625

main91551-80625

9155380622

main91553-80622

9167180612

main91671-80612

91673A0616

main91673-A0616

38 parts on this diagram · 3 diagrams in section
