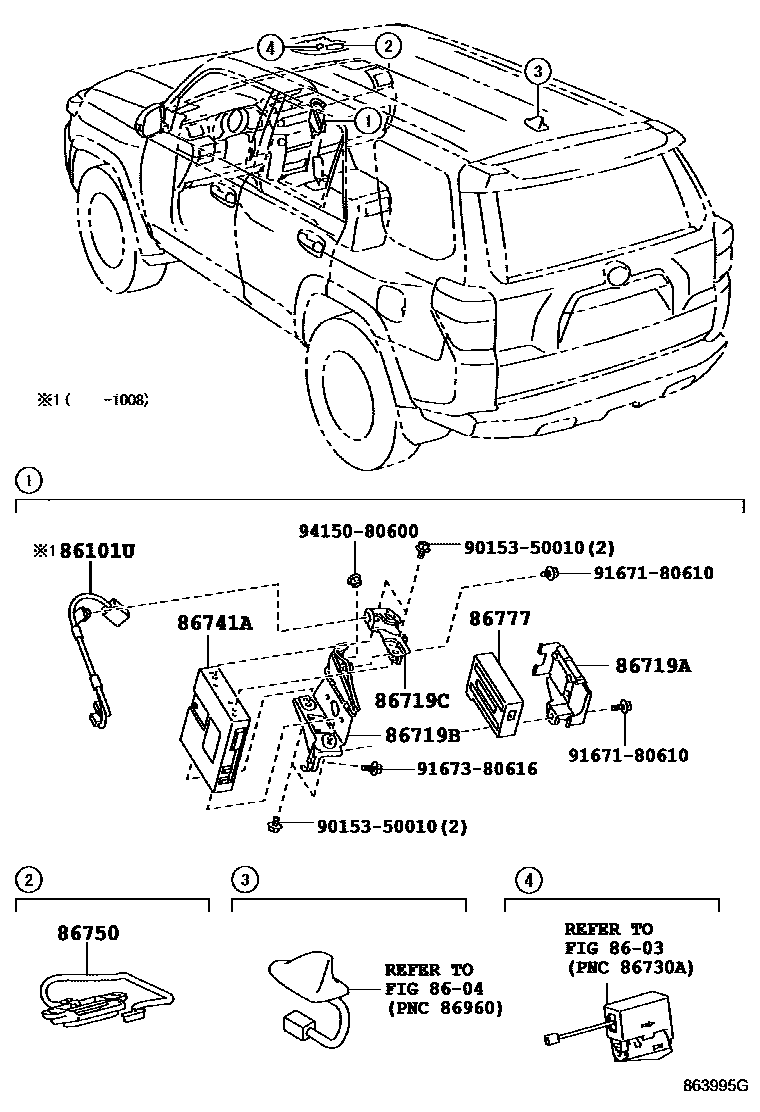

TELEPHONE & MAYDAY
8603
8604
86101UCORD SUB-ASSY, ANTENNA
86719ABRACKET, TELEPHONE NO.1
86719BBRACKET, TELEPHONE NO.2
86719CBRACKET, TELEPHONE NO.3
86741ATRANSCEIVER, TELEMATICS
USA POSSESSION(OCEANIA) SPEC& LIMITED PACKAGE&AUDIO-*DA & NAVIGATION & 15SPEAKER
sub86741-42071
86750SWITCH ASSY, TELEPHONE
9015350010
main90153-50010
9167180610
main91671-80610
9167380616
main91673-80616
9415080600
main94150-80600
13 parts on this diagram · 2 diagrams in section
