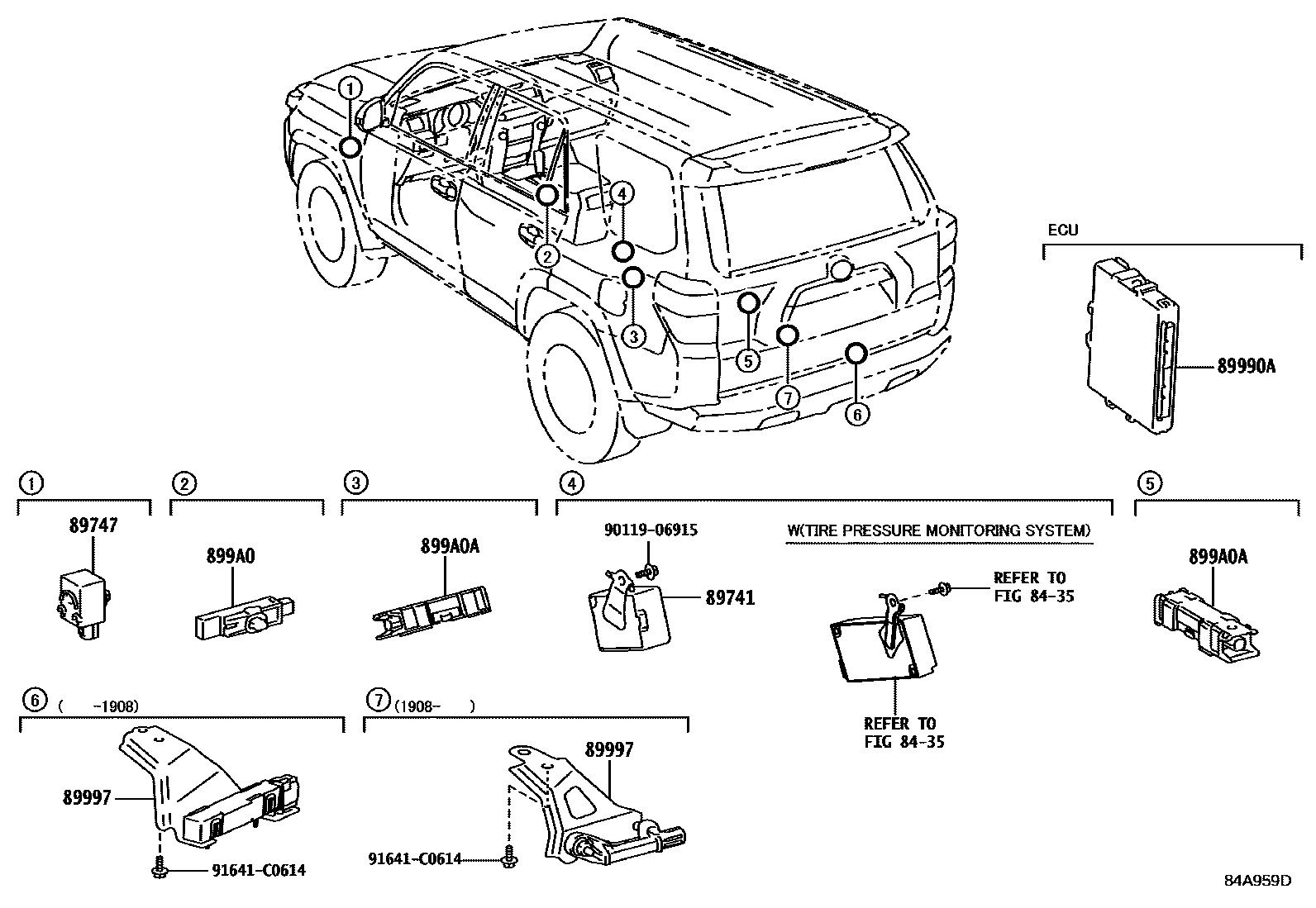

WIRELESS DOOR LOCK

8435

89741RECEIVER, DOOR CONTROL

main89741-35060iTRN28#200908-201108

main89741-35060iGRN28#200908-201908

LIMITED PACKAGE

main89741-35060iGRN28#201308-201908

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iTRN28#200908-201908

main89747-30040iGRN28#200908-201308

LIMITED PACKAGE

89990ACOMPUTER ASSY, SMART KEY

main899H0-35010iGRN28#202108-202111

WIRELESS DOOR LOCK-WITH

main899H0-35020iGRN28#202111

89997ANTENNA, ELECTRICAL KEY

main89997-35020iGRN28#202108

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-60010iGRN28#202108

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-60020iGRN28#202108

9011906915

main90119-06915

91641C0614

main91641-C0614

9 parts on this diagram · 1 diagram in section
