METER

0001 1 0002 1

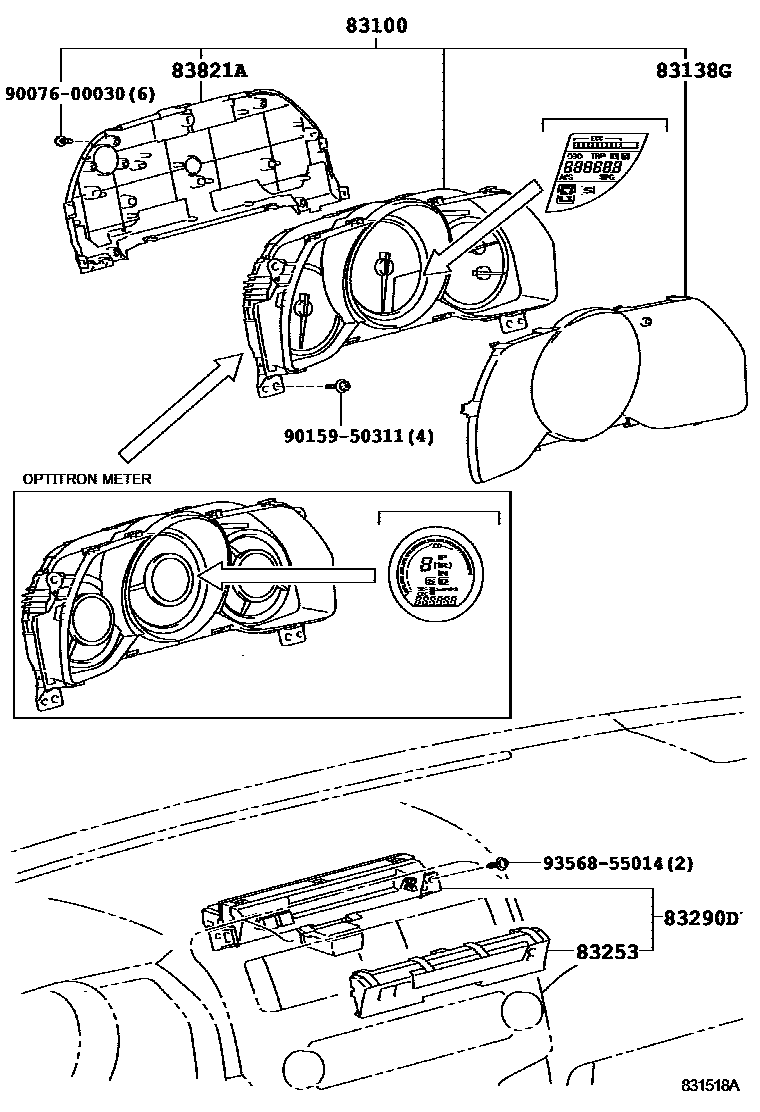

83100METER ASSY, COMBINATION

main83800-35J60iGRN28#200908-201007

sub83800-35M90

main83800-35K90iTRN280200911-201007

sub83800-35N60

main83800-35M90iGRN28#201008-201110

main83800-35M91iGRN28#201110-201308

main83800-35N60iTRN28#201008-201108

main83800-35P70iGRN280201308-201408

main83800-35P90iGRN285201308-201408

main83800-35R30iGRN28#201908-202108

YAZAKI

main83800-35R50iGRN285201408-201508

main83800-35S00iGRN280201408-201508

main83800-35S10iGRN280201508-201908

main83800-35S50iGRN285201508-201908

main83800-35U40iGRN28#202108

YAZAKI

83138GGLASS, COMBINATION METER

main83852-35J60iGRN28#200908-201308

main83852-35P70iGRN28#201308-201908

main83852-35S20iGRN28#201908

83253GLASS, CENTER DISPLAY

main83253-35040iGRN28#,TRN280200908-201006

sub83253-35041

main83253-35041iTRN28#201006-201308

main83253-35110iGRN28#201308-201908

83290DMETER ASSY, ACCESSORY

main83290-35050iTRN28#200908-201308

main83290-35110iGRN28#201308-201908

83821ACOVER, COMBINATION METER, NO.1

main83821-35J60iTRN28#200908-201308

main83821-35P70iGRN28#201308-201908

9007600030

main90076-00030

9015950311

main90159-50311

9356855014

main93568-55014

8 parts on this diagram · 2 diagrams in section
