BATTERY & BATTERY CABLE

28800BATTERY

main28800-54020i1GRFE..GRN28#201308-201908

80D26L

sub28800-67102

main28800-74143i1GRFE..GRN28#202303

80D26L

28800ATERMINAL, BATTERY POSITIVE

main90982-05069i2TRFE..TRN28#200908-201108

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-60041i1GRFE..GRN28#201908

main82821-60270i1GRFE..GRN28#201308-201908

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i2TRFE..TRN28#200908-201108

28897PLATE, BATTERY CAUTION

main28897-24020i1GRFE..GRN285202304

CANADA SPEC

main28897-46020i1GRFE..GRN285200908-201308

CANADA SPEC

8202

9415180801

main94151-80801

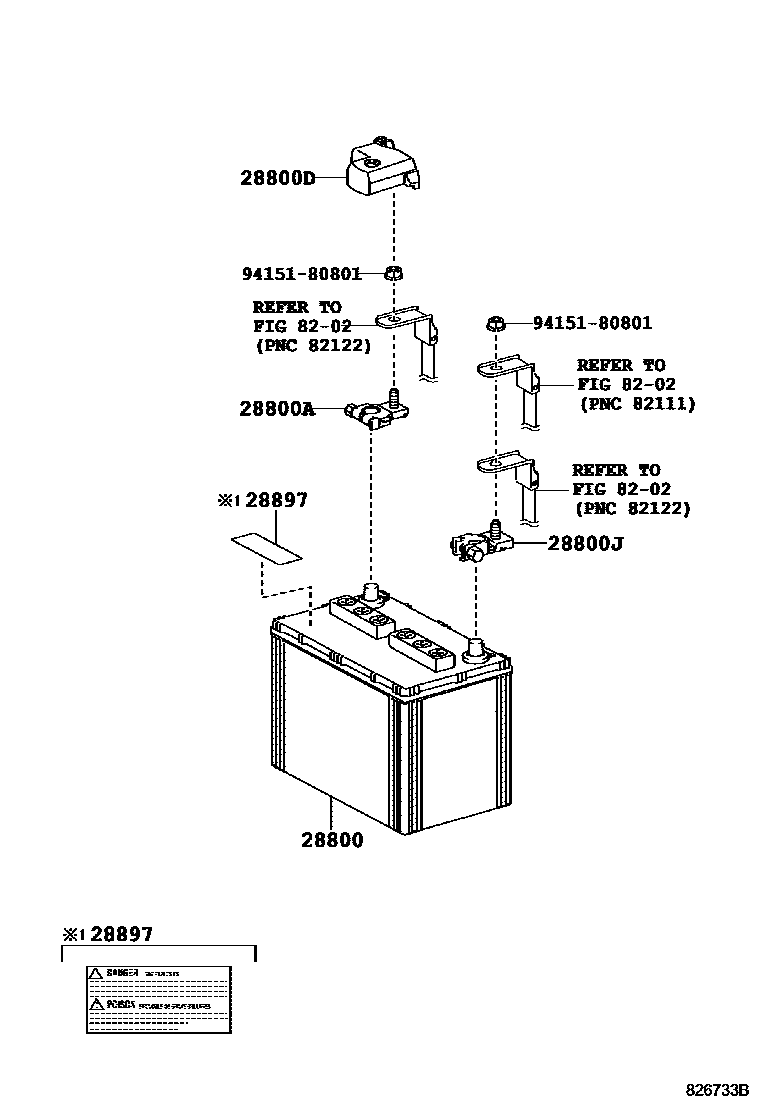

7 parts on this diagram · 1 diagram in section
