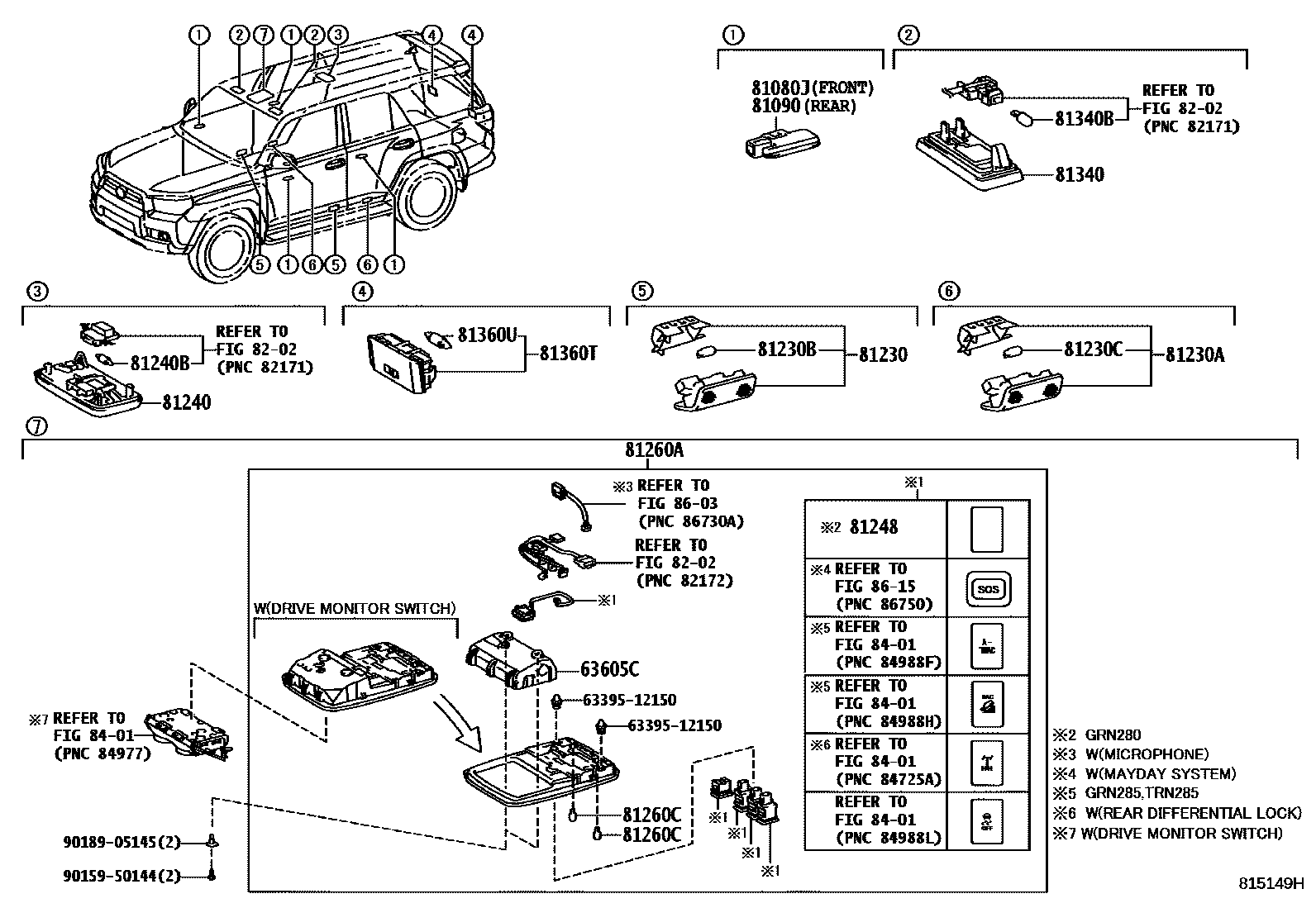

INTERIOR LAMP

63605CBOX SUB-ASSY, ROOF CONSOLE

main63605-35010-B0iGRN28#200908-201308

LT.GRAY,TRIM1#,22

main63605-35010-B0iGRN28#201308-201908

LT.GRAY,TRIM2#

main63605-35010-E0iTRN28#200908-201308

SAND BEIGE,TRIM23,4#

main63605-35010-E0iGRN28#201308-201908

SAND BEIGE,TRIM4#

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-35010

main81080-35020

main81080-50040

main81080-50050

81230LAMP ASSY, COURTESY

main81230-30200iGRN28#201308-201908

81230ALAMP ASSY, COURTESY, NO.2

main81230-30200iGRN28#201308-201907

81230BBULB(FOR COURTESY LAMP)

main90981-12010iGRN28#201308-201908

12V 5W

81230CBULB(FOR COURTESY LAMP NO.2)

main90981-12010iGRN28#201308-201907

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-35020-B0iTRN28#200911-201108

LT.GRAY,TRIM1#

sub81240-35020

sub81240-42020

main81240-35020-B0iGRN28#200908-201308

LT.GRAY,TRIM1#,22

sub81240-35020

sub81240-42020

main81240-35020-B0iGRN28#201308-201905

LT.GRAY,TRIM2#

sub81240-35020

sub81240-42020

main81240-35020-E0iTRN28#200911-201905

SAND BEIGE,TRIM4#

sub81240-35020

sub81240-42020

main81240-35020-E0iGRN28#200908-201308

SAND BEIGE,TRIM23,4#

sub81240-35020

sub81240-42020

main81240-42020-B0iGRN28#201906-201908

LT.GRAY,TRIM2#

main81240-42020-E0iGRN28#201906-201908

SAND BEIGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iTRN28#200908-201908

12V 8W

81248COVER, ROOM LAMP, NO.1

main55539-58060-C0iTRN280200908-201908

BLACK

81260ALAMP ASSY, MAP

main81260-35430-B0iGRN280200908-201107

LT.GRAY,TRIM1#,22

sub81260-35431

main81260-35430-B0iTRN280200911-201107

LT.GRAY,TRIM1#

sub81260-35431

main81260-35430-E0iTRN280200911-201107

SAND BEIGE,TRIM4#

sub81260-35431

main81260-35430-E0iGRN280200908-201107

SAND BEIGE,TRIM23,4#

sub81260-35431

main81260-35431-B0iGRN280201108-201308

LT.GRAY,TRIM1#

main81260-35431-E0iGRN280201108-201308

SAND BEIGE,TRIM4#

main81260-35460-B0iGRN285200908-201107

LT.GRAY,TRIM1#,22

sub81260-35461

main81260-35460-B0iTRN285201008-201107

LT.GRAY,TRIM1#

sub81260-35461

main81260-35460-E0iTRN285201008-201107

SAND BEIGE,TRIM4#

sub81260-35461

main81260-35460-E0iGRN285200908-201107

SAND BEIGE,TRIM23,4#

sub81260-35461

main81260-35461-B0iGRN285201108-201308

LT.GRAY,TRIM1#

main81260-35461-E0iGRN285201108-201308

SAND BEIGE,TRIM4#

main81260-35490-B0iGRN280201908

LT.GRAY,TRIM2#

main81260-35490-E0iGRN280201908

SAND BEIGE,TRIM4#

main81260-35520-B0iGRN280201308-201412

LT.GRAY,TRIM2#

sub81260-35521

main81260-35520-E0iGRN280201308-201412

SAND BEIGE,TRIM4#

sub81260-35521

main81260-35521-B0iGRN280201501-201908

LT.GRAY,TRIM2#

main81260-35521-E0iGRN280201501-201908

SAND BEIGE,TRIM4#

main81260-35590-B0iGRN285201308-201412

LT.GRAY,TRIM2#

sub81260-35591

main81260-35590-E0iGRN285201308-201412

SAND BEIGE,TRIM4#

sub81260-35591

main81260-35591-B0iGRN285201501-201908

LT.GRAY,TRIM2#

main81260-35591-E0iGRN285201501-201908

SAND BEIGE,TRIM4#

main81260-35710-B0iGRN285201908

LT.GRAY,TRIM2#

main81260-35710-E0iGRN285201908

SAND BEIGE,TRIM4#

81260CBULB(FOR MAP LAMP)

main90084-81002iGRN28#200908-201908

12V 5W

81340LAMP ASSY, VANITY

main81340-30100-B0iGRN28#200908-201308

LT.GRAY,TRIM1#,22

main81340-30100-B0iTRN28#200911-201108

LT.GRAY,TRIM1#

main81340-30100-E2iTRN28#200911-201108

SAND BEIGE,TRIM4#

main81340-30100-E2iGRN28#200908-201308

SAND BEIGE,TRIM23,4#

main81340-30110iGRN28#201308-201908

81340BBULB (FOR VANITY LAMP)

main90981-11062iGRN28#200908-201908

12V 8W

81360TLAMP ASSY, SPOT

main81360-35010-B0iTRN28#200911-201108

LT.GRAY,TRIM1#,4#

main81360-35010-B0iGRN28#200908-201308

LT.GRAY,TRIM1#,2#,4#

main81360-35010-B0iGRN28#201308-201908

LT.GRAY,TRIM2#,4#

81360UBULB, SPOT LAMP

main90981-14011iTRN28#200908-201908

8202

8401

8603

8615

6339512150CLIP, ROOF HEADLINING TRIM

main63395-12150

9015950144

main90159-50144

9018905145

main90189-05145

23 parts on this diagram · 1 diagram in section
