SEAT BELT

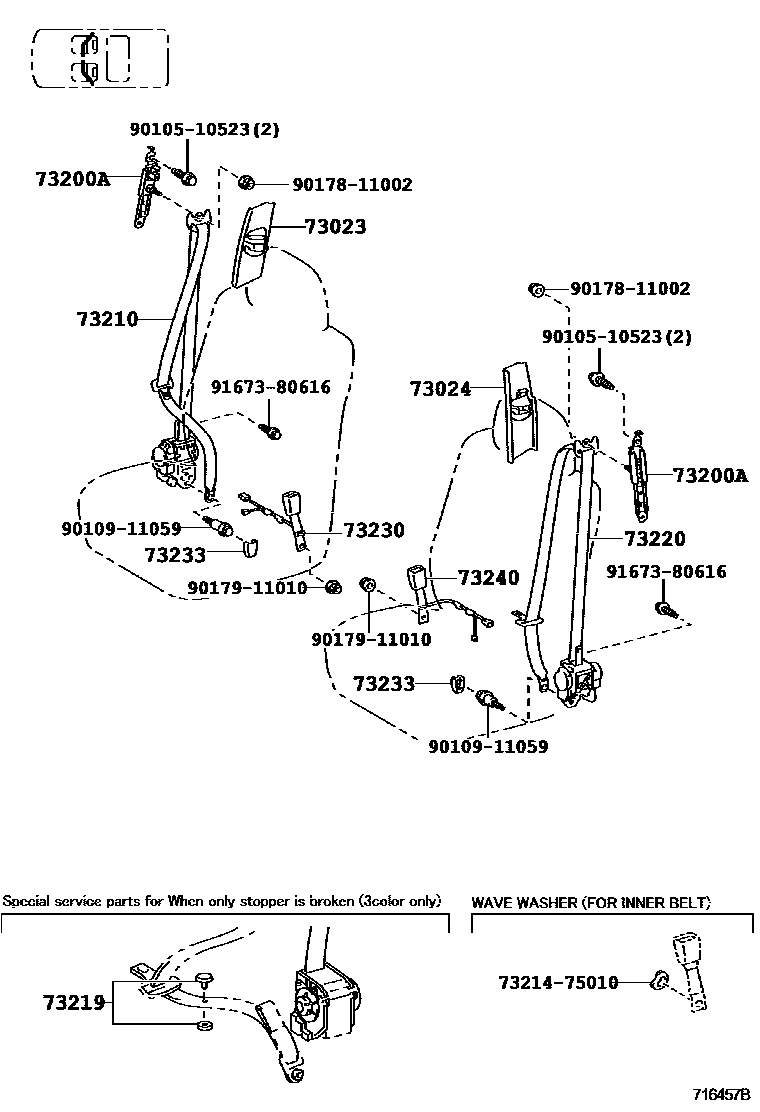

Parts diagram

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-53020-B0i201308-201908

LT.GRAY,TRIM2#

main73023-53020-B0i200911-201108

LT.GRAY,TRIM1#

main73023-53020-B0i200908-201308

LT.GRAY,TRIM1#,22

main73023-53020-E1i200911-201908

SAND BEIGE,TRIM4#

main73023-53020-E1i200908-201308

SAND BEIGE,TRIM23,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-53020-B0i200908-201308

LT.GRAY,TRIM1#,22

main73024-53020-B0i200911-201108

LT.GRAY,TRIM1#

main73024-53020-B0i201308-201908

LT.GRAY,TRIM2#

main73024-53020-E1i200911-201908

SAND BEIGE,TRIM4#

main73024-53020-E1i200908-201308

SAND BEIGE,TRIM23,4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070i¥3,200201301-201908

main73200-53010i¥3,020200908-201212

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-35A11-A1i200908-201008

IVORY,TRIM23,4#

main73210-35A11-C0i200908-201008

BLACK/LT.GRAY,TRIM1#,22

main73210-35A60-A0i201008-201308

IVORY,TRIM23,4#

main73210-35A60-A0i201308-201908

IVORY,TRIM4#

main73210-35A60-C0i201008-201308

BLACK,TRIM1#,22

main73210-35A60-C0i201308-201908

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-02010i¥80200908-201908

BLACK

main73219-02020i¥80200908-201908

GRAY

main73219-02030i¥80200908-201908

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-35771-A1i200908-201008

IVORY,TRIM23,4#

sub73220-35840¥26,200

main73220-35771-C0i200908-201008

BLACK,TRIM1#,22

sub73220-35840¥26,200

main73220-35840-A0i201008-201308

IVORY,TRIM23,4#

main73220-35840-A0i201308-201908

IVORY,TRIM4#

main73220-35840-C0i201008-201308

BLACK,TRIM1#,22

main73220-35840-C0i201308-201908

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-35870-A0i200908-201308

IVORY,TRIM23,4#

main73230-35870-A0i201308-201908

IVORY,TRIM4#

main73230-35870-C0i201308-201908

BLACK,TRIM2#

main73230-35870-C0i200908-201308

BLACK,TRIM1#,22

73233COVER, LAP BELT OUTER ANCHOR

main73233-35010-C0i201308-201702

BLACK,TRIM2#,4#

main73233-35010-C0i201003-201308

BLACK,TRIM1#,4#

main73233-35010-C1i201702-201908

BLACK,TRIM2#,4#

main73233-60020-C0i200911-201002

BLACK,TRIM1#,4#

sub73233-60020¥500

sub73233-35010¥620

main73233-60020-C0i200908-201002

BLACK,TRIM1#,2#,4#

sub73233-60020¥500

sub73233-35010¥620

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-60530-A0i200908-201308

IVORY,TRIM4#

main73230-60530-C0i200908-201308

BLACK,TRIM1#

main73230-60540-A0i201308-201908

IVORY,TRIM4#

main73230-60540-C0i201308-201908

BLACK,TRIM2#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010¥170

9010510523

main90105-10523¥100

9010911059

main90109-11059¥240

9017811002

main90178-11002¥100

9017911010

main90179-11010¥110

9167380616

main91673-80616¥60

15 parts on this diagram · 3 diagrams in section
