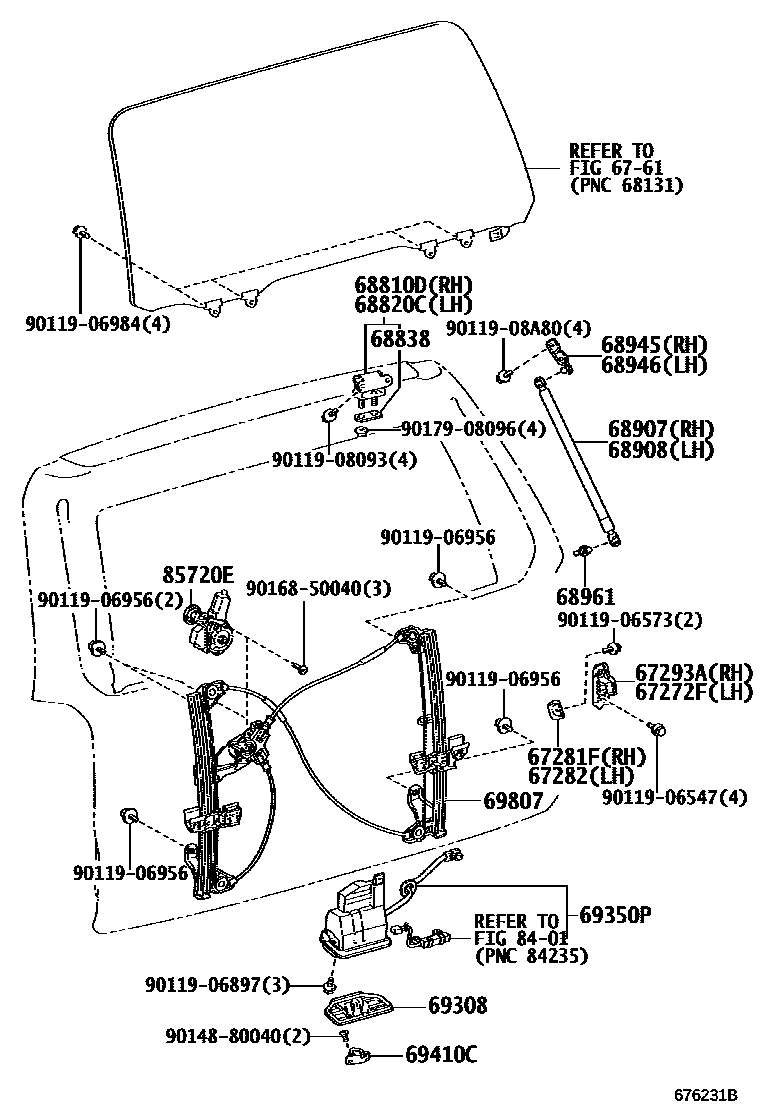

BACK DOOR LOCK & HINGE
67272FCUSHION, BACK DOOR STOPPER, NO.2
67281FSTOPPER, BACK DOOR, LOWER
67282STOPPER, BACK DOOR, NO.1
67293ACUSHION, BACK DOOR STOPPER
6761
68810DHINGE ASSY, BACK DOOR, RH
PAD T=1.0
PAD T=1.0
PAD T=1.0
68820CHINGE ASSY, BACK DOOR, LH
PAD T=1.0
PAD T=1.0
PAD T=1.0
68838PAD, BACK DOOR HINGE, NO.1
T=2.0,T=2.0
T=2.0
T=1.0,T=1.0
T=1.0
T=1.6
T=1.6,T=1.6
68907STAY SUB-ASSY, BACK DOOR DAMPER, RH
AUDIO-*DA & NAVIGATION & 15SPEAKER
AUDIO-JBL
AUDIO-AVN+JBL
AUDIO-AVN & JBL
sub68907-0W101
68908STAY SUB-ASSY, BACK DOOR DAMPER, LH
AUDIO-AVN+JBL
AUDIO-JBL
AUDIO-AVN & JBL
AUDIO-*DA & NAVIGATION & 15SPEAKER
sub68908-0W101
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68961BOLT, BACK DOOR STAY
69308PROTECTOR SUB-ASSY, BACK DOOR LOCK
69410CPLATE ASSY, BACK DOOR LOCK STRIKER
69807REGULATOR SUB-ASSY, BACK DOOR POWER WINDOW
8401
9011906547
main90119-06547
9011906573
main90119-06573
9011906897
main90119-06897
9011906956
main90119-06956
9011906984
main90119-06984
9011908093
main90119-08093
9011908A80
main90119-08A80
9014880040
main90148-80040
9016850040
main90168-50040
9017908096
main90179-08096
29 parts on this diagram · 1 diagram in section
