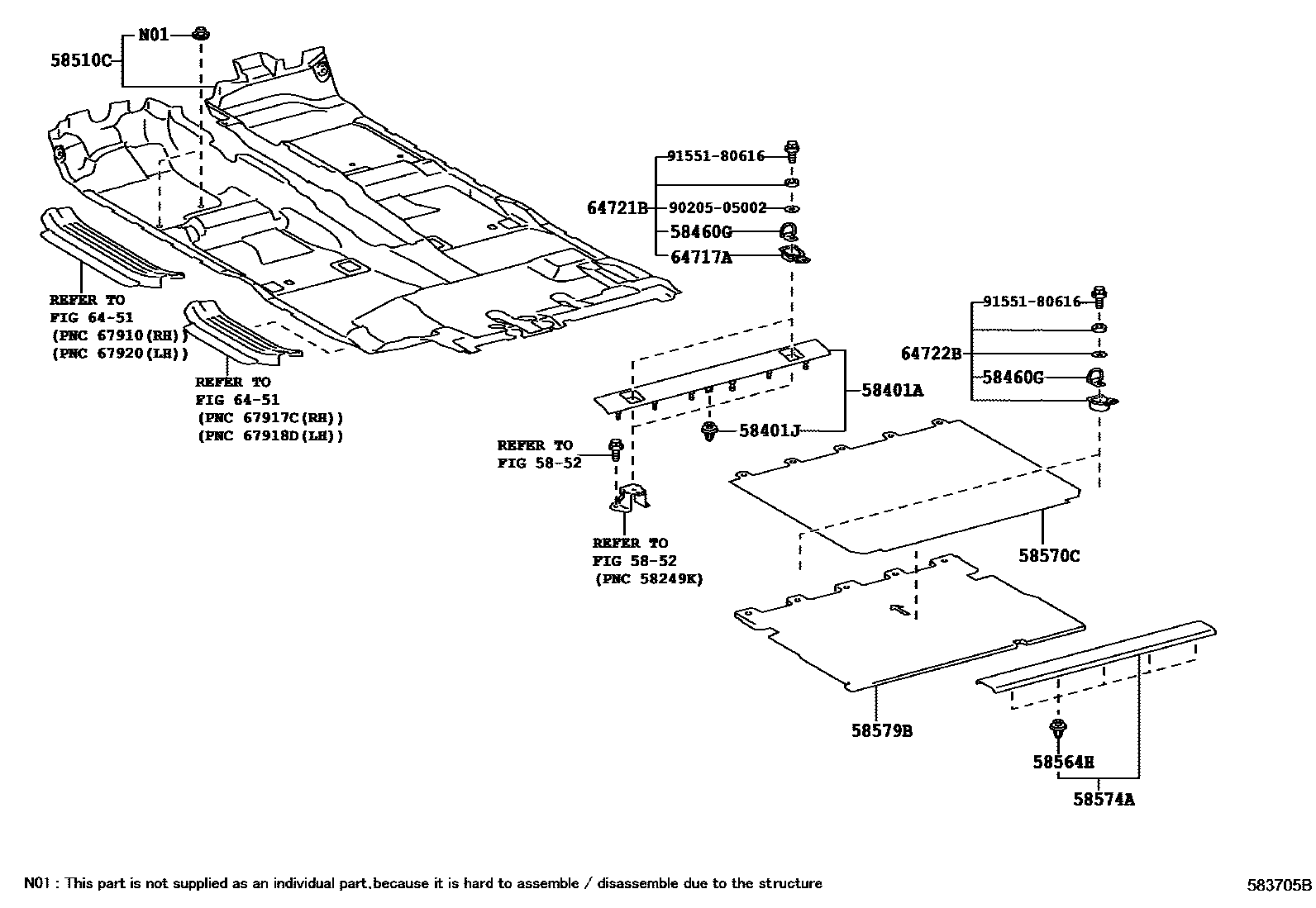

FLOOR MAT & SILENCER PAD
58401ABOARD SUB-ASSY, DECK, NO.1
BLACK,TRIM1#,4#
BLACK,TRIM2#,4#
58401JCLIP(FOR DECK BOAD)
BLACK
58460GSTRIKER ASSY, LUGGAGE HOLD BELT
58510CCARPET ASSY, FRONT FLOOR, FRONT
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,4#
BLACK,TRIM1#,2#,4#
5852
58564HCLIP(FOR REAR FLOOR CARPET)
58570CCARPET ASSY, REAR FLOOR
BLACK,TRIM2#,4#
58574APLATE, REAR FLOOR MAT SUPPORT, REAR
BLACK,TRIM2#,4#
BLACK,TRIM1#,4#
BLACK,TRIM1#,2#,4#
6451
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2
BLACK,TRIM1#,4#
TRAIL PACKAGE&DECK CARPET-WITH(SLIDE DECK)&SEAT COVER MATERIAL-FABRIC(WATER-PROOF,POWER SEAT),BLACK,TRIM1#,2#,4#
TRAIL PACKAGE&DECK CARPET-WITH(SLIDE DECK)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2#,4#
LIMITED PACKAGE&DECK CARPET-WITH(SLIDE DECK)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2#,4#
SR5 PACKAGE&DECK CARPET-WITH(SLIDE DECK),BLACK,TRIM1#,2#,4#
SR5 PACKAGE&DECK CARPET-WITH(SLIDE DECK)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2#,4#
SR5 PACKAGE&DECK CARPET-WITH(SLIDE DECK)&SEAT COVER MATERIAL-FABRIC(POWER SEAT),BLACK,TRIM1#,2#,4#
APPEARANCE PACKAGE(SR5)&DECK CARPET-WITH(SLIDE DECK),BLACK,TRIM1#,2#,4#
APPEARANCE PACKAGE(SR5)&DECK CARPET-WITH(SLIDE DECK)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2#,4#
APPEARANCE PACKAGE(SR5)&DECK CARPET-WITH(SLIDE DECK)&SEAT COVER MATERIAL-FABRIC(POWER SEAT),BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
DECK CARPET & MAT-WITH(SLIDE DECK),BLACK,TRIM2#,4#
9020505002
main90205-05002
9155180616
main91551-80616
15 parts on this diagram · 6 diagrams in section
