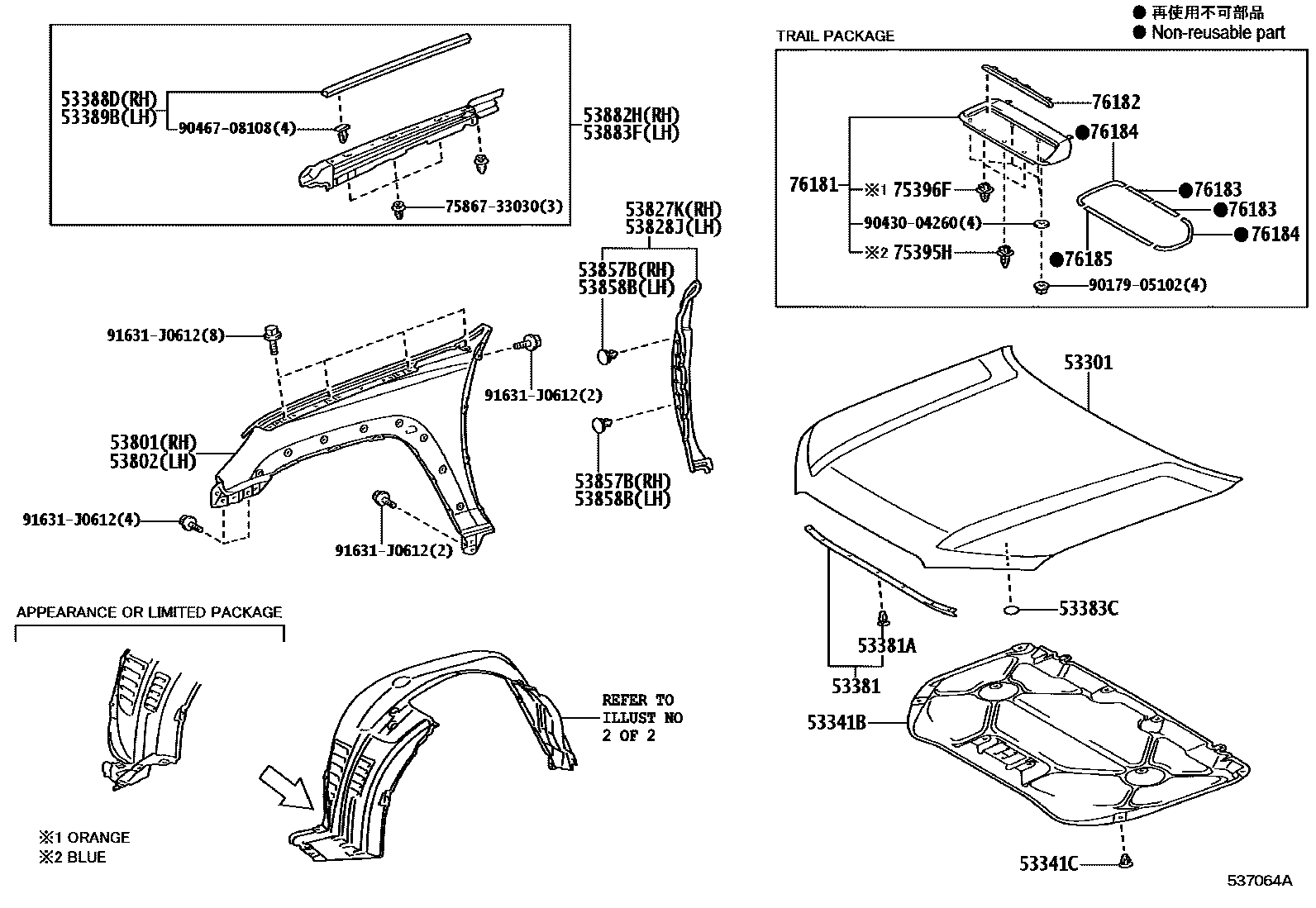

HOOD & FRONT FENDER

0001 1 0002 1 0003 1FENDER LINER 0004 1FENDER LINER

53301HOOD SUB-ASSY

main53301-35200iGRN28#201110-201908

main53301-35220iGRN28#,TRN28#200908-201110

sub53301-35200

53341BINSULATOR, HOOD

main53341-35160iGRN28#201408-201807

sub53341-35161

main53341-35161iGRN28#201808-201908

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iGRN28#201408-201908

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-60140iTRN28#200908-201908

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iTRN28#200908-201908

53383CSEAL, HOOD TO COWL TOP

main90950-06096iGRN28#201405-201908

main90950-06124iGRN28#200908-201404

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-35020iTRN28#200908-201908

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-35010iTRN28#200908-201908

53801FENDER SUB-ASSY, FRONT RH

main53801-35620iGRN28#,TRN28#200908-201110

sub53811-35420

main53811-35420iGRN28#201110-201308

main53811-35430iGRN28#201308-201908

53802FENDER SUB-ASSY, FRONT LH

main53802-35710iGRN28#,TRN28#200908-201110

sub53812-35510

main53812-35510iGRN28#201110-201908

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-35050iGRN28#200908-201908

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-35070iTRN28#200908-201908

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iGRN28#201102-201908

main90467-06205-C0iGRN28#,TRN28#200908-201101

BLACK

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iGRN28#201102-201908

main90467-06205-C0iGRN28#,TRN28#200908-201101

BLACK

53882HSEAL, FRONT FENDER MAIN, RH

main53807-35120iTRN28#200908-201908

53883FSEAL, FRONT FENDER MAIN, LH

main53808-35120iTRN28#200908-201908

75395HCLIP, OUTSIDE MOULDING, NO.1

75396FCLIP, OUTSIDE MOULDING, NO.2

76181BULGE, HOOD

main76181-35080

main76181-35902

76182GUIDE, HOOD AIR INTAKE

main76182-35080

76183PROTECTOR, HOOD BULGE, NO.1

main76183-35030

76184PROTECTOR, HOOD BULGE, NO.2

main76183-35040

76185PROTECTOR, HOOD BULGE, NO.3

main76185-35030

7586733030MOULDING, FRONT PANEL

main75867-33030

9017905102

main90179-05102

9043004260

main90430-04260

9046708108

main90467-08108

91631J0612

main91631-J0612

28 parts on this diagram · 4 diagrams in section
