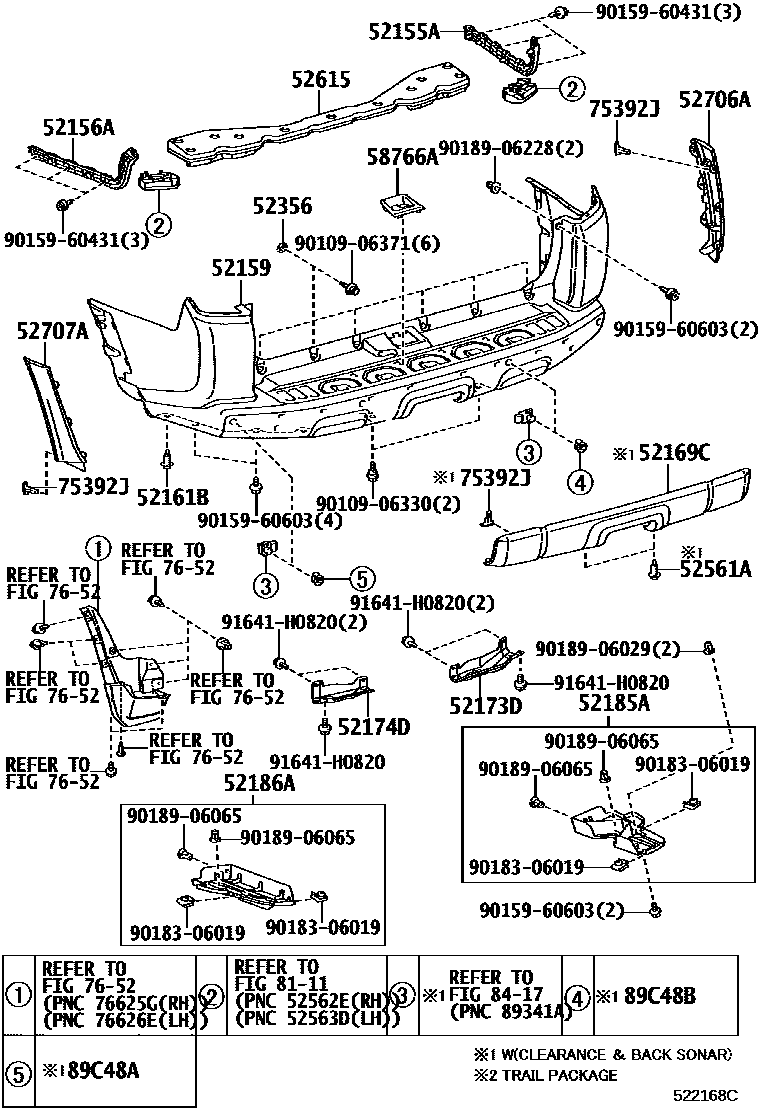

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52161BPIECE, REAR BUMPER
52169CCOVER, REAR BUMPER, LOWER
52173DREINFORCEMENT, REAR BUMPER BAR, RH
52174DREINFORCEMENT, REAR BUMPER BAR, LH
52185ABRACKET, REAR BUMPER SIDE, RH
52186ABRACKET, REAR BUMPER SIDE, LH
52356CUSHION, REAR BUMPER STEP
52615ABSORBER, REAR BUMPER ENERGY
52706AMOULDING SUB-ASSY, REAR BUMPER SIDE, RH
52707AMOULDING SUB-ASSY, REAR BUMPER SIDE, LH
58766ACOVER, JACK BOX HOLE
75392JRETAINER, OUTSIDE MOULDING
TRAIL PACKAGE
LIMITED PACKAGE&TOWING HITCH-WITH
BLUE
TRD PRO PACKAGE,BLUE
TRD OFF ROAD,BLUE
NATURAL
TRD PRO PACKAGE,NATURAL
TRD OFF ROAD,NATURAL
7652
8111
8417
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9010906330
main90109-06330
9010906371
main90109-06371
9015960431
main90159-60431
9015960603
main90159-60603
9018306019
main90183-06019
9018906029
main90189-06029
9018906065
main90189-06065
9018906228
main90189-06228
91641H0820
main91641-H0820
30 parts on this diagram · 4 diagrams in section
