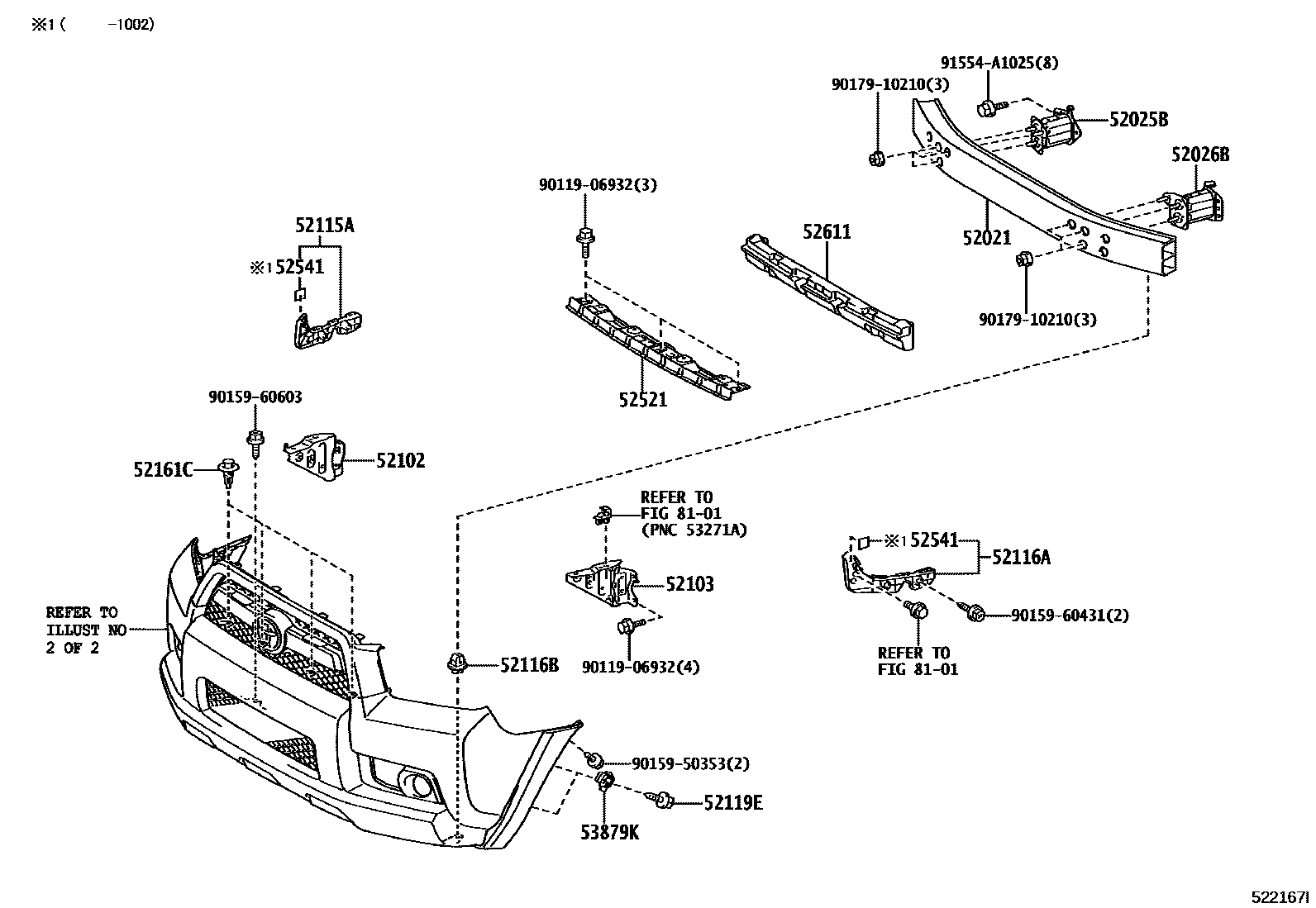

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
sub52021-35180
sub52021-35100
NIGHTSHADE EDITION
LIMITED PACKAGE
TRD SPORT SPECIAL EDITION
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
52102BRACKET SUB-ASSY, FRONT BUMPER, RH
52103BRACKET SUB-ASSY, FRONT BUMPER, LH
52115ASUPPORT, FRONT BUMPER SIDE, RH
APPEARANCE PACKAGE(SR5)
LIMITED PACKAGE
sub52115-35151
sub52115-35152
sub52115-35153
52116ASUPPORT, FRONT BUMPER SIDE, LH
APPEARANCE PACKAGE(SR5)
LIMITED PACKAGE
sub52116-35151
sub52116-35152
sub52116-35153
52116BRETAINER, FRONT BUMPER
SR5 PACKAGE
APPEARANCE PACKAGE(SR5)
52119ESCREW, NO.2
SR5 PACKAGE
APPEARANCE PACKAGE(SR5)
52161CPIECE, FRONT BUMPER
TRD SPORT SPECIAL EDITION&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
sub52161-0K040
sub52161-0K040
52521RETAINER, FRONT BUMPER, UPPER CENTER
52541PROTECTOR, FRONT BUMPER
52611ABSORBER, FRONT BUMPER ENERGY
53879KRETAINER, FRONT FENDER LINER
SR5 PACKAGE
APPEARANCE PACKAGE(SR5)
8101
9011906932
main90119-06932
9015950353
main90159-50353
9015960431
main90159-60431
9015960603
main90159-60603
9017910210
main90179-10210
91554A1025
main91554-A1025
21 parts on this diagram · 12 diagrams in section
