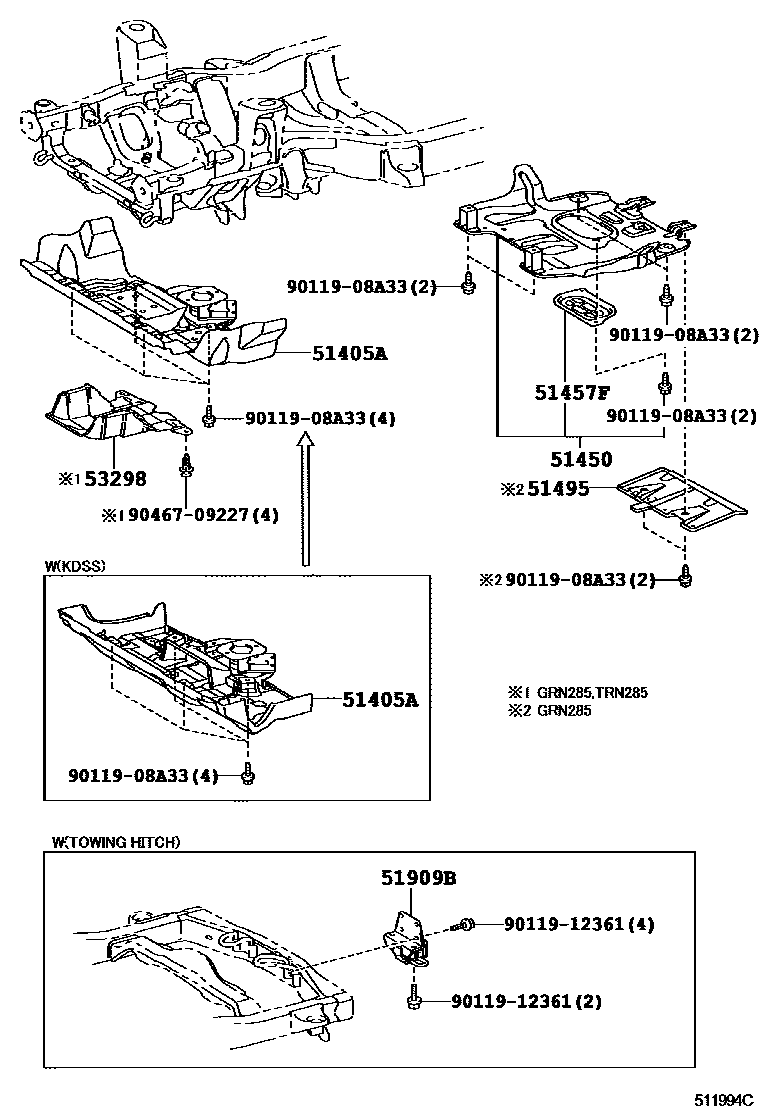

SUSPENSION CROSSMEMBER & UNDER COVER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-60210iTRN28#200908-201908

51450COVER ASSY, ENGINE UNDER, REAR

main51450-60050iTRN28#200908-201908

51457FSEAL, ENGINE UNDER COVER

main51457-60030iTRN28#200908-201908

51495COVER, TRANSMISSION UNDER

main51495-60380

51909BTUBE SUB-ASSY, PINTLE HOOK SUPPORT

53298DUCT, COOL AIR INTAKE

main52812-35010

9011908A33

main90119-08A33

9011912361

main90119-12361

9046709227

main90467-09227

9 parts on this diagram · 1 diagram in section
