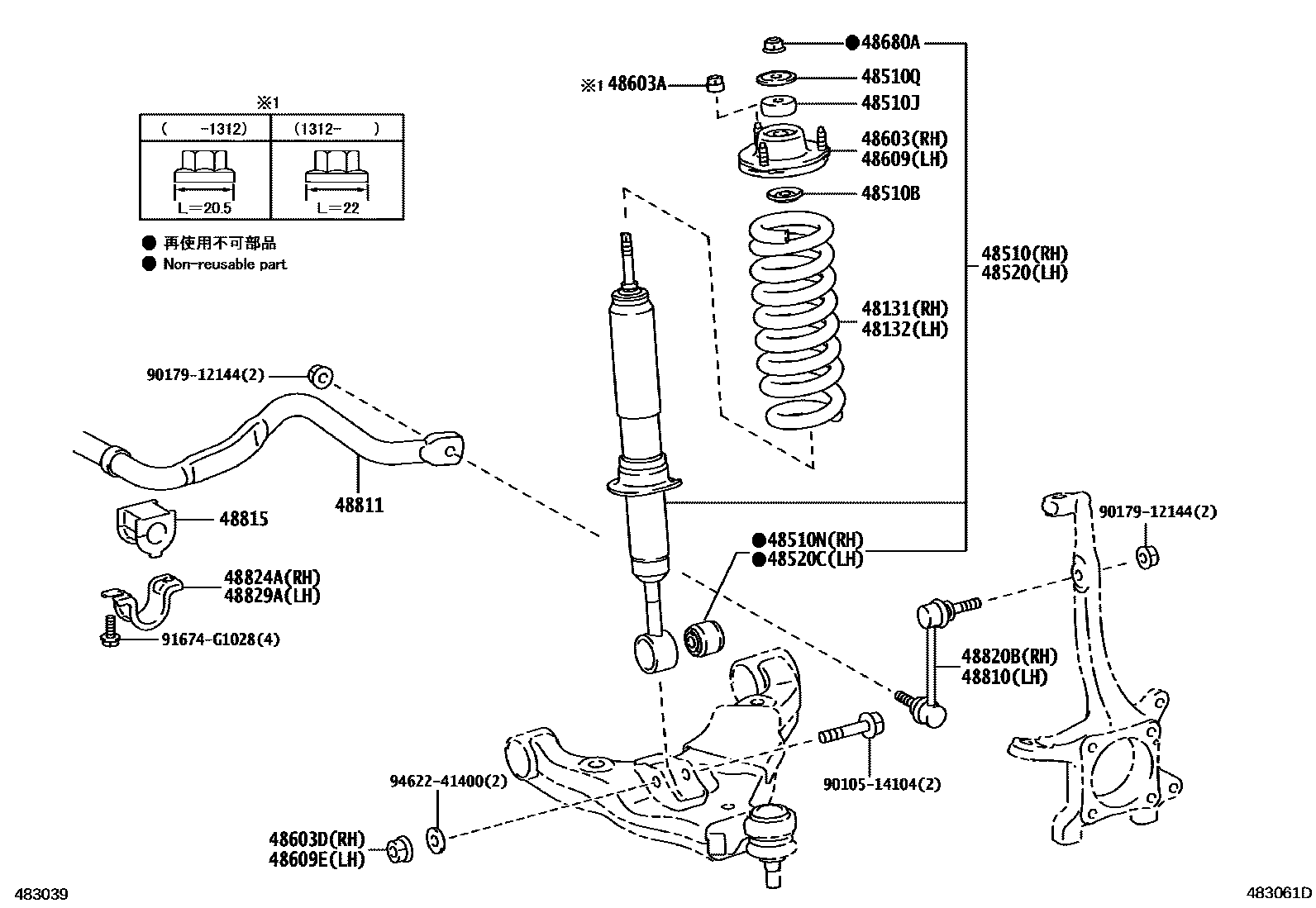

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1LIMITED PACKAGE 0003 1KDSS 0004 1KDSS

48131SPRING, FRONT COIL, RH

main48131-35580iTRN280200911-201108

main48131-35590iGRN280200908-202401

sub48131-35591

main48131-35591iGRN280202402

main48131-35610iTRN285201008-201108

sub48131-35611

main48131-35650iGRN285200908-202401

sub48131-35651

main48131-35651iGRN285202402

48132SPRING, FRONT COIL, LH

main48131-35580iTRN280200911-201108

main48131-35600iGRN280200908-202401

sub48131-35601

main48131-35601iGRN280202402

main48131-35610iTRN285201008-201108

sub48131-35611

main48131-35620iGRN285200908-202401

sub48131-35621

main48131-35621iGRN285202402

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80497iGRN285200908-201208

MARK 48510-35340

main48510-80498iTRN280200908-201908

MARK 48510-35350

main48510-80507iGRN285201208-201908

MARK 48510-35430

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02205iGRN28#200908-201908

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-01100iTRN28#200908-201908

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main48536-60010iGRN28#200908-201908

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-02161iTRN28#200908-201908

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-80497iTRN285200908-201208

MARK 48510-35340

main48510-80498iGRN280200908-201908

MARK 48510-35350

main48510-80507iGRN285201208-201908

MARK 48510-35430

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main48536-60010iGRN28#200908-201908

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-60100iTRN28#200908-201908

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10014iGRN28#201312-201908

main90178-10015iTRN28#200908-201312

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90170-14032iGRN28#200908-201908

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-60100iGRN28#200908-201908

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90170-14032iTRN28#200908-201908

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94184-01241iGRN28#200908-201908

48810LINK ASSY, FRONT STABILIZER, LH

main48810-60040iTRN28#200908-201908

48811BAR, STABILIZER, FRONT

main48811-35450iTRN285200908-201908

main48811-35460iTRN280200908-201108

main48811-35460iGRN280200908-201908

LIMITED PACKAGE

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-35110iGRN280,TRN280200908-201105

LIMITED PACKAGE

sub48815-35130

main48815-35120iGRN285,TRN285200908-201106

sub48815-35140

main48815-35130iGRN280201106-201908

LIMITED PACKAGE

main48815-35130iTRN280201106-201108

main48815-35140iGRN285201106-201908

48820LINK ASSY, FRONT STABILIZER

main48820-60050

main48820-60090

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-60050iTRN28#200908-201908

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-60190iTRN28#200908-201908

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-60120iTRN28#200908-201908

9010514104

main90105-14104

9017912144

main90179-12144

91674G1028

main91674-G1028

9462241400

main94622-41400

26 parts on this diagram · 4 diagrams in section
