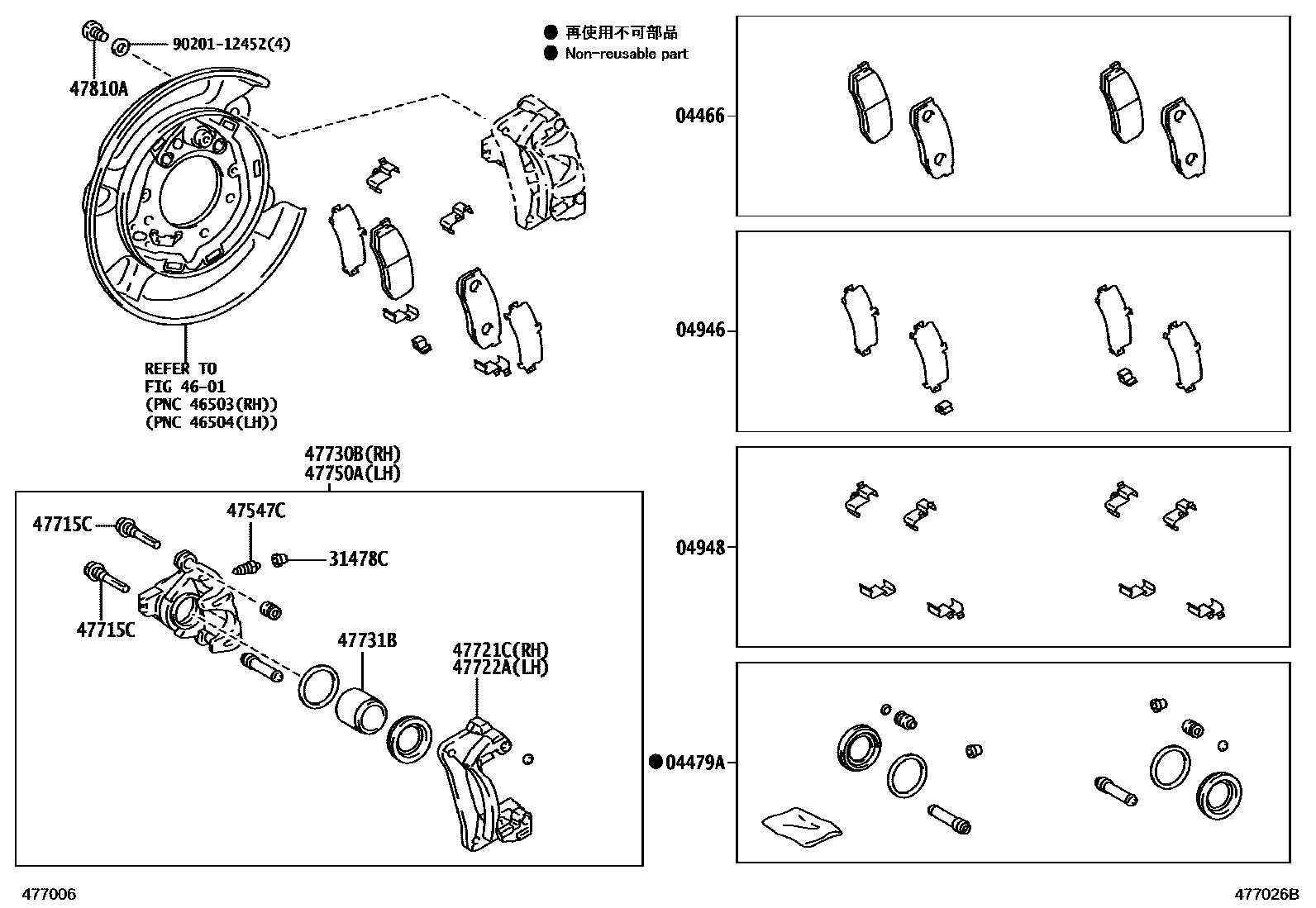

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-60140iGRN28#200908-201908

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-60030iTRN28#200908-201908

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-60140iTRN28#200908-201411

sub04946-60141

main04946-60141iGRN28#201411-201908

04948FITTING KIT, DISC BRAKE, REAR

main04947-22050iTRN28#200908-201908

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iTRN28#200908-201908

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12010iGRN28#201701-201908

main47547-12030iGRN28#200908-201701

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-43010iGRN28#200908-201908

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-60020iTRN28#200908-201908

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-60020iTRN28#200908-201908

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-34030iTRN28#200908-201908

47731BPISTON, REAR DISC BRAKE

main47731-60020iTRN28#200908-201908

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-34030iTRN28#200908-201908

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90101-12167iTRN28#200908-201908

9020112452

main90201-12452

15 parts on this diagram · 1 diagram in section
