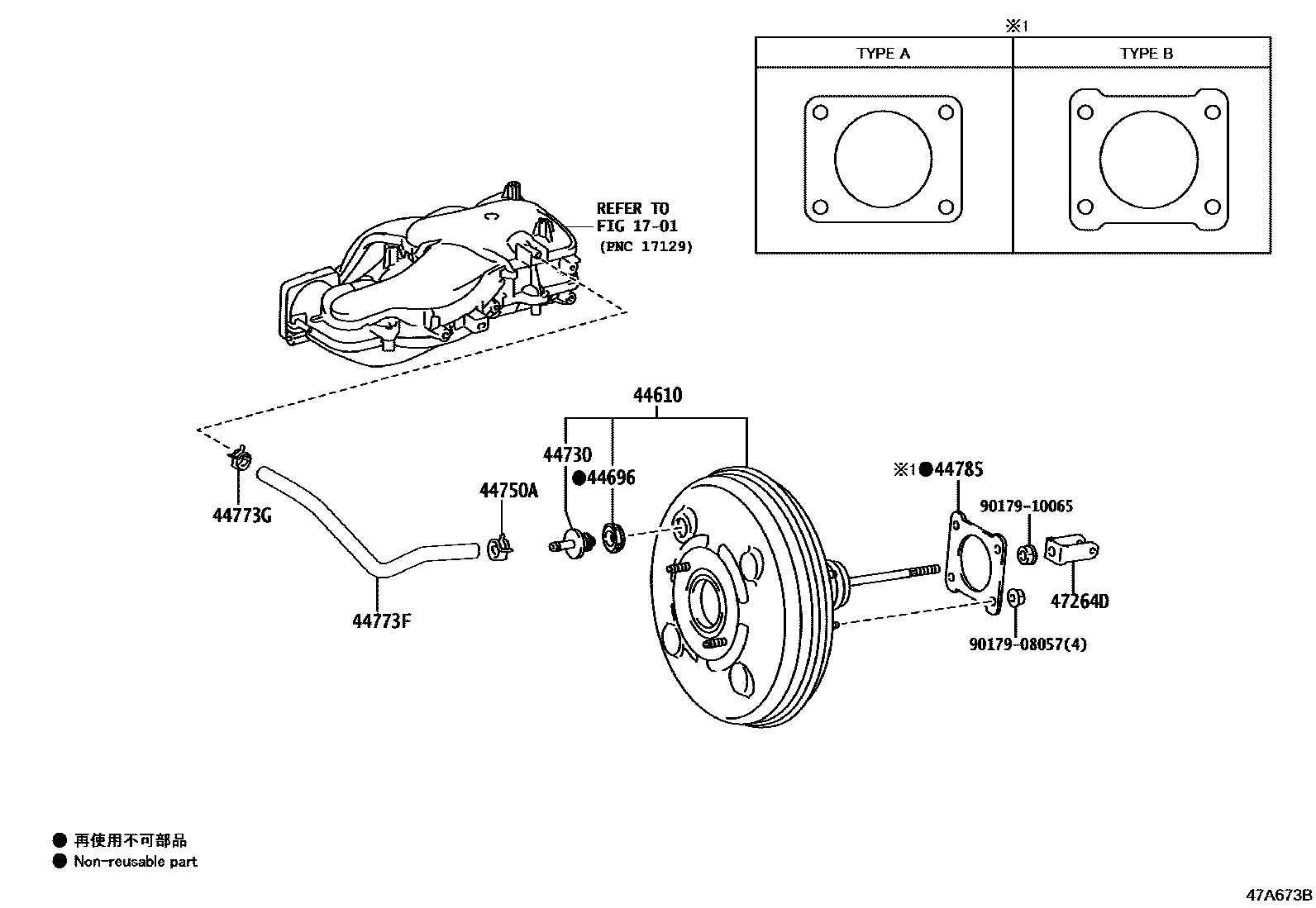

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-6A310iGRN280201508-201908

44696GROMMET, CHECK VALVE

main90480-24439iGRN280201508-201908

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iGRN280201508-201908

44750ACLIP(FOR VACUUM HOSE ASSY)

main96133-41500iGRN280201508-201908

44773FHOSE, UNION TO CHECK VALVE

main44773-35640iGRN280201508-201908

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iGRN280201508-201908

44785GASKET, BRAKE BOOSTER

main44785-60020iGRN280201701-201707

TYPE A:REFER ILLUST.

main44785-60030iGRN280201508-201908

TYPE B:REFER ILLUST.

main44785-60030iGRN280201908

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0K050iGRN280201908

main47264-22040iGRN280201508-201908

9017908057

main90179-08057

9017910065

main90179-10065

11 parts on this diagram · 1 diagram in section
