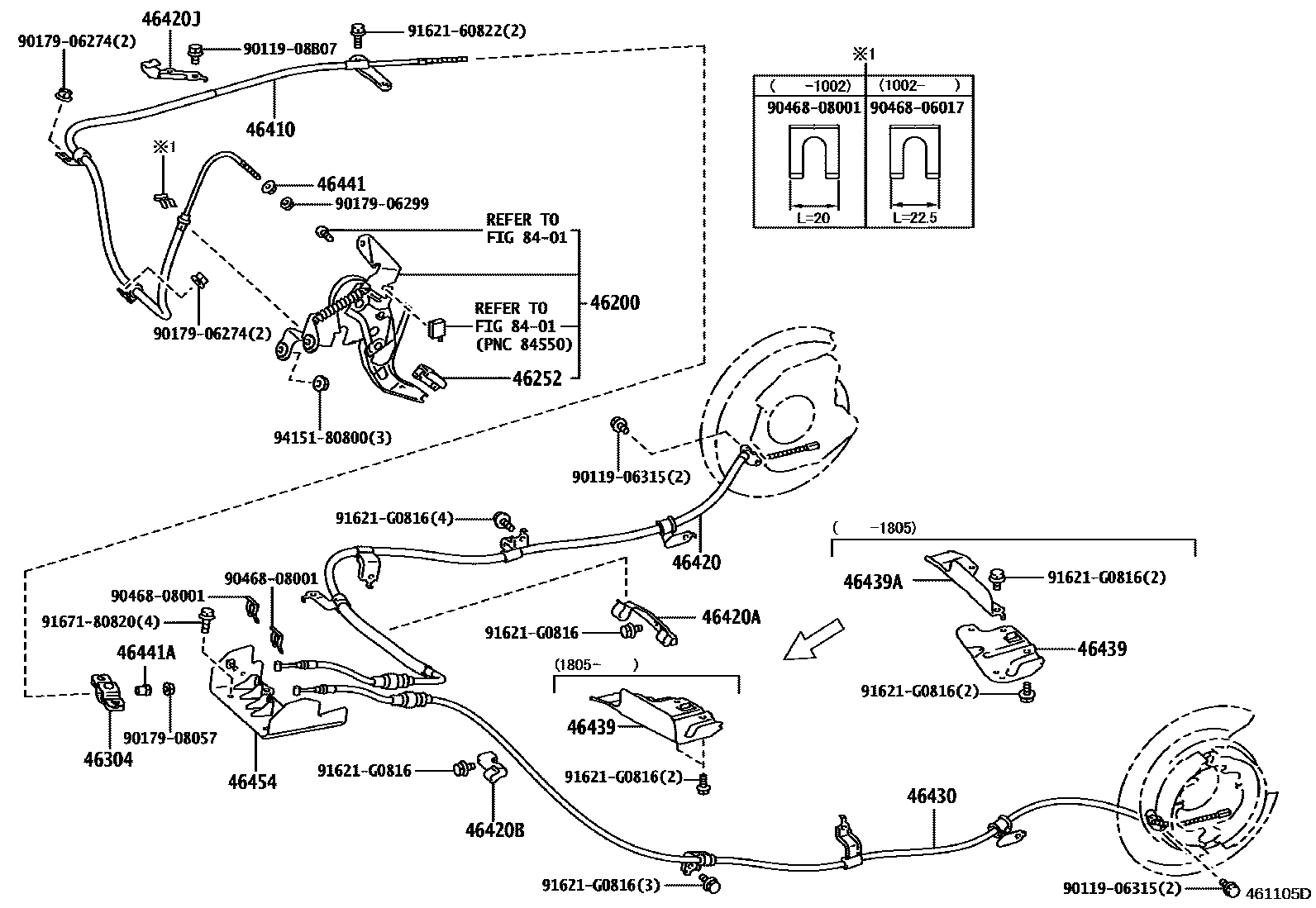

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46210-35060iGRN28#,TRN280200908-201002

main46210-35061iTRN28#201002-201903

sub46210-35062

main46210-35062iGRN28#201904-201908

46252PAD, PARKING PEDAL

main46252-52010iTRN28#200908-201908

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-17020iTRN28#200908-201908

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-35A00iGRN28#,TRN280200908-201002

main46410-35A01iTRN28#201002-201908

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-35780iTRN28#200908-201212

sub46420-35781

main46420-35781iGRN28#201301-201908

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46421-60060iTRN28#200908-201908

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46431-60060iTRN28#200908-201908

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46413-35010iTRN28#200908-201908

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-35570iTRN28#200908-201212

sub46430-35571

main46430-35571iGRN28#201301-201908

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-60020iTRN28#200908-201805

main46439-60050iGRN28#201805-201908

46439AINSULATOR, PARKING BRAKE CABLE HEAT, NO.2

main4643A-60010iTRN28#200908-201805

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iGRN28#200908-201908

46441ANUT, WIRE ADJUSTING, NO.2

main46441-35020iGRN28#200908-201908

46454BRACKET, CABLE RETAINER, FRONT

main46454-35190iGRN28#200908-201908

8401

9011906315

main90119-06315

9011908B07

main90119-08B07

9017906274

main90179-06274

9017906299

main90179-06299

9017908057

main90179-08057

9046806017

main90468-06017

9046808001

main90468-08001

9162160822

main91621-60822

91621G0816

main91621-G0816

9167180820

main91671-80820

9415180800

main94151-80800

26 parts on this diagram · 2 diagrams in section
