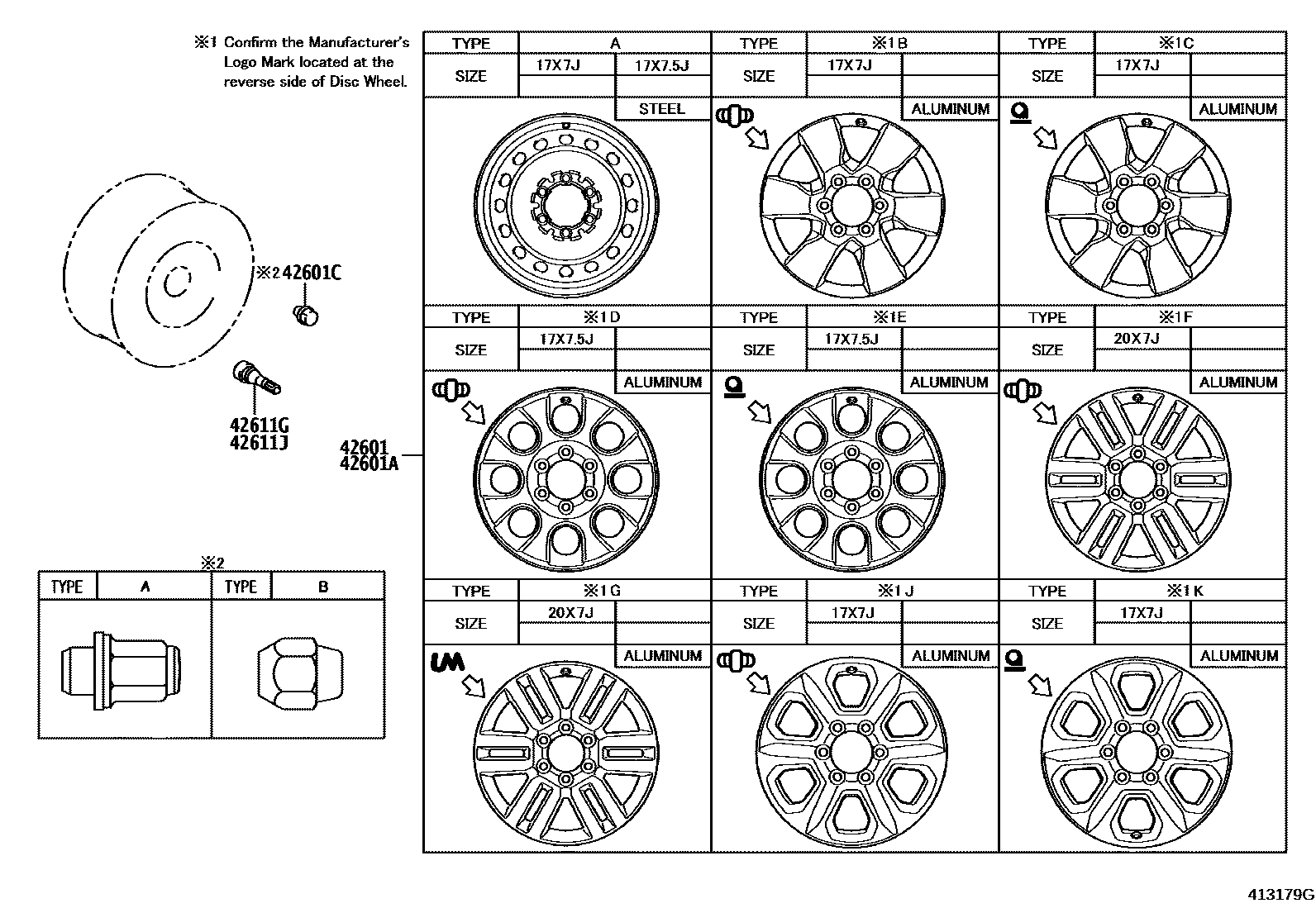

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
17X7J, #,TYPE C:REFER ILLUST.
17X7.5J, #,TRAIL PACKAGE&TIRE & DISC WHEEL-P265/70R17 7.5J ALUMINUM OFFSET 15,TYPE D:REFER ILLUST.
17X7.5J, #,TRAIL PACKAGE&TIRE & DISC WHEEL-P265/70R17 7.5J ALUMINUM OFFSET 15,TYPE E:REFER ILLUST.
17X7.5J, #,VENTURE SPECIAL EDITION&TIRE & DISC WHEEL-P265/70R17, STEEL,TYPE A:REFER ILLUST.
17X7.5J, #,40TH ANNIVERSARY EDITION&TIRE & DISC WHEEL-P265/70R17, STEEL,TYPE A:REFER ILLUST.
17X7.5J, #,TRD-PRO&TIRE & DISC WHEEL-P265/70R17 STEEL,TYPE A:REFER ILLUST.
17X7.5J, #,TRD PRO PACKAGE&TIRE & DISC WHEEL-P265/70R17, STEEL,TYPE A:REFER ILLUST.
20X7J, #,LIMITED PACKAGE&TIRE & DISC WHEEL-P245/60R20 7J ALUMINUM OFFSET 15,TYPE F:REFER ILLUST.
20X7J, #,LIMITED PACKAGE&TIRE & DISC WHEEL-P245/60R20 7J ALUMINUM OFFSET 15,TYPE G:REFER ILLUST.
sub42611-35440
17X7J, #,TYPE J:REFER ILLUST.
17X7J, #,TYPE K:REFER ILLUST.
17X7.5J, #,TRAIL PACKAGE(TRD OFF ROAD)&TIRE & DISC WHEEL-P265/70R17 7.5J ALUMINUMOFFSET 15,TYPE L:REFER ILLUST.
20X7J, #,SR5 PACKAGE(FR VALANCE PANEL = BLACK)&TIRE & DISC WHEEL-P245/60R20 7J ALUMINUM OFFSET 15,TYPE F:REFER ILLUST.
20X7J, #, LIMITED PACKAGE&TIRE & DISC WHEEL-P245/60R20, 7J, ALUMINUM, OFFSET, 15,TYPE F:REFER ILLUST.
20X7J, #,LIMITED PACKAGE&TIRE & DISC WHEEL-P245/60R20 7J ALUMINUM OFFSET 15,TYPE F:REFER ILLUST.
17X7.5J, #,TRD OFF ROAD&TIRE & DISC WHEEL-P265/70R17, 7.5J, ALUMINUM, OFFSET, 15,TYPE L:REFER ILLUST.
sub42611-35581
17X7.5J, #,TRAIL PACKAGE(TRD OFF ROAD)&TIRE & DISC WHEEL-P265/70R17 7.5J ALUMINUMOFFSET 15,TYPE L:REFER ILLUST.
sub42611-35581
17X7.5J, #,TRD OFF ROAD&TIRE & DISC WHEEL-P265/70R17, 7.5J, ALUMINUM, OFFSET, 15,TYPE L:REFER ILLUST.
20X7J, #,NIGHTSHADE EDITION&TIRE & DISC WHEEL-P245/60R20, 7J, ALUMINUM, BLACK,TYPE F:REFER ILLUST.
20X7J, #,LIMITED BLACK EDITION(DISC WHEEL=BLACK)&TIRE & DISC WHEEL-P245/60R20, 7JALUMINUM BLACK,TYPE F:REFER ILLUST.
17X7.5J, #, SR5 TRAIL EDITION&TIRE & DISC WHEEL-P265/70R17, 7.5J, ALUMINUM, GRAY,TYPE L:REFER ILLUST.
sub42611-35601
17X7.5J, #, SR5 TRAIL EDITION&TIRE & DISC WHEEL-P265/70R17, 7.5J, ALUMINUM, GRAY,TYPE L:REFER ILLUST.
20X7J, #,TRD SPORT SPECIAL EDITION&TIRE & DISC WHEEL-P245/60R20, 7J, ALUMINUM, GRAY,TYPE F:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X7J, #,MEXICO SPEC&TIRE & DISC WHEEL-245/70R17 7.0J ALUMINUM OFFSET 15,TYPE B:REFER ILLUST.
sub42611-35390
17X7J, #,MEXICO SPEC&TIRE & DISC WHEEL-245/70R17 7.0J ALUMINUM OFFSET 15,TYPE C:REFER ILLUST.
17X7J,TYPE A:REFER ILLUST.
17X7.5J, #,40TH ANNIVERSARY EDITION&TIRE & DISC WHEEL-P265/70R17, STEEL,TYPE A:REFER ILLUST.
17X7.5J, #,TRAIL PACKAGE&TIRE & DISC WHEEL-P265/70R17 7.5J ALUMINUM OFFSET 15,TYPE A:REFER ILLUST.
17X7.5J, #, SR5 TRAIL EDITION&TIRE & DISC WHEEL-P265/70R17, 7.5J, ALUMINUM, GRAY,TYPE A:REFER ILLUST.
17X7.5J, #,TRD PRO PACKAGE&TIRE & DISC WHEEL-P265/70R17, STEEL,TYPE A:REFER ILLUST.
17X7.5J, #,TRD OFF ROAD&TIRE & DISC WHEEL-P265/70R17, 7.5J, ALUMINUM, OFFSET, 15,TYPE A:REFER ILLUST.
17X7.5J, #,TRAIL PACKAGE(TRD OFF ROAD)&TIRE & DISC WHEEL-P265/70R17 7.5J ALUMINUMOFFSET 15,TYPE A:REFER ILLUST.
17X7.5J, #,TRD-PRO&TIRE & DISC WHEEL-P265/70R17 STEEL,TYPE A:REFER ILLUST.
17X7.5J, #,VENTURE SPECIAL EDITION&TIRE & DISC WHEEL-P265/70R17, STEEL,TYPE A:REFER ILLUST.
20X7J,LIMITED PACKAGE&TIRE & DISC WHEEL-P245/60R20 7J ALUMINUM OFFSET 15,TYPE F:REFER ILLUST.
20X7J,LIMITED PACKAGE&TIRE & DISC WHEEL-P245/60R20 7J ALUMINUM OFFSET 15,TYPE G:REFER ILLUST.
sub42611-35460
20X7J, #, LIMITED PACKAGE&TIRE & DISC WHEEL-P245/60R20, 7J, ALUMINUM, OFFSET, 15,TYPE F:REFER ILLUST.
20X7J, #,LIMITED PACKAGE&TIRE & DISC WHEEL-P245/60R20 7J ALUMINUM OFFSET 15,TYPE F:REFER ILLUST.
20X7J, #,SR5 PACKAGE(FR VALANCE PANEL = BLACK)&TIRE & DISC WHEEL-P245/60R20 7J ALUMINUM OFFSET 15,TYPE F:REFER ILLUST.
20X7J, #,LIMITED BLACK EDITION(DISC WHEEL=BLACK)&TIRE & DISC WHEEL-P245/60R20, 7JALUMINUM BLACK,TYPE F:REFER ILLUST.
20X7J, #,NIGHTSHADE EDITION&TIRE & DISC WHEEL-P245/60R20, 7J, ALUMINUM, BLACK,TYPE F:REFER ILLUST.
20X7J, #,TRD SPORT SPECIAL EDITION&TIRE & DISC WHEEL-P245/60R20, 7J, ALUMINUM, GRAY,TYPE F:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TRD-PRO,TYPE B:REFER ILLUST.
VENTURE SPECIAL EDITION,TYPE B:REFER ILLUST.
TRD PRO PACKAGE,TYPE B:REFER ILLUST.
40TH ANNIVERSARY EDITION,TYPE B:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
MEXICO SPEC&TIRE & DISC WHEEL-245/70R17 7.0J ALUMINUM OFFSET 15
42611JVALVE (FOR TUBELESS TIRE SPARE)
5 parts on this diagram · 4 diagrams in section
