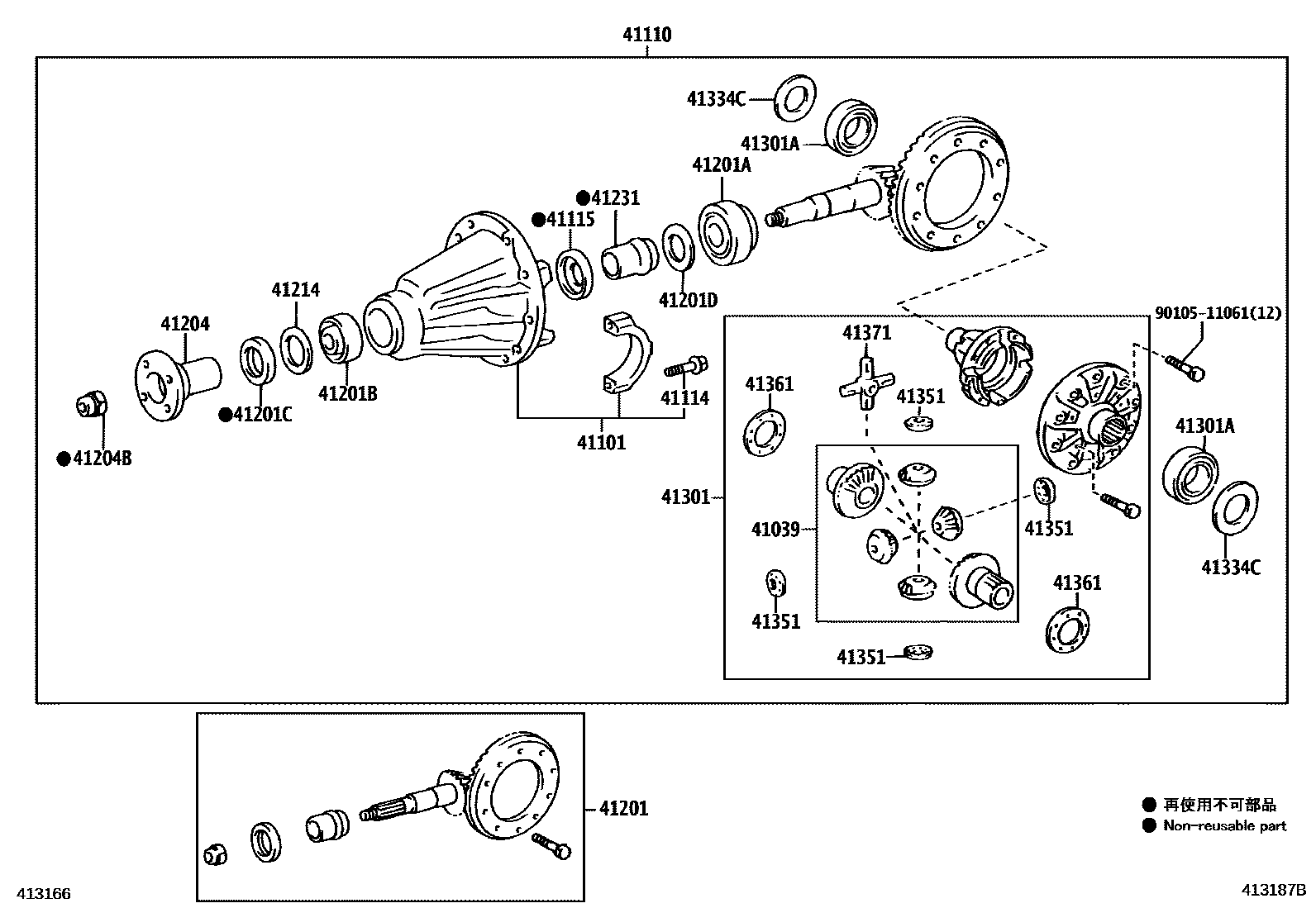

REAR AXLE HOUSING & DIFFERENTIAL
41039GEAR KIT, DIFFERENTIAL, REAR
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:11=3.727
*FGR=41:9=4.555
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41115RING, DIFFERENTIAL OIL STORAGE
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:11=3.727
*FGR=41:9=4.555
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.85
T=1.86
T=1.87
T=1.88
T=1.89
T=1.90
T=1.91
T=1.92
T=1.93
T=1.94
T=1.95
T=1.96
T=1.97
T=1.98
T=1.99
T=2.00
T=2.01
T=2.02
T=2.03
T=2.04
T=2.05
T=2.06
T=2.07
T=2.08
T=2.09
T=2.10
T=2.11
T=2.12
T=2.13
T=2.14
T=2.15
T=2.16
T=2.17
T=2.18
T=2.19
T=2.20
T=2.21
T=2.22
T=2.23
T=2.24
T=2.25
T=2.26
T=2.27
T=2.28
T=2.29
T=2.30
T=2.31
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
OD=43
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41301CASE SUB-ASSY, REAR DIFFERENTIAL
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=2.58,MARK 01
T=2.64,MARK 03
T=2.70,MARK 05
T=2.76,MARK 07
T=2.60,MARK 32
T=2.62,MARK 33
T=2.66,MARK 34
T=2.68,MARK 35
T=2.72,MARK 36
T=2.74,MARK 37
T=2.42,MARK 62
T=2.44,MARK 63
T=2.46,MARK 64
T=2.48,MARK 65
T=2.50,MARK 66
T=2.52,MARK 67
T=2.54,MARK 68
T=2.56,MARK 69
T=2.06,MARK 70
T=2.08,MARK 71
T=2.10,MARK 72
T=2.12,MARK 73
T=2.14,MARK 74
T=2.16,MARK 75
T=2.18,MARK 76
T=2.20,MARK 77
T=2.22,MARK 78
T=2.24,MARK 79
T=2.26,MARK 80
T=2.28,MARK 81
T=2.30,MARK 82
T=2.32,MARK 83
T=2.34,MARK 84
T=2.36,MARK 85
T=2.38,MARK 86
T=2.40,MARK 87
T=2.08
T=2.10
T=2.12
T=2.14
T=2.16
T=2.18
T=2.20
T=2.22
T=2.24
T=2.26
T=2.28
T=2.30
T=2.32
T=2.34
T=2.36
T=2.38
T=2.40
T=2.42
T=2.44
T=2.46
T=2.48
T=2.50
T=2.52
T=2.54
T=2.56
T=2.58
T=2.60
T=2.62
T=2.64
T=2.66
T=2.68
T=2.06
T=2.70
T=2.72
T=2.74
T=2.76
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.9
T=0.9,TRD OFF ROAD
T=0.9,TRD PRO PACKAGE
T=0.9,TRAIL PACKAGE,RH,ID=46
T=0.9,TRAIL PACKAGE(TRD OFF ROAD),RH,ID=46
T=1.0,TRD PRO PACKAGE
T=1.0
T=1.0,TRD OFF ROAD
T=1.0,TRAIL PACKAGE,RH,ID=46
T=1.0,TRAIL PACKAGE(TRD OFF ROAD),RH,ID=46
T=1.1,TRD OFF ROAD
T=1.1
T=1.1,TRAIL PACKAGE,RH,ID=46
T=1.1,TRAIL PACKAGE(TRD OFF ROAD),RH,ID=46
T=1.1,TRD PRO PACKAGE
T=1.2,TRD PRO PACKAGE
T=1.2,TRD OFF ROAD
T=1.2
T=1.2,TRAIL PACKAGE,RH,ID=46
T=1.2,TRAIL PACKAGE(TRD OFF ROAD),RH,ID=46
T=1.3
T=1.3,TRAIL PACKAGE,RH,ID=46
T=1.3,TRD PRO PACKAGE
T=1.3,TRD OFF ROAD
T=1.3,TRAIL PACKAGE(TRD OFF ROAD),RH,ID=46
41371SPIDER, REAR DIFFERENTIAL
9010511061
main90105-11061
21 parts on this diagram · 3 diagrams in section
