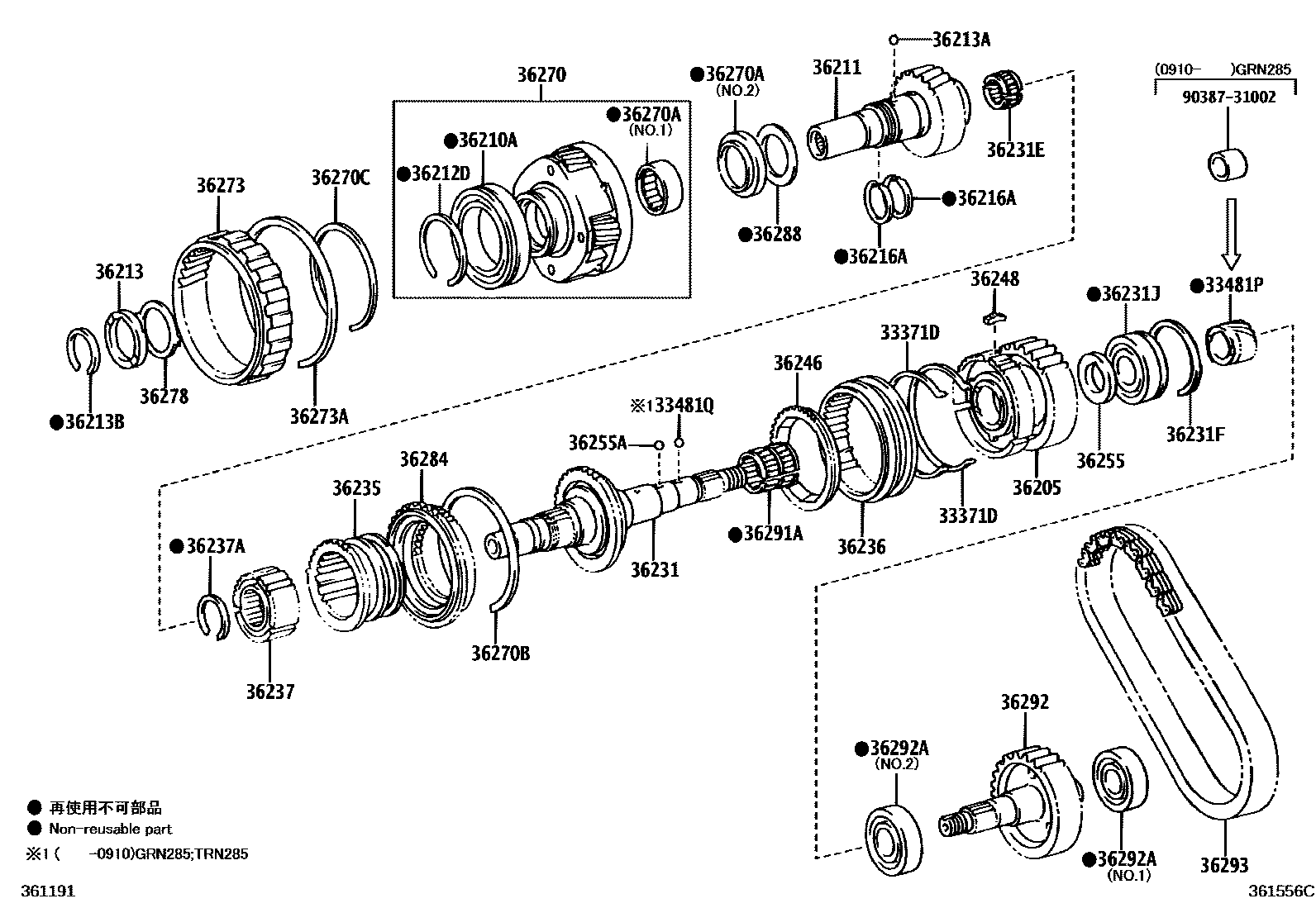

TRANSFER GEAR
33371DSPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER)
LIMITED PACKAGE
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
NIGHTSHADE EDITION
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
N=10
N=11,LIMITED PACKAGE
N=11
33481QKEY OR BALL, SPEEDOMETER DRIVE GEAR (FOR TRANSFER)
LIMITED PACKAGE
36205SPROCKET SUB-ASSY, TRANSFER DRIVE
LIMITED PACKAGE
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
LIMITED PACKAGE
LIMITED PACKAGE
TRAIL PACKAGE
TRD-PRO
TRD OFF ROAD
VENTURE SPECIAL EDITION
TRD PRO PACKAGE
TRAIL PACKAGE(TRD OFF ROAD)
TRAIL PACKAGE
LIMITED PACKAGE
LIMITED PACKAGE
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
NIGHTSHADE EDITION
NIGHTSHADE EDITION
LIMITED PACKAGE
36210ABEARING (FOR TRANSFER INPUT SHAFT)
36211SHAFT, TRANSFER INPUT
LIMITED PACKAGE
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
NIGHTSHADE EDITION
LIMITED PACKAGE
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
NIGHTSHADE EDITION
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
T=1.45,MARK 1
T=1.45,MARK 1, LIMITED PACKAGE
T=1.45,MARK 1,LIMITED PACKAGE
T=1.45,MARK 1,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=1.45,MARK 1,NIGHTSHADE EDITION
T=1.50,MARK 2
T=1.50,MARK 2, LIMITED PACKAGE
T=1.50,MARK 2,LIMITED PACKAGE
T=1.50,MARK 2,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=1.50,MARK 2,NIGHTSHADE EDITION
T=1.55,MARK 3,LIMITED PACKAGE
T=1.55,MARK 3
T=1.55,MARK 3, LIMITED PACKAGE
T=1.55,MARK 3,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=1.55,MARK 3,NIGHTSHADE EDITION
T=1.60,MARK 4, LIMITED PACKAGE
T=1.60,MARK 4,LIMITED PACKAGE
T=1.60,MARK 4
T=1.60,MARK 4,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=1.60,MARK 4,NIGHTSHADE EDITION
T=1.65,MARK 5,LIMITED PACKAGE
T=1.65,MARK 5
T=1.65,MARK 5,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=1.65,MARK 5,NIGHTSHADE EDITION
T=1.65,MARK 5, LIMITED PACKAGE
36213STOPPER, TRANSFER INPUT GEAR
36213ABALL (FOR TRANSFER INPUT GEAR STOPPER)
36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)
T=2.10-2.15, LIMITED PACKAGE
T=2.10-2.15,LIMITED PACKAGE
T=2.10-2.15
T=2.10-2.15,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=2.10-2.15,NIGHTSHADE EDITION
T=2.15-2.20
T=2.15-2.20,LIMITED PACKAGE
T=2.15-2.20, LIMITED PACKAGE
T=2.15-2.20,NIGHTSHADE EDITION
T=2.15-2.20,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=2.20-2.25
T=2.20-2.25,LIMITED PACKAGE
T=2.20-2.25, LIMITED PACKAGE
T=2.20-2.25,NIGHTSHADE EDITION
T=2.20-2.25,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=2.25-2.30,LIMITED PACKAGE
T=2.25-2.30
T=2.25-2.30, LIMITED PACKAGE
T=2.25-2.30,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=2.25-2.30,NIGHTSHADE EDITION
T=2.30-2.35,LIMITED PACKAGE
T=2.30-2.35
T=2.30-2.35,NIGHTSHADE EDITION
T=2.30-2.35,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=2.30-2.35, LIMITED PACKAGE
T=2.35-2.40, LIMITED PACKAGE
T=2.35-2.40,LIMITED PACKAGE
T=2.35-2.40
T=2.35-2.40,NIGHTSHADE EDITION
T=2.35-2.40,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=2.40-2.45,LIMITED PACKAGE
T=2.40-2.45, LIMITED PACKAGE
T=2.40-2.45
T=2.40-2.45,NIGHTSHADE EDITION
T=2.40-2.45,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=2.45-2.50
T=2.45-2.50,LIMITED PACKAGE
T=2.45-2.50, LIMITED PACKAGE
T=2.45-2.50,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=2.45-2.50,NIGHTSHADE EDITION
T=2.50-2.55
T=2.50-2.55,LIMITED PACKAGE
T=2.50-2.55,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=2.50-2.55,NIGHTSHADE EDITION
T=2.50-2.55, LIMITED PACKAGE
T=2.55-2.60, LIMITED PACKAGE
T=2.55-2.60
T=2.55-2.60,NIGHTSHADE EDITION
T=2.55-2.60,LIMITED PACKAGE
T=2.55-2.60,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=2.60-2.65
T=2.60-2.65,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=2.60-2.65, LIMITED PACKAGE
T=2.60-2.65,LIMITED PACKAGE
T=2.60-2.65,NIGHTSHADE EDITION
T=2.65-2.70
T=2.65-2.70,LIMITED PACKAGE
T=2.65-2.70, LIMITED PACKAGE
T=2.65-2.70,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=2.65-2.70,NIGHTSHADE EDITION
T=2.70-2.75
T=2.70-2.75,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=2.70-2.75,LIMITED PACKAGE
T=2.70-2.75,NIGHTSHADE EDITION
T=2.70-2.75, LIMITED PACKAGE
T=2.75-2.80
T=2.75-2.80, LIMITED PACKAGE
T=2.75-2.80,LIMITED PACKAGE
T=2.75-2.80,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=2.75-2.80,NIGHTSHADE EDITION
T=2.80-2.85
T=2.80-2.85,LIMITED PACKAGE
T=2.80-2.85,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=2.80-2.85,NIGHTSHADE EDITION
T=2.80-2.85, LIMITED PACKAGE
T=2.85-2.90
T=2.85-2.90,LIMITED PACKAGE
T=2.85-2.90, LIMITED PACKAGE
T=2.85-2.90,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=2.85-2.90,NIGHTSHADE EDITION
T=2.90-2.95
T=2.90-2.95,LIMITED PACKAGE
T=2.90-2.95,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=2.90-2.95, LIMITED PACKAGE
T=2.90-2.95,NIGHTSHADE EDITION
T=2.95-3.00,LIMITED PACKAGE
T=2.95-3.00
T=2.95-3.00,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=2.95-3.00, LIMITED PACKAGE
T=2.95-3.00,NIGHTSHADE EDITION
T=3.00-3.05
T=3.00-3.05,LIMITED PACKAGE
T=3.00-3.05,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=3.00-3.05,NIGHTSHADE EDITION
T=3.00-3.05, LIMITED PACKAGE
36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1
36231SHAFT, TRANSFER OUTPUT, REAR
TRD OFF ROAD
LIMITED PACKAGE
TRAIL PACKAGE
TRAIL PACKAGE(TRD OFF ROAD)
TRD-PRO
TRD PRO PACKAGE
VENTURE SPECIAL EDITION
NIGHTSHADE EDITION
LIMITED PACKAGE
LIMITED PACKAGE
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
LIMITED PACKAGE,NO.1
NIGHTSHADE EDITION,NO.1
LIMITED BLACK EDITION(DISC WHEEL=BLACK),NO.1
LIMITED BLACK EDITION(DISC WHEEL=BLACK),NO.2
LIMITED PACKAGE,NO.2
NIGHTSHADE EDITION,NO.2
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
T=1.65,ID=71.1,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=1.65,ID=71.1
T=1.65,ID=71.1,LIMITED PACKAGE
T=1.65,ID=71.1,VENTURE SPECIAL EDITION
T=1.65,ID=71.1,TRD PRO PACKAGE
T=1.65,ID=71.1,TRD OFF ROAD
T=1.65,NIGHTSHADE EDITION
T=1.65
T=1.65, LIMITED PACKAGE
T=1.65,LIMITED PACKAGE
T=1.65, LIMITED PACKAGE
T=1.65,NIGHTSHADE EDITION
T=1.65,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
LIMITED PACKAGE
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
VENTURE SPECIAL EDITION
TRD PRO PACKAGE
TRD OFF ROAD
LIMITED PACKAGE
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
NIGHTSHADE EDITION
NIGHTSHADE EDITION
LIMITED PACKAGE
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
LIMITED PACKAGE
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
NIGHTSHADE EDITION
LIMITED PACKAGE
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
LIMITED PACKAGE
NIGHTSHADE EDITION
36236SLEEVE, FRONT DRIVE CLUTCH
LIMITED PACKAGE
TRAIL PACKAGE
TRD PRO PACKAGE
TRD OFF ROAD
TRAIL PACKAGE(TRD OFF ROAD)
TRD-PRO
VENTURE SPECIAL EDITION
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
LIMITED PACKAGE
NIGHTSHADE EDITION
LIMITED PACKAGE
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
NIGHTSHADE EDITION
36237HUB, TRANSFER CLUTCH
LIMITED PACKAGE
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
NIGHTSHADE EDITION
LIMITED PACKAGE
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
NIGHTSHADE EDITION
36237ARING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)
T=2.10-2.15,MARK A,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
T=2.10-2.15,MARK A
T=2.10-2.15,MARK A,LIMITED PACKAGE
T=2.10-2.15,MARK A,NIGHTSHADE EDITION
T=2.10-2.15,MARK A, LIMITED PACKAGE
T=2.15-2.20,MARK B
T=2.20-2.25,MARK C
T=2.25-2.30,MARK D
T=2.30-2.35,MARK E
T=2.35-2.40,MARK F
T=2.40-2.45,MARK G
T=2.45-2.50,MARK H
T=2.50-2.55,MARK J
T=2.00-2.05,MARK K
T=2.05-2.10,MARK L
36246RING, TRANSFER FRONT DRIVE SYNCHRONIZER
TRD OFF ROAD
LIMITED PACKAGE
TRAIL PACKAGE
TRAIL PACKAGE(TRD OFF ROAD)
TRD-PRO
VENTURE SPECIAL EDITION
TRD PRO PACKAGE
36248KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1
LIMITED PACKAGE
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
NIGHTSHADE EDITION
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
LIMITED PACKAGE
VENTURE SPECIAL EDITION
TRD PRO PACKAGE
TRD OFF ROAD
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
LIMITED PACKAGE
NIGHTSHADE EDITION
LIMITED PACKAGE
LIMITED PACKAGE
NIGHTSHADE EDITION
36255ABALL (FOR TRANSFER OUTPUT SHAFT SPACER)
LIMITED PACKAGE
TRD PRO PACKAGE
TRD OFF ROAD
VENTURE SPECIAL EDITION
NIGHTSHADE EDITION
36270GEAR ASSY, TRANSFER LOW PLANETARY
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
LIMITED PACKAGE
NIGHTSHADE EDITION
NIGHTSHADE EDITION
LIMITED PACKAGE
LIMITED PACKAGE
36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)
NO.1:REFER ILLUST.
LIMITED PACKAGE,NO.1
NIGHTSHADE EDITION,NO.2
VENTURE SPECIAL EDITION,NO.2
NO.2
NO.2:REFER ILLUST.
LIMITED PACKAGE,NO.2
TRD PRO PACKAGE,NO.2
TRD OFF ROAD,NO.2
36270BRING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)
T=2.0,NIGHTSHADE EDITION
T=2.0,LIMITED PACKAGE
T=2.0, LIMITED PACKAGE
T=2.0,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
36270CRING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)
36273GEAR, TRANSFER LOW PLANETARY RING
36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)
LIMITED PACKAGE
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
NIGHTSHADE EDITION
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
LIMITED PACKAGE
NIGHTSHADE EDITION
36278WASHER, MANUAL TRANSFER PLANETARY CARRIER
T=0.95-1.05
36284PIECE, TRANSFER LOW PLANETARY GEAR SPLINE
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
LIMITED PACKAGE
NIGHTSHADE EDITION
sub36235-35H01
TRD OFF ROAD
TRAIL PACKAGE(TRD OFF ROAD)
TRD-PRO
VENTURE SPECIAL EDITION
TRD PRO PACKAGE
LIMITED PACKAGE
NIGHTSHADE EDITION
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
36288RACE, TRANSFER THRUST BEARING, NO.1
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
LIMITED PACKAGE
TRD PRO PACKAGE
TRD OFF ROAD
VENTURE SPECIAL EDITION
NIGHTSHADE EDITION
NIGHTSHADE EDITION
LIMITED PACKAGE
36292SPROCKET, TRANSFER DRIVEN
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
NO.2:REFER ILLUST.
NIGHTSHADE EDITION,NO.2:REFER ILLUST.
VENTURE SPECIAL EDITION,NO.1
TRD PRO PACKAGE,NO.1
TRD OFF ROAD,NO.1
TRAIL PACKAGE(TRD OFF ROAD),NO.1
TRD-PRO,NO.1
LIMITED PACKAGE,NO.2:REFER ILLUST.
LIMITED PACKAGE,NO.1
NO.1
TRAIL PACKAGE,NO.1
TRD OFF ROAD,NO.1
NO.2:REFER ILLUST.
TRD PRO PACKAGE,NO.1
LIMITED PACKAGE,NO.2:REFER ILLUST.
LIMITED PACKAGE
NO.2
TRAIL PACKAGE,NO.2
TRAIL PACKAGE(TRD OFF ROAD),NO.2
TRD-PRO,NO.2
VENTURE SPECIAL EDITION,NO.2
NIGHTSHADE EDITION
NO.1:REFER ILLUST.
TRD PRO PACKAGE,NO.2
TRD OFF ROAD,NO.2
36293CHAIN, TRANSFER FRONT DRIVE
9038731002
main90387-31002
