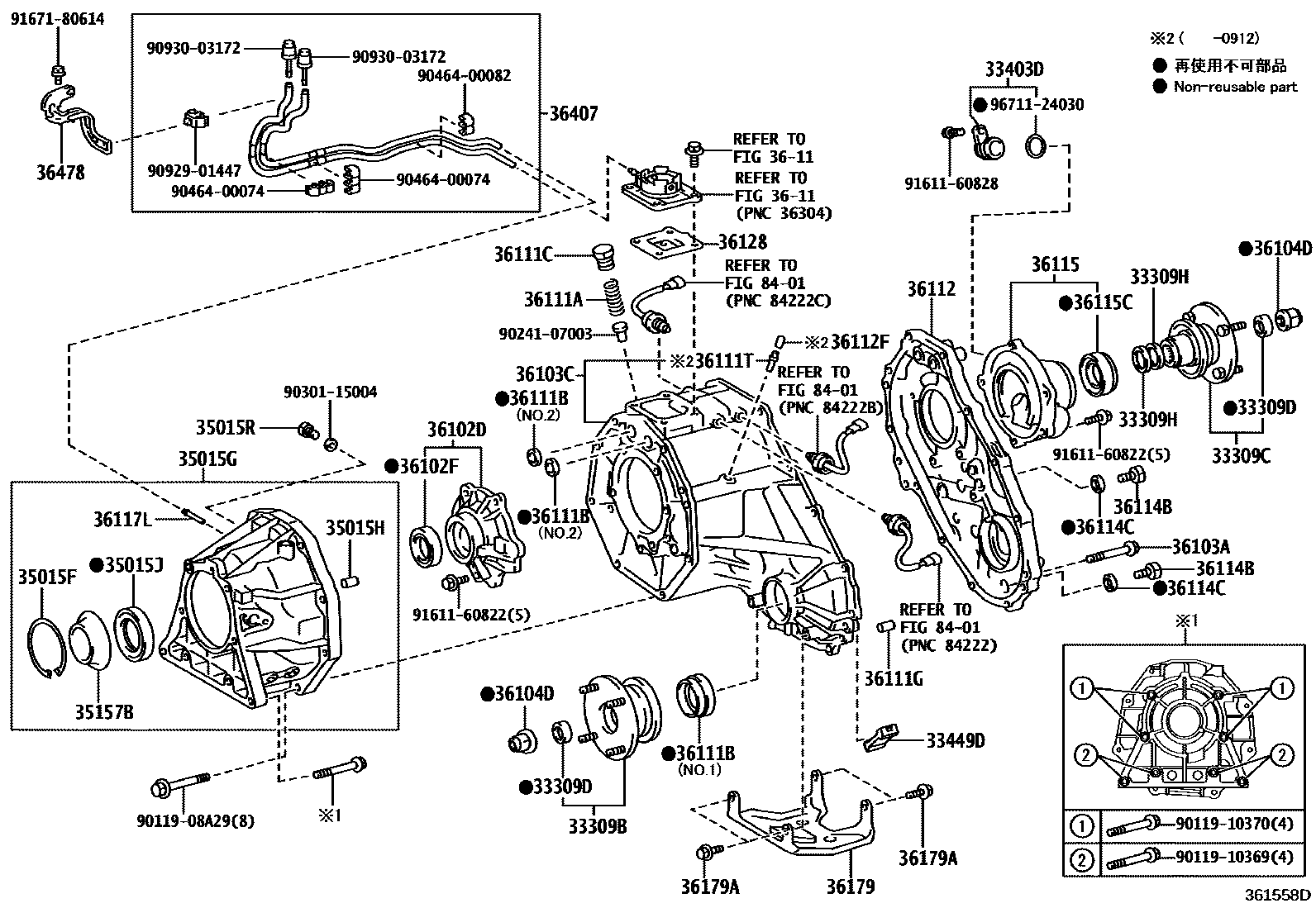

TRANSFER CASE & EXTENSION HOUSING
33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
PNC 36111B=TYPE B
33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
LIMITED PACKAGE
TRD PRO PACKAGE
TRD OFF ROAD
33309HWASHER, TRANSFER OUTPUT SHAFT
N=30,OD=38,LIMITED BLACK EDITION(DISC WHEEL=BLACK)
N=30,OD=38
N=30,OD=38,LIMITED PACKAGE
T=0.8
33403DCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
LIMITED PACKAGE
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
33449DMAGNET (FOR TRANSFER CASE)
35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)
35015GADAPTER, TRANSFER, REAR
(L)
(J)
35015HPIN, RING(FOR TRANSFER CASE)
35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)
35015RPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSMISSION CASE ADAPTER)
35157BRECEIVER, TRANSFER CASE REAR ADAPTER OIL
36102COVER SUB-ASSY, TRANSFER CASE
36102DRETAINER SUB-ASSY, TRANSFER RH BEARING
36102FSEAL, OIL, NO.2 (FOR TRANSFER RH BEARING RETAINER)
36103ABOLT (FOR TRANSFER CASE)
*8-1.25PX55-30
36103CCASE, TRANSFER, FRONT
LIMITED PACKAGE
36104DNUT (FOR TRANSFER OUTPUT SHAFT)
NO.1:REFER ILLUST.
LIMITED PACKAGE
TRD PRO PACKAGE
TRD OFF ROAD
NO.2:REFER ILLUST.
3611
36111ASPRING, COMPRESSION (FOR TRANSFER CASE)
36111BSEAL, OIL (FOR TRANSFER CASE)
LIMITED PACKAGE,NO.2
NO.1
NO.2
NO.2
NO.1
LIMITED PACKAGE
TRAIL PACKAGE,NO.1
TYPE A:REFER ILLUST.
TRAIL PACKAGE(TRD OFF ROAD),NO.1T/P A:REF.ILLUST
LIMITED BLACK EDITION(DISC WHEEL=BLACK),TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TRAIL PACKAGE(TRD OFF ROAD),NO.1T/P B:REF.ILLUST
TRD-PRO,NO.1T/P B:REF.ILLUST
TRD PRO PACKAGE,NO.1
TRD OFF ROAD,NO.1
36111CPLUG (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=14,OD=10
36111TTUBE (FOR TRANSFER CASE)
sub90406-T0007
36112CASE, TRANSFER, REAR
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
LIMITED PACKAGE
LIMITED PACKAGE
36112FCAP, TRANSFER, REAR CASE
LIMITED PACKAGE
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36115HOUSING, TRANSFER EXTENSION
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
LIMITED PACKAGE
36117LTUBE(FOR TRANSFER ADAPTER)
sub90406-T0007
36128DEFLECTOR, BREATHER OIL
LIMITED PACKAGE
LIMITED PACKAGE
36179PROTECTOR, TRANSFER CASE LOWER
36179ABOLT (FOR TRANSFER CASE LOWER PROTECTOR)
36407HOSE SUB-ASSY, TRANSFER BREATHER
36478BRACKET, TRANSFER BREATHER
NO.1:REFER ILLUST.
TRD OFF ROAD
NO.2:REFER ILLUST.
LIMITED PACKAGE
TRD PRO PACKAGE
8401
9011908A29
main90119-08A29
9011910369
main90119-10369
9011910370
main90119-10370
9024107003
main90241-07003
9030115004
main90301-15004
9046400074
main90464-00074
9046400082
main90464-00082
9092901447
main90929-01447
9093003172
main90930-03172
9161160822
main91611-60822
9161160828
main91611-60828
9167180614
main91671-80614
9671124030
main96711-24030
50 parts on this diagram · 9 diagrams in section
