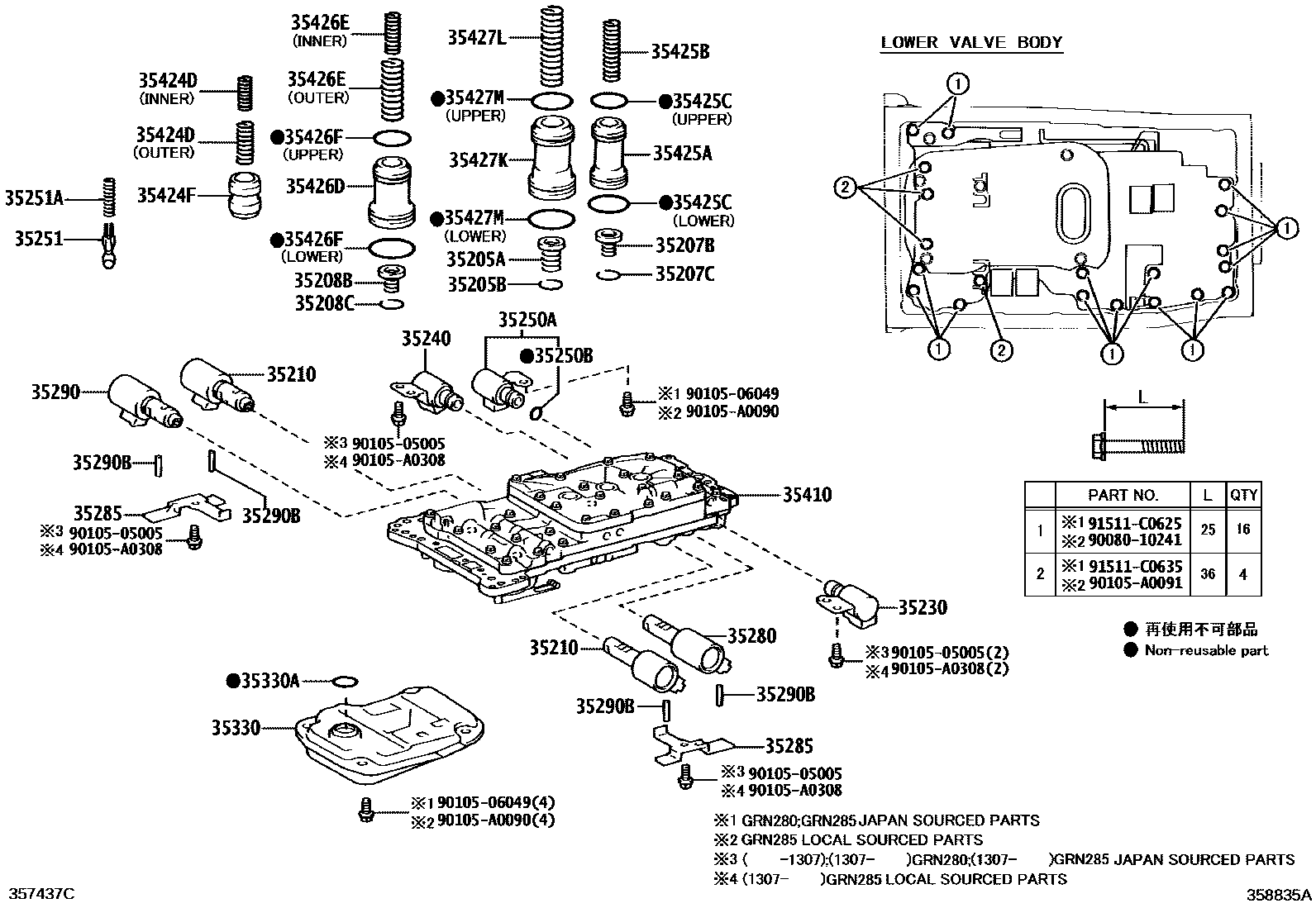

VALVE BODY & OIL STRAINER (ATM)
35205ASPRING SUB-ASSY, B-3 ACCUMULATOR
35205BRING, HOLE SNAP (FOR B-3 ACCUMULATOR SPRING)
35207SPRING SUB-ASSY, B-0 ACCUMULATOR
35207BSPRING SUB-ASSY, C-2 ACCUMULATOR
35207CRING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)
35208SPRING SUB-ASSY, B-2 ACCUMULATOR
35208BSPRING SUB-ASSY, C-3 ACCUMULATOR
35208CRING, HOLE SNAP (FOR C-3 ACCUMULATOR SPRING)
35210SOLENOID ASSY, CLUTCH CONTROL, NO.1
35230SOLENOID ASSY, TRANSMISSION 3WAY, NO.2
35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35250ASOLENOID ASSY, TRANSMISSION, NO.3
35250BRING, O NO.3(FOR TRANSMISSION SOLENOID)
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
(L)
(J)
(L)
35280SOLENOID ASSY, LOCK UP CONTROL
35285PLATE, SOLENOID LOCK
NO.2
NO.1
35290SOLENOID ASSY, LINE PRESSURE CONTROL
35290BPIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)
(J)
(L)
35330STRAINER ASSY, VALVE BODY OIL
35330ARING, O (FOR OIL STRAINER)
35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
INNER
(J),INNER
OUTER
(J),OUTER
(L),INNER
(L),OUTER
35424FVALVE, C-1 ACCUMULATOR
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
OUTER
(J)
INNER
(L)
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
UPPER
UPPER
LOWER
LOWER
35426DPISTON, C-3 ACCUMULATOR
35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
(J),INNER
INNER
OUTER
(J),OUTER
(L),INNER
(L),OUTER
35426FRING, O (FOR C-3 ACCUMULATOR PISTON)
UPPER
LOWER
35427KPISTON, B-3 ACCUMULATOR
35427LSPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)
(J)
(L)
35427MRING, O (FOR B-3 ACCUMULATOR PISTON)
UPPER
LOWER
9008010241
main90080-10241
9010505005
main90105-05005
9010506049
main90105-06049
90105A0090
main90105-A0090
90105A0091
main90105-A0091
90105A0308
main90105-A0308
91511C0625
main91511-C0625
91511C0635
main91511-C0635
41 parts on this diagram · 4 diagrams in section
