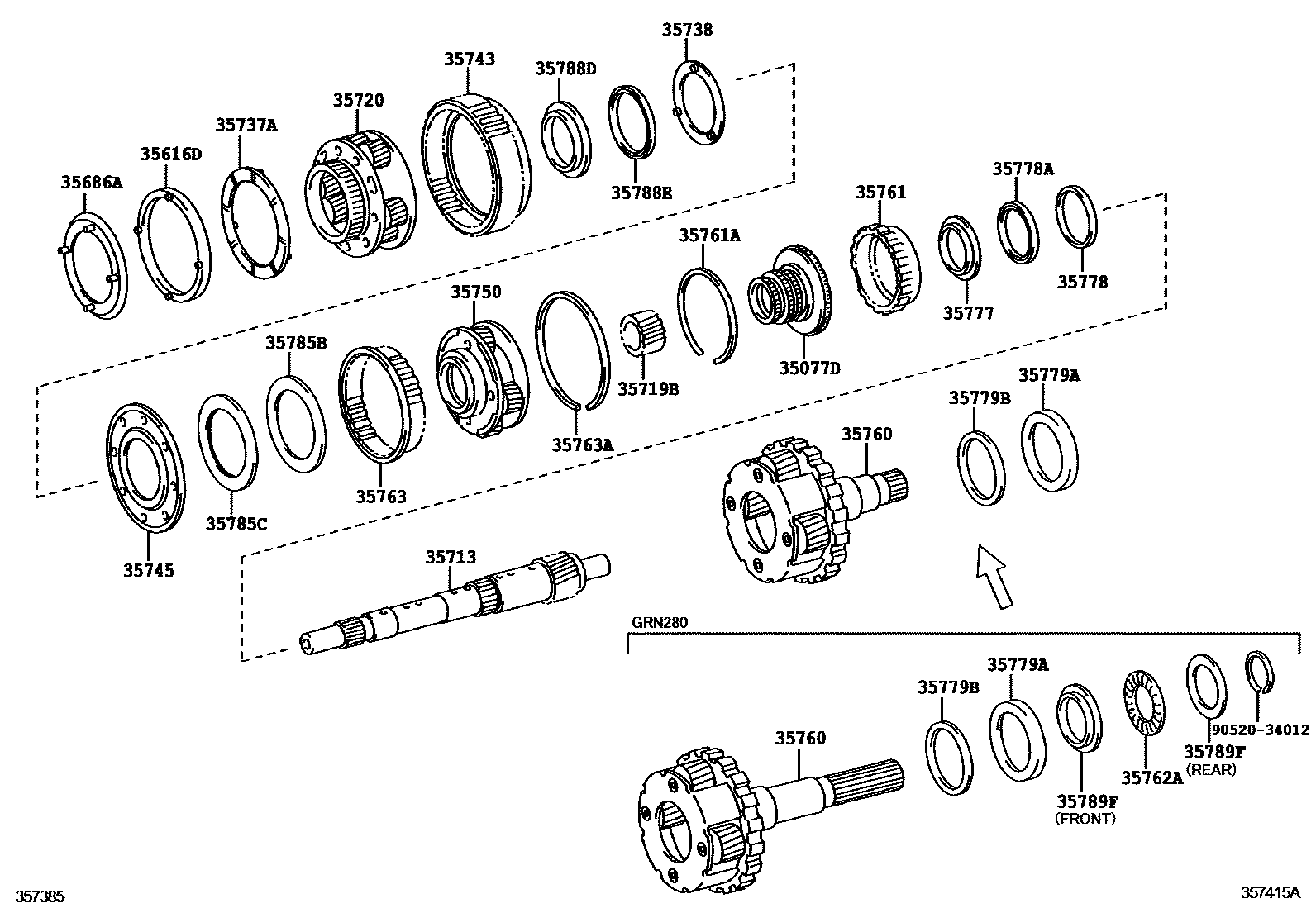

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR
35616DWASHER, CLUTCH DRUM THRUST
35686AWASHER, CLUTCH DRUM THRUST, NO.2
35713SHAFT, INTERMEDIATE
TYPE B:REFER 35-01
TYPE A:REFER 35-01
TYPE B:REFER 35-01
35719BGEAR, PLANETARY SUN
35720GEAR ASSY, FRONT PLANETARY
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35743GEAR, FRONT PLANETARY RING
35745FLANGE, FRONT PLANETARY RING GEAR
35750GEAR ASSY, CENTER PLANETARY
35760GEAR ASSY, REAR PLANETARY
TYPE B:REFER 35-01
TYPE A:REFER 35-01
TYPE B:REFER 35-01
35761GEAR, REAR PLANETARY RING
(L)
(J)
35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
(J)
(L)
35762FLANGE, REAR PLANETARY RING GEAR
35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)
35763GEAR, CENTER PLANETARY RING
35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)
35777RACE, THRUST BEARING, NO.7
(L)
(J)
35778RACE, THRUST BEARING, NO.8
(L)
(J)
35778ABEARING, THRUST NEEDLE ROLLER
(J)
(L)
35779ARACE, THRUST BEARING, NO.9
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35779BBEARING, THRUST NEEDLE ROLLER
(J)
(L)
35785BRACE, THRUST BEARING, NO.4
35785CBEARING, THRUST NEEDLE ROLLER
35788DRACE, THRUST BEARING, NO.3
35788EBEARING, THRUST NEEDLE ROLLER
35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)
T=3.70,REAR
T=3.80,REAR
T=3.90,REAR
T=4.00,REAR
T=4.10,REAR
T=4.20,REAR
FRONT
T=3.85,REAR
T=3.95,REAR
T=4.05,REAR
T=4.15,REAR
T=4.25,REAR
T=4.30,REAR
T=4.35,REAR
9052034012
main90520-34012
29 parts on this diagram · 2 diagrams in section
