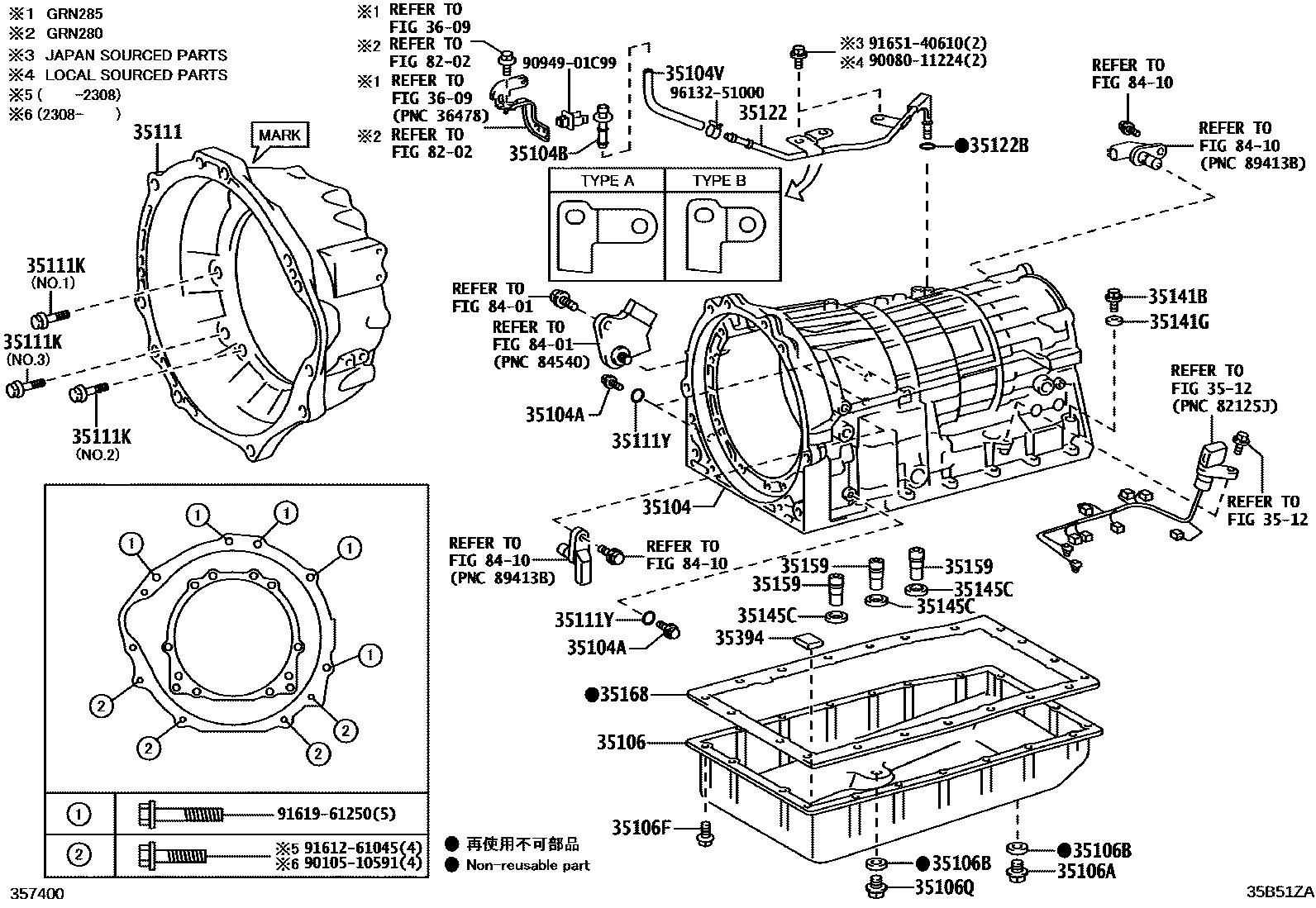

TRANSMISSION CASE & OIL PAN (ATM)
35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION
(L)
TYPE B:REFER 35-01
(J)
TYPE A:REFER 35-01
35104APLUG, AUTOMATIC TRANSMISSION CASE
(J)
(L)
35104BPLUG, BREATHER, NO.1 (ATM)
NO.1
NO.2
35104VHOSE (FOR BREATHER PLUG)
35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
(L)
(J)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
(J)
(L)
35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)
35111HOUSING, AUTOMATIC TRANSMISSION
MARK UB
MARK BH
35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)
*10-1.5PX35-30,NO.1
*10-1.5PX35-30,T/P A:SEE 35-01,NO.1
*10-1.50PX35-29.3,NO.2
*10-1.50PX35-29.3,(J),NO.2
*12-1.75PX38-30,NO.3
*12-1.75PX38-30,(J),NO.3
*10-1.5PX35-29.3,NO.1
*10-1.5PX35-29.3,T/P B:SEE 35-01,NO.1
*10-1.5PX35-29.3,(L),NO.2
*12-1.75PX38-30,(L),NO.3
35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)
3512
35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)
35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)
35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)
35145CGASKET, TRANSAXLE CASE
35159GASKET, BRAKE DRUM
(L)
(J)
35168GASKET, AUTOMATIC TRANSMISSION OIL PAN
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
3609
8202
8401
8410
9008011224
main90080-11224
9010510591
main90105-10591
9094901C99
main90949-01C99
9161261045
main91612-61045
9161961250
main91619-61250
9165140610
main91651-40610
9613251000
main96132-51000
32 parts on this diagram · 2 diagrams in section
