ALTERNATOR

0001 112V 100A,130A 0002 112V 100A

27020ALTERNATOR ASSY

main27060-31180i1GRFE..GRN28#200908-201308

12V 100A

sub27060-31260

main27060-31190i1GRFE..GRN28#200908-202008

12V 130A,ACCESSORY CONNECTOR-12V 120W & AC120V 400W

main27060-31260i1GRFE..GRN28#201308-202108

12V 100A

main27060-31440i1GRFE..GRN28#202108

12V 130A

main27060-31440i1GRFE..GRN28#202008-202108

12V 130A,ACCESSORY CONNECTOR-12V 120W & AC120V 400W

main27060-75460i2TRFE..TRN28#200911-201108

12V 100A

27020FBOLT, NO.1(FOR ALTERNATOR)

main91552-81040i2TRFE..TRN28#200908-201908

27020GBOLT, NO.2(FOR ALTERNATOR)

main91552-81070i1GRFE..GRN28#200908-201908

main91552-81085i2TRFE..TRN28#200911-201108

27039COVER, ALTERNATOR REAR END

main27039-31390i2TRFE..TRN28#200908-201908

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-31430i1GRFE..GRN28#200908-202108

main27310-31670i1GRFE..GRN28#202008-202108

ACCESSORY CONNECTOR-12V 120W & AC120V 400W

main27310-31670i1GRFE..GRN28#202108

main27310-75270i2TRFE..TRN28#200911-201108

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i1GRFE..GRN28#200908-201908

27312PLATE, RETAINER

main27312-72100i2TRFE..TRN28#200908-201908

27330ROTOR ASSY, ALTERNATOR

main27330-30070i1GRFE..GRN28#200908-202108

main27330-33090i1GRFE..GRN28#200908-202108

ACCESSORY CONNECTOR-12V 120W & AC120V 400W

main27330-33090i1GRFE..GRN28#202108

27360COIL ASSY, ALTERNATOR

main27360-31390i1GRFE..GRN28#200908-201308

main27360-31400i1GRFE..GRN28#201001-202008

ACCESSORY CONNECTOR-12V 120W & AC120V 400W

main27360-31430i1GRFE..GRN28#200908-201001

ACCESSORY CONNECTOR-12V 120W & AC120V 400W

main27360-31520i1GRFE..GRN28#201308-202108

main27360-31670i1GRFE..GRN28#202008-202108

ACCESSORY CONNECTOR-12V 120W & AC120V 400W

main27360-31670i1GRFE..GRN28#202108

main27360-75410i2TRFE..TRN28#200911-201108

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i1GRFE..GRN28#200908-201908

main27370-58460i2TRFE..TRN28#200911-201108

27384WASHER

main27384-50030i1GRFE..GRN28#200908-201908

27387INSULATOR, TERMINAL

main27387-20130i2TRFE..TRN28#200908-201908

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W062i2TRFE..TRN28#200911-201108

sub27415-0W063

sub27416-0W050

main27415-0W130i1GRFE..GRN28#200908-201306

sub27415-0W131

main27415-0W131i1GRFE..GRN28#201307-201908

27416CAP, ALTERNATOR PULLEY

main27416-0W020i2TRFE..TRN28#200911-201108

main27416-0W050i1GRFE..GRN28#200908-201908

27446CLIP, ALTERNATOR CORD

main27446-31390i1GRFE..GRN28#200908-201908

1251131040BRACKET, ALTERNATOR, NO.1

main12511-31040

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9151180820

main91511-80820

9415080600

main94150-80600

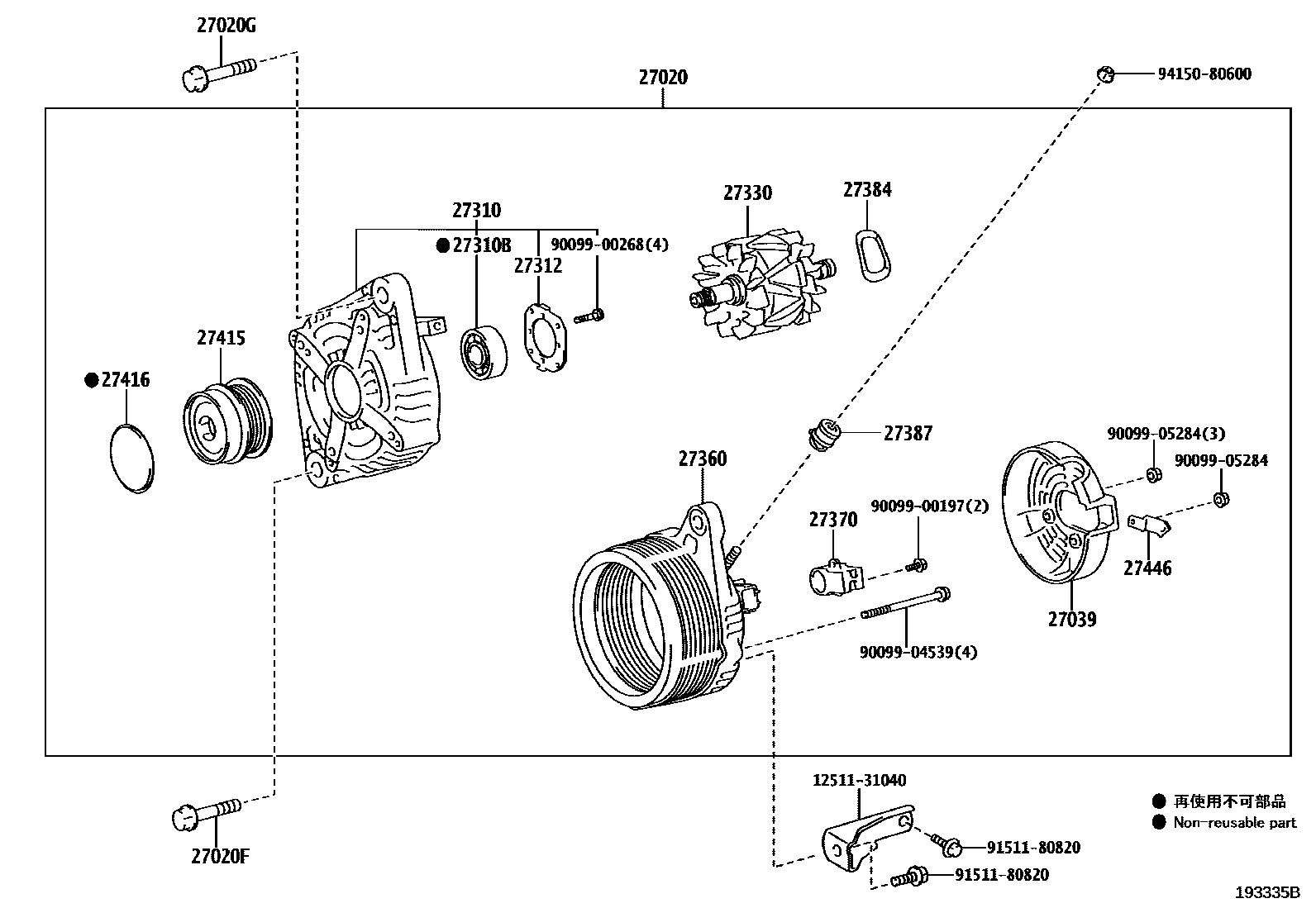

22 parts on this diagram · 2 diagrams in section
