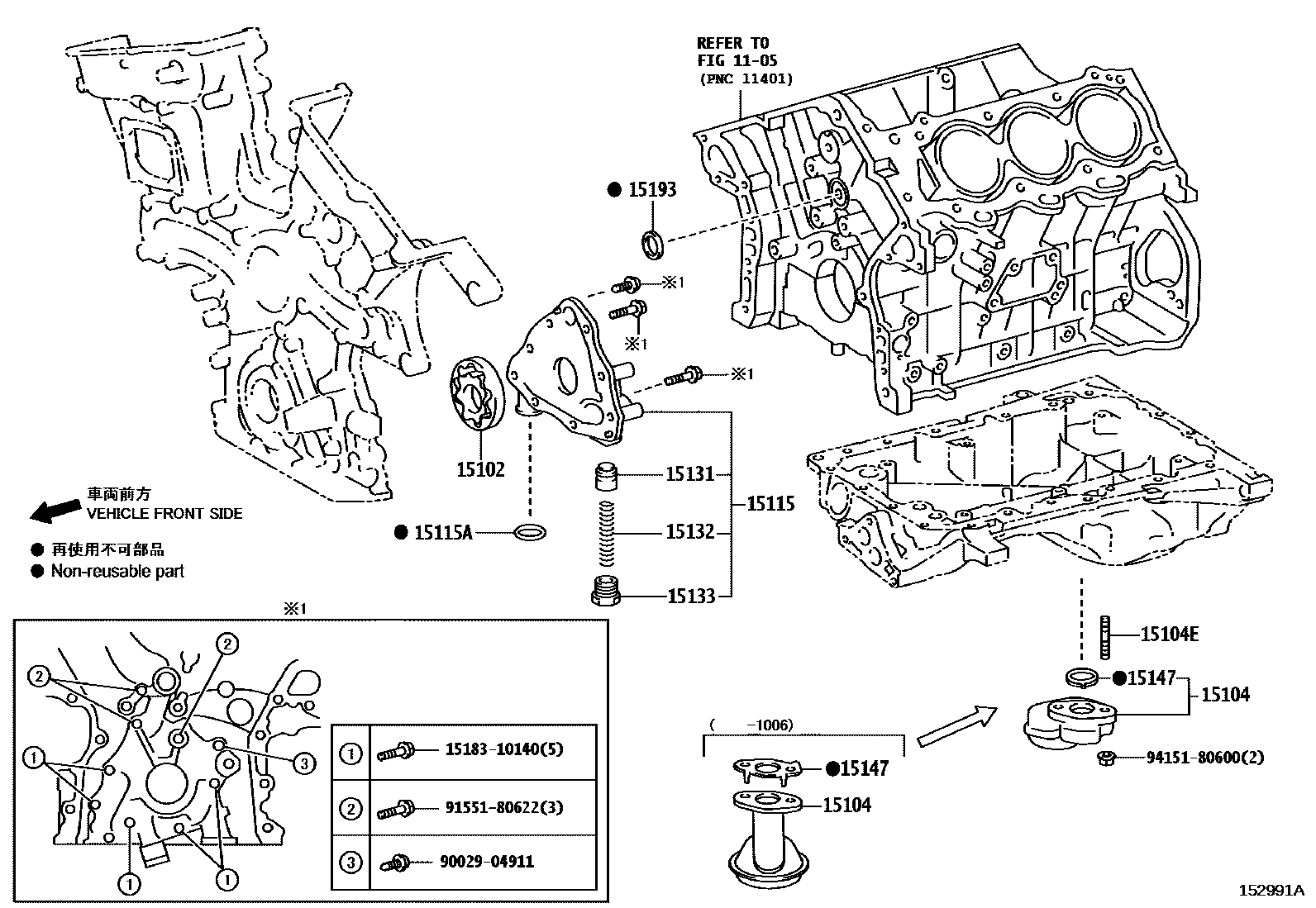

ENGINE OIL PUMP

0001 1 0002 1

1105

15102ROTOR SET, OIL PUMP

main15103-31080i1GRFE..GRN28#200908-201908

15104STRAINER SUB-ASSY, OIL

main15104-31130i1GRFE..GRN28#200908-201006

sub15104-31140

main15104-31140i1GRFE..GRN28#201006-201908

main15104-75120i2TRFE..TRN28#200911-201107

sub15104-75200

sub90126-08052

sub91551-80825

main15104-75200i2TRFE..TRN28#201107-201110

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06029i1GRFE..GRN28#200908-201908

main90126-08037i2TRFE..TRN28#200911-201107

main90126-08052i2TRFE..TRN28#201107-201110

15115COVER, OIL PUMP

main15115-31080i1GRFE..GRN28#200908-201908

15115ARING, O(FOR OIL PUMP COVER)

main96722-24030i1GRFE..GRN28#200908-201908

15131VALVE, OIL PUMP RELIEF

main15131-17010i1GRFE..GRN28#200908-201908

main15131-46040i2TRFE..TRN28#200911

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46020i1GRFE..GRN28#200908-201908

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i1GRFE..GRN28#200908-201908

15147GASKET, OIL STRAINER

main15147-31070i1GRFE..GRN28#201006-201908

main15147-46010i1GRFE..GRN28#200908-201006

main15147-75030i2TRFE..TRN28#200911-201107

15193GASKET, OIL PUMP

main15193-38010i1GRFE..GRN28#200908-201908

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140

9002904911

main90029-04911

9155180622

main91551-80622

9415180600

main94151-80600

15 parts on this diagram · 2 diagrams in section
