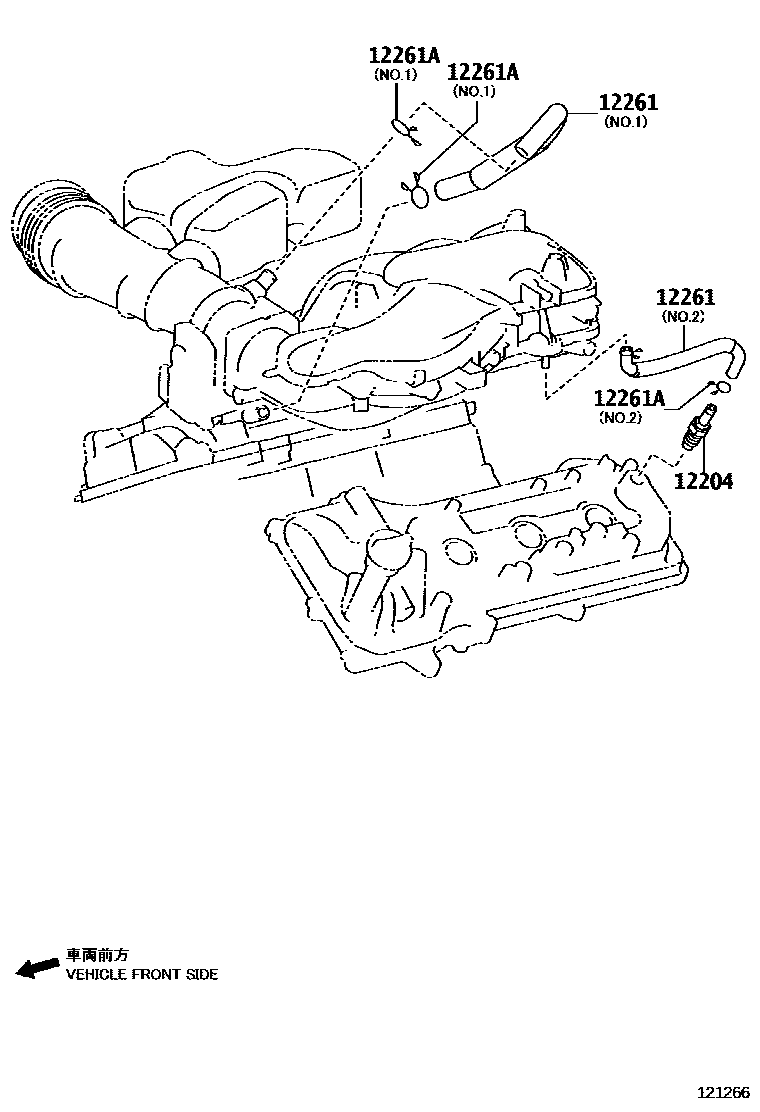

VENTILATION HOSE

0001 1 0002 1

12204VALVE SUB-ASSY, VENTILATION

main12204-0C010i2TRFE..TRN28#200911

main12204-31110i1GRFE..GRN28#200908-201908

12261HOSE, VENTILATION

main12261-31130i1GRFE..GRN28#200908-201908

NO.2

main12261-31140i1GRFE..GRN28#200908-201908

NO.1

main12261-75100i2TRFE..TRN28#200911

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14001i2TRFE..TRN28#200911

main90467-14017i1GRFE..GRN28#200908-201908

NO.2

main90467-21004i1GRFE..GRN28#200908-201908

NO.1

3 parts on this diagram · 2 diagrams in section
